Arkel ADrive Size-B - ADrive Size-D Physical Dimensions

ARKEL Elektrik Elektronik Ltd. Şti. www.arkel.com.tr
08.2012
ADrive
10

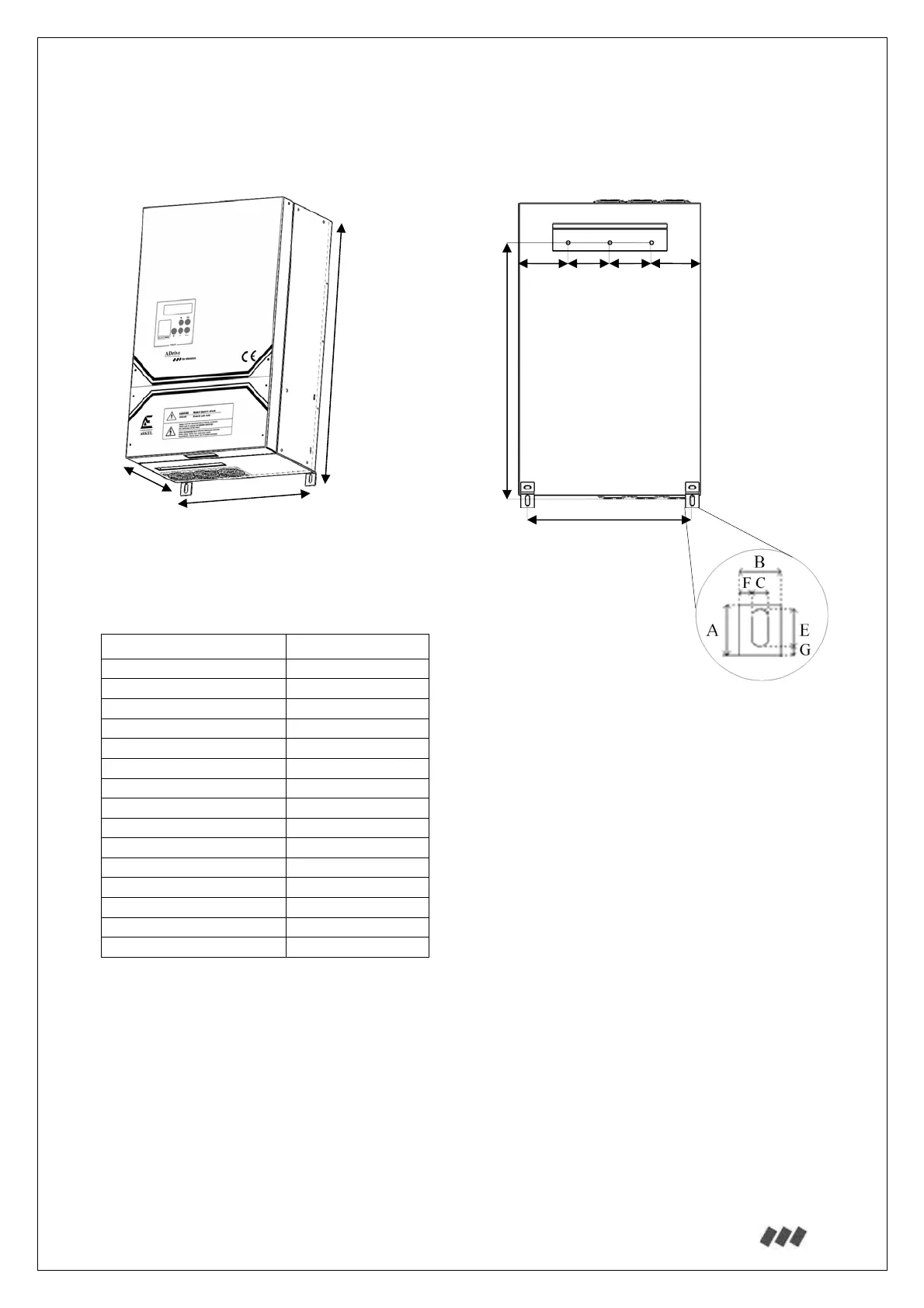

7.2. Physical Dimensions of ADrive Size-D
Dimensions (mm) ADrive Size-D
W 350
H 590
D 236,5
H1 495
W1 316
A 30
B 24
C 8
E 18
F 8
G 8
I 95
J 80
K 80
L 95
ADrive Size-D (50HP)
H
W
D
W1
H1
I
J
K
L
