ARKEL Elektrik Elektronik Ltd. Şti. www.arkel.com.tr
08.2012
ADrive
11

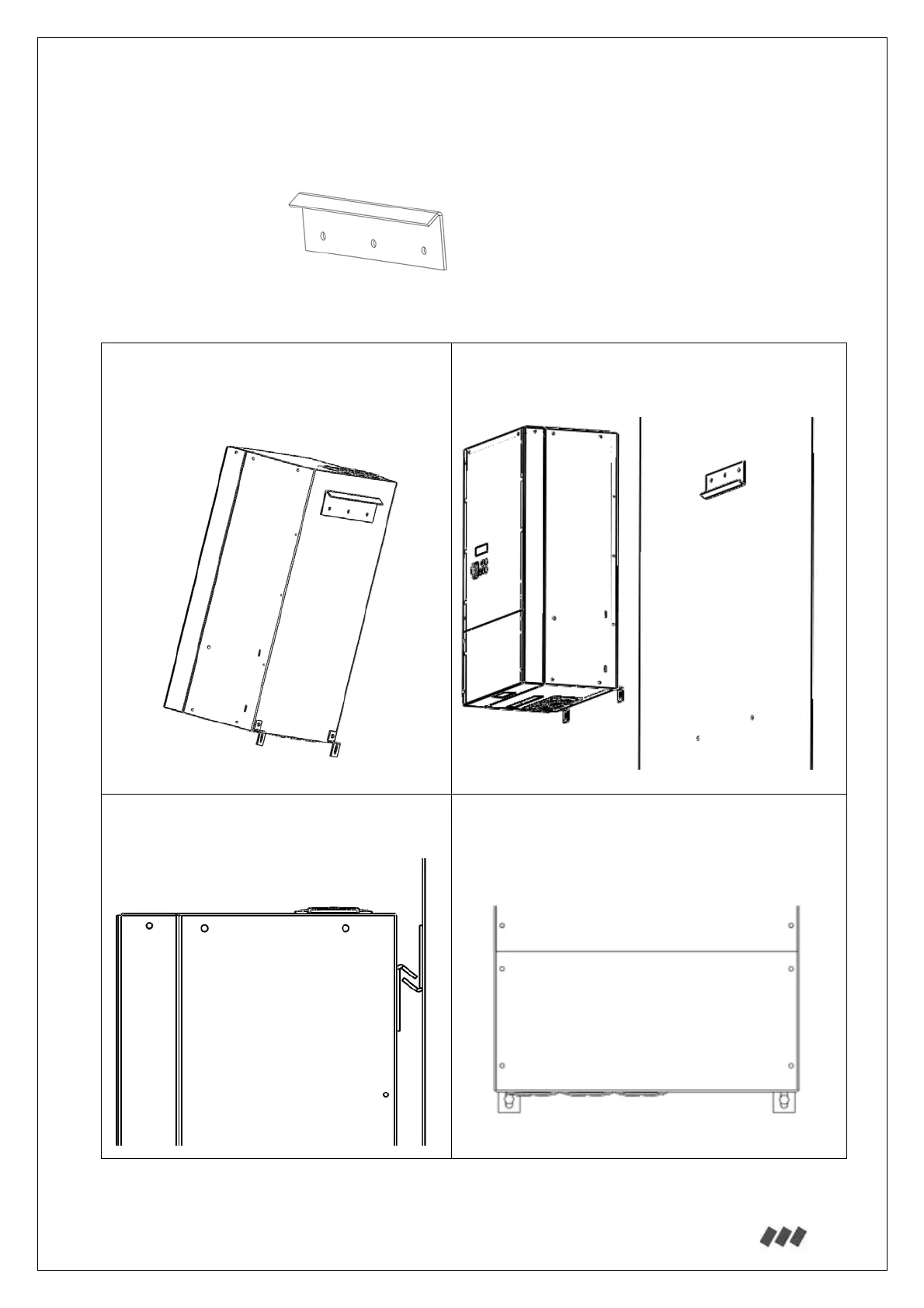

7.2.1 Mounting of ADrive Size-D
Unlike ADrive Size-B and Size-C, ADrive Size-D has 2 mounting brackets while mounting.
For mounting the device ADrive Size-D, follow the steps below:
Step 1: Screw one of the mounting devices
and fastening brackets as shown in the
figure.
Step 2: Screw the other mounting device to
control panel as shown.
Step 3: Hang ADrive Size-D to the
mounting device on the control panel.
Step 4: Mount the device to control panel from
two fastening brackets at the bottom of ADrive
Size-D.
Size-D mounting device
