ADrive
37

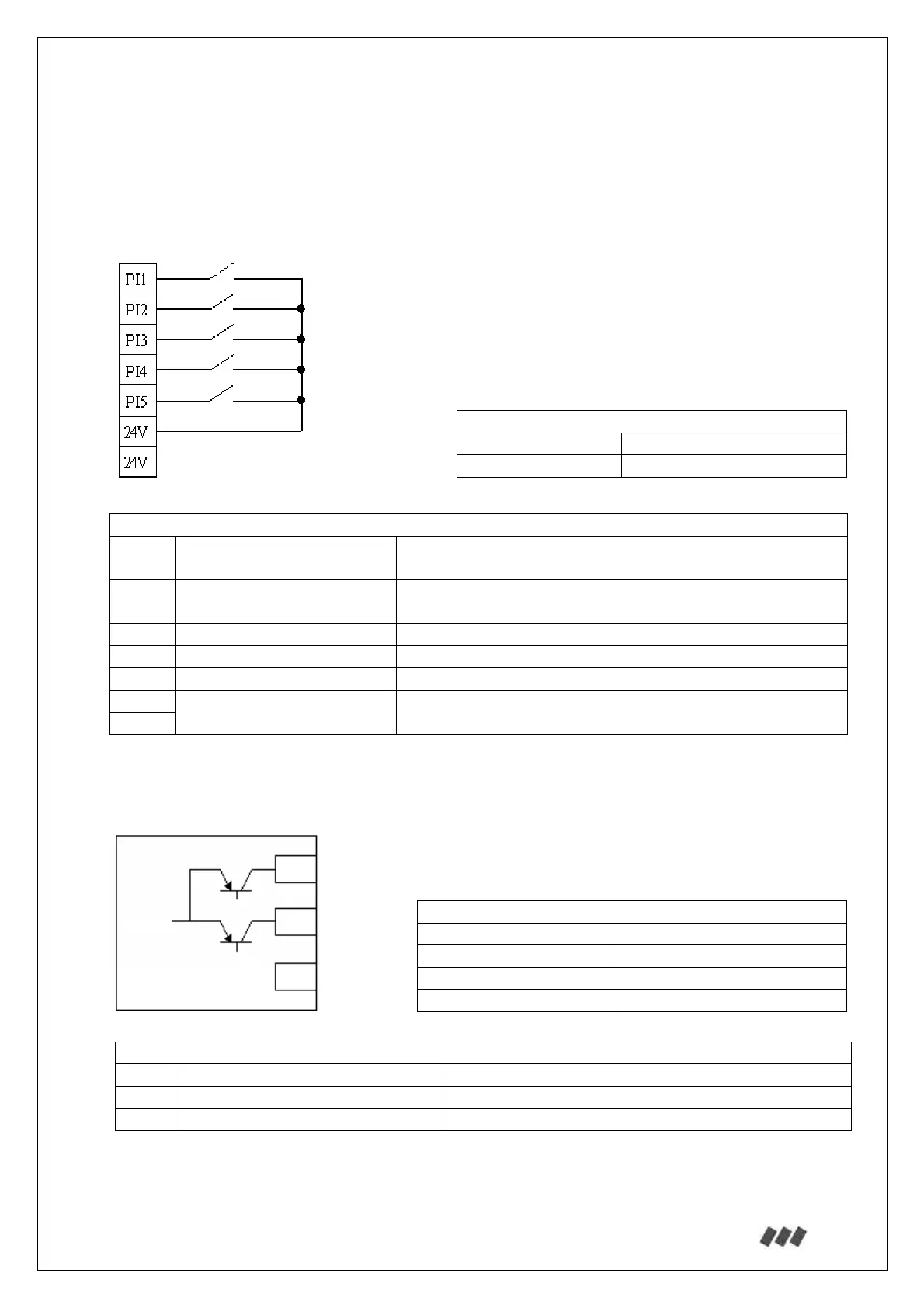

13.2.10. Inputs/Outputs on ENCABIT-Plus module
ENCABIT-Plus module provides an absolute encoder connection as well as 5 digital inputs and 2
transistor outputs. Inputs and outputs are reserved for functions required for synchronous drives.
12.2.10.1. ENCABIT-Plus digital inputs:
ENCABIT-Plus digital input terminals
PI1 Input 1
Mechanical brake release monitoring
(Can be activated in the menu)
PI2 Input 2
Motor & brake resistor temperature monitoring
(Can be activated in the menu)
PI3 Input 3 Manual evacuation mode activation input
PI4 Input 4 Reserved input
PI5 Input 5 Reserved input
24V
+24Vdc reference voltage Reference voltage for digital inputs
24V
13.2.10.2. ENCABIT-Plus transistor outputs:
ENCABIT-Plus transistor output terminals:
PO1 Transistor output 1 Reserved output
PO2 Transistor output 2 Reserved output
GND OVdc Common of transistor outputs
Digital input specifications:
Max. voltage 26Vdc
Clamping range Max. 1,5 mm
2
Transistor output specifications:
Output type Open collector
Output voltage 24VDC
Overload protection Max. 200mA per output
Clamping range Max. 1,5 mm
2
+24Vdc, max. 100mA
+24V
PO1
PO2
GND
