ADrive

CI1

CI2

+24V

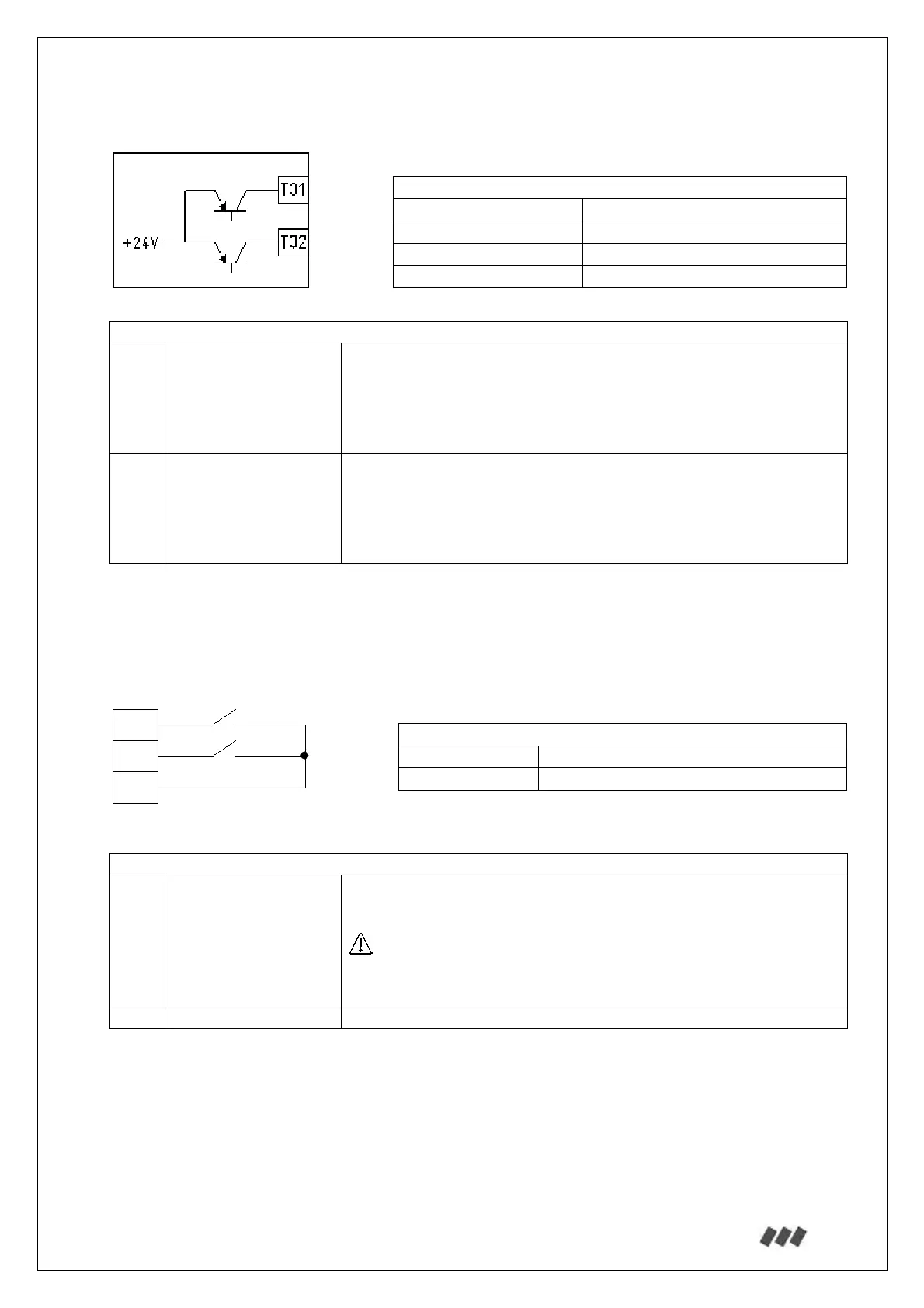

13.2.2.2. Additional transistor outputs:

Additional transistor output terminals:

TO1 Additional transistor

output 1

Lower load direction (with lowest power consumption). This

output is renewed during each brake releasing.

TO1 = 24V: Direction UP (Car is lighter than counterweight)

TO1 = Open: Direction DOWN (Car is heavier than counterweight)

TO2 Additional transistor

output 2

V < 0,3 m/s. This output can be used for interlocking during run-

in with open doors.

TO2 = 24V: V < 0,3 m/s

TO2 = Open: V >= 0,3 m/s

Note: 0 or -24V terminals on ADrive processor board may be used as common (GND) of

additional transistor outputs.

13.2.2.3. Additional digital inputs:

Additional input terminals:

CI1 Additional input 1

Activation input for battery operation. When 24Vdc is applied to

this input, inverter goes into battery operation mode.

This input must not be activated when the 3-phase AC supply

is connected to inverter. For more information about battery-

operated evacuation see section 13.3.

CI2 Additional input 2 This input is reserved for future use.

Note: Additional inputs (CI1, CI2) and outputs (TO1, TO2) are available in version V2.5 and

higher of processor board.

Transistor output specifications:

Output type Open collector

Output voltage 24VDC

Overload protection Max. 200mA per output

Clamping range Max. 2,5 mm

Digital input specifications:

Max. voltage 26Vdc

Clamping range Max. 2,5 mm

24Vdc internal su
