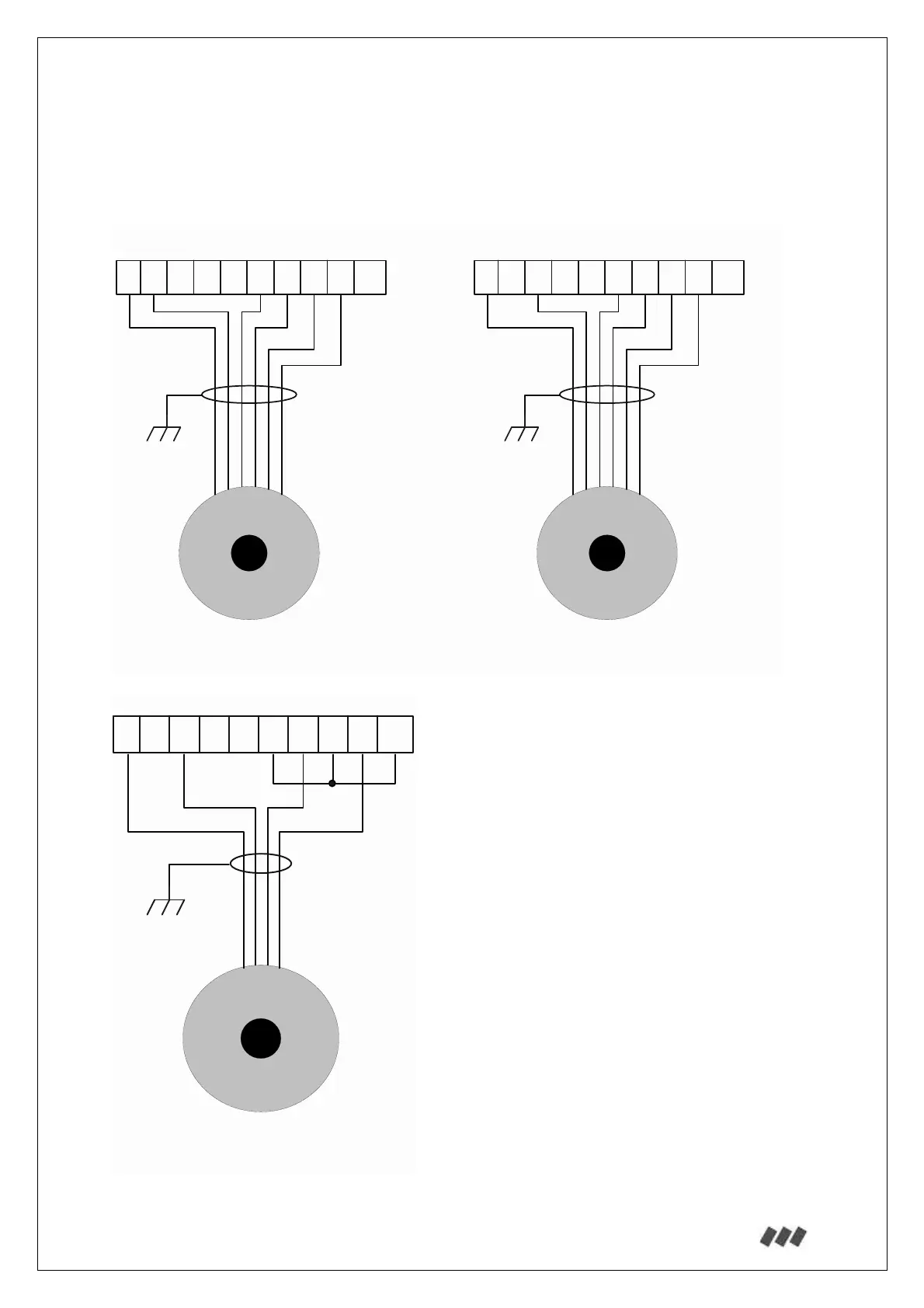

13.2.3.2. Incremental encoder connection examples:
Below in the connection diagram, most of commonly used encoder types are shown. Please
contact authorized seller for different types of encoder. Also the electrical diagram of encoder
input circuit will help to arrange different types of encoder.
OA OB
A A B B JP
+15
_ _
+5
0V
5V TTL ENCODER
OA OB
A A B B JP
+15
_ _
+5
0V
12-24V HTL ENCODER
WITH COMPLEMENTAL OUTPUTSWITH COMPLEMENTAL OUTPUTS
OA OB
A A B B JP
+15
_ _
+5
0V
12-24V HTL ENCODER
WITH SINGLE OUTPUTS
