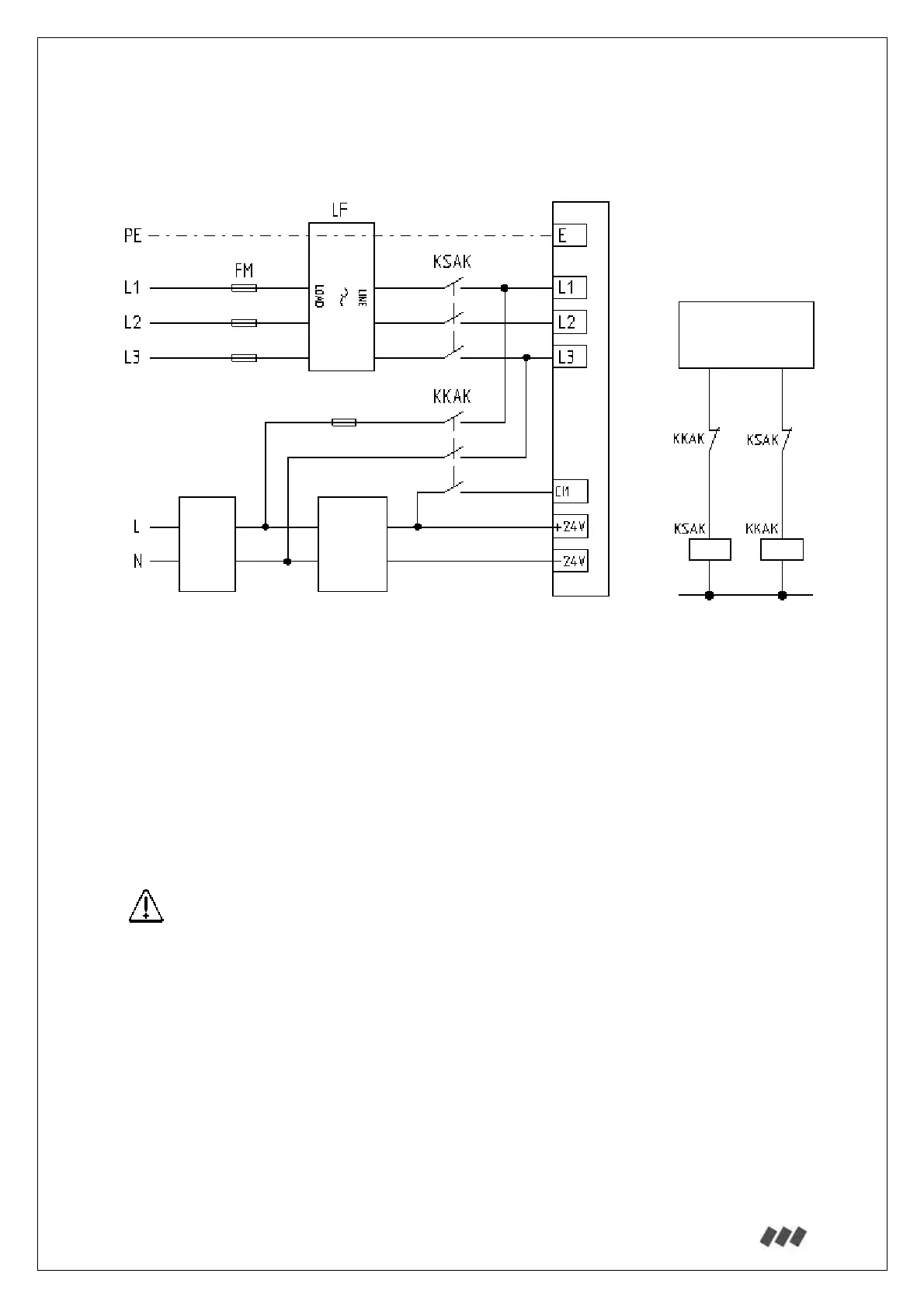

13.3.5.2. With UPS Supply:
UPS must be connected to the input terminals L1 and L3.
FM: Mains fuse
LF: Line filter
UPS: 1-phase 220Vac uninterruptible power supply
LCS: Lift control system
FUPS: UPS fuse
KSAK: Mains supply contactor
KKAK: Battery supply contactor
*1: Contactor KSAK and KKAK must be interlocked.
*2: Activation of for battery operation (CI1 input).
See Section 6 for appropriate fuse, contactor and cable cross-section.
*1
LCS
ADrive
UPS
*2
LCS
+24V
-24V
FUPS
