Rev D CHP Max5000 Chassis (Rear Fiber Version) 2-7
Module Locations

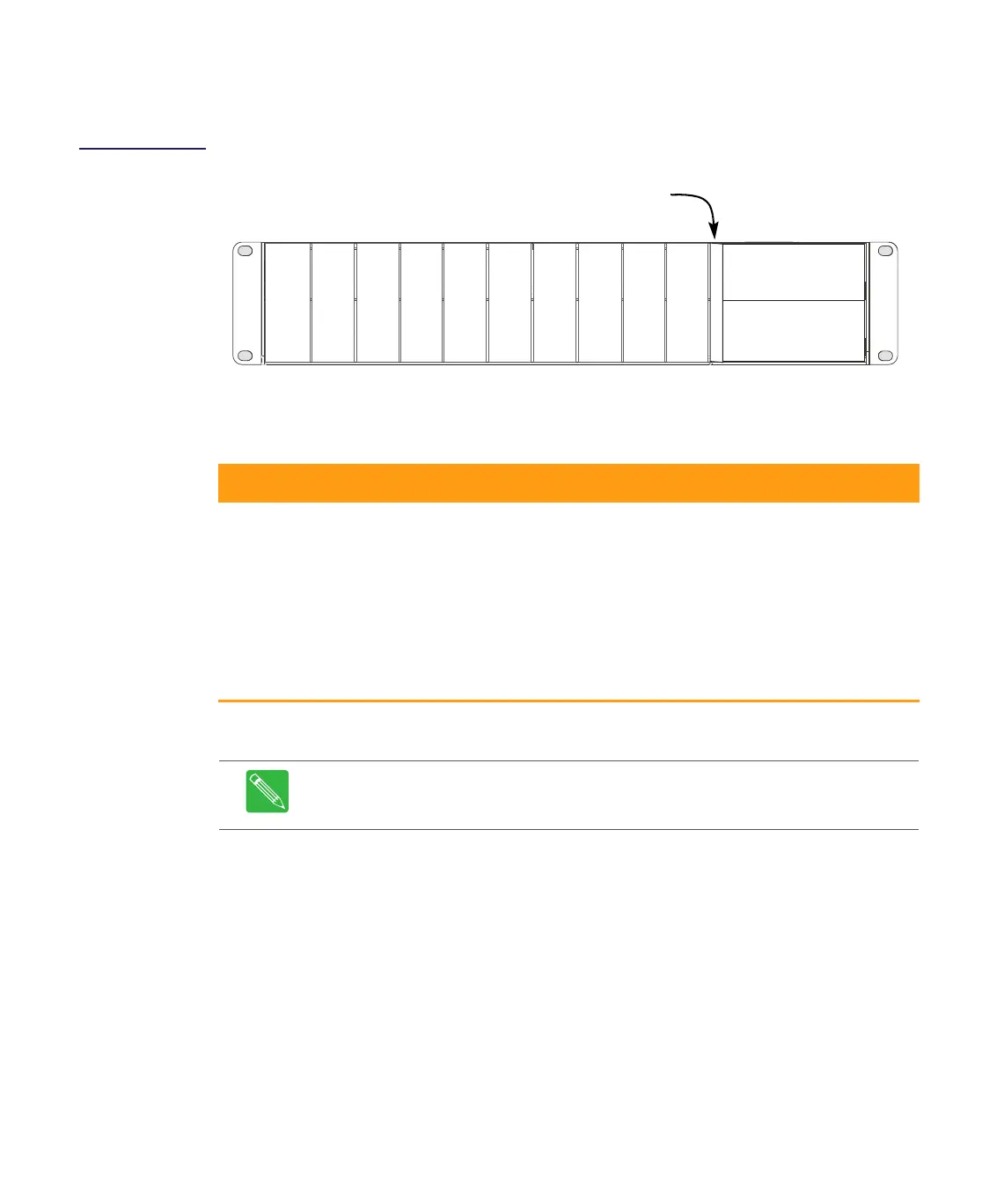

Figure 2.3
CHP Module
Locations
Table 2.5 CHP Max Module Locations
Location Description
Application Module The application modules can be installed in any of the ten application module
slots. Most application modules fit into a single module slot. The externally
modulated forward transmitter module needs two slots and EDFA modules
may require up to three slots.
Power Supply
Module
One CHP Max power supply module fits into each slot. Total of two slots.
Management
Module
Craft Management Module (CMM or CMM-1) — virtual slot 14 or
System Management Module (SMM or SMM-1) — virtual slot 15 slides into this
slot.
Note ARRIS recommends using a 475 Watt power supply rather than a 250 Watt
power supply if a chassis will be fully populated with CORWave II (CHP-C2-)
transmitter modules.
Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6 Slot 7 Slot 8 Slot 9
Slot 10
PS Slot 1
PS Slot 2
(Slot 11)
(Slot 12)
Application Module Slots (10) Power Supply Slots (2)
Management Module Location
CMM or CMM-1 (slot 14)
SMM, SMM-1, or SMM-2 (slot 15)
Front View
