1508685 Rev D CHP Max Element Management Modules CHP-CMM, CMM-1, SMM, and SMM-1 6-35

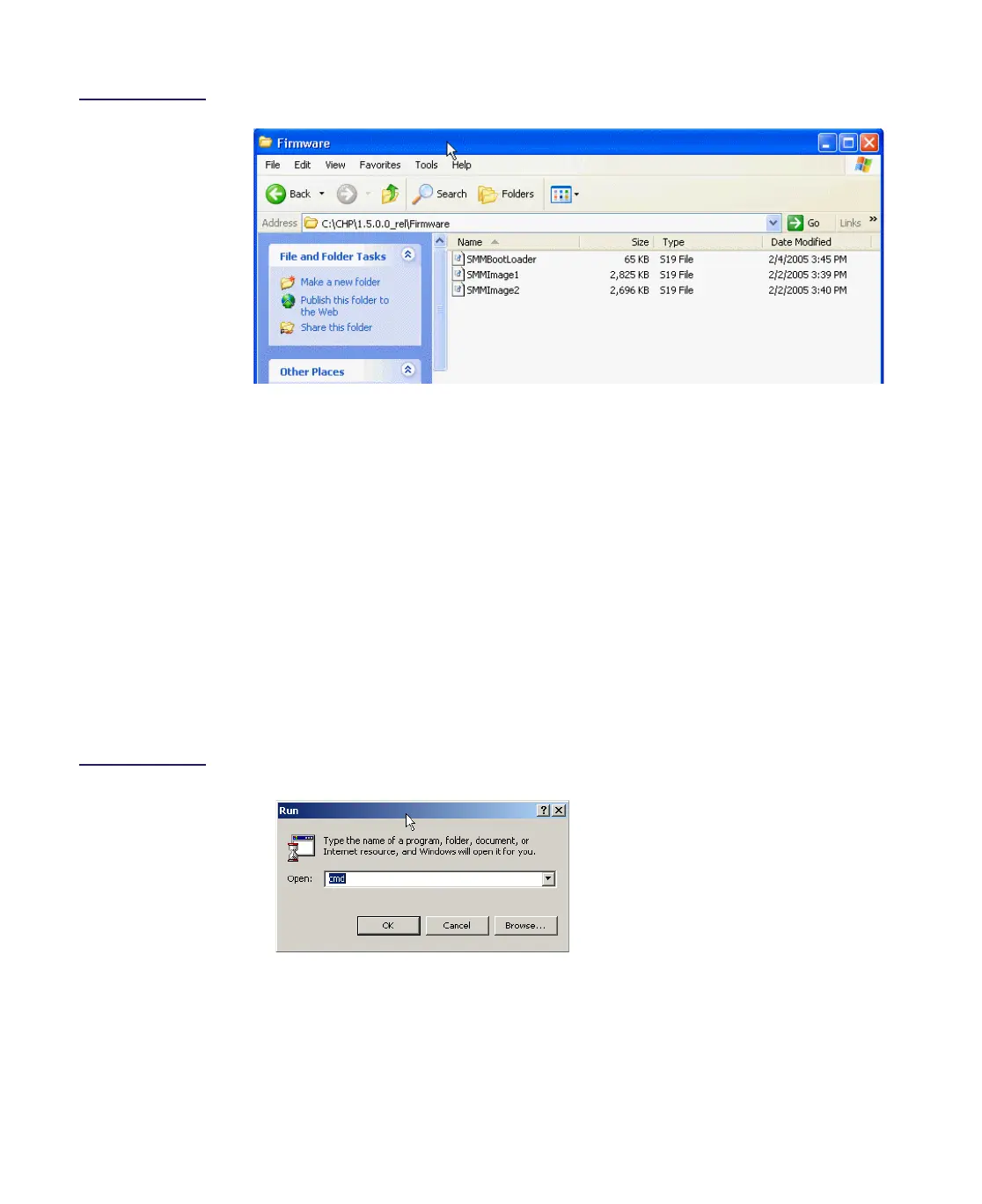

Figure 6.24
Directory Structure
to Store the System
CD Files
Using FTP to Download the SMM Images
In SMM Version 1.1, the option to use the File Transfer Protocol (FTP) was added. The
following instructions are for systems that are running SMM Version 1.1 or higher. The SMM
Version 1.1 provides both the FTP download function and the standard HMS download
function. The standard HMS method uses SNMP commands to talk to the SMM. FTP uses a
different set of commands to talk to the SMM. Some firewalls will prevent FTP from passing
through the network for security reasons, others might not allow SNMP packets. SMM
Firmware version 1.8.0.0 only provides the files for use with FTP. If you must perform an
SNMP download, contact a ARRIS representative for instructions, or reference the Omni2000
manual.
1. From any PC, a DOS command tool window can be opened (
Start > Run and type cmd)
to initiate a Telnet command or an FTP command. Most systems have the function
to FTP files from the computer to another device on the Local Network. If FTP does
not function on your computer, contact your network administrator to have it
turned on.
Figure 6.25
Opening a DOS
Command Window
2. In the open DOS command window, use the “cd” command to get to the directory
where the files to be downloaded to the SMM are located. The files shown in
Figure 6.26 on page 6-36 are in a directory named Firmware, which have been
previously copied from the CHP-CMS-1 System CD-ROM.
