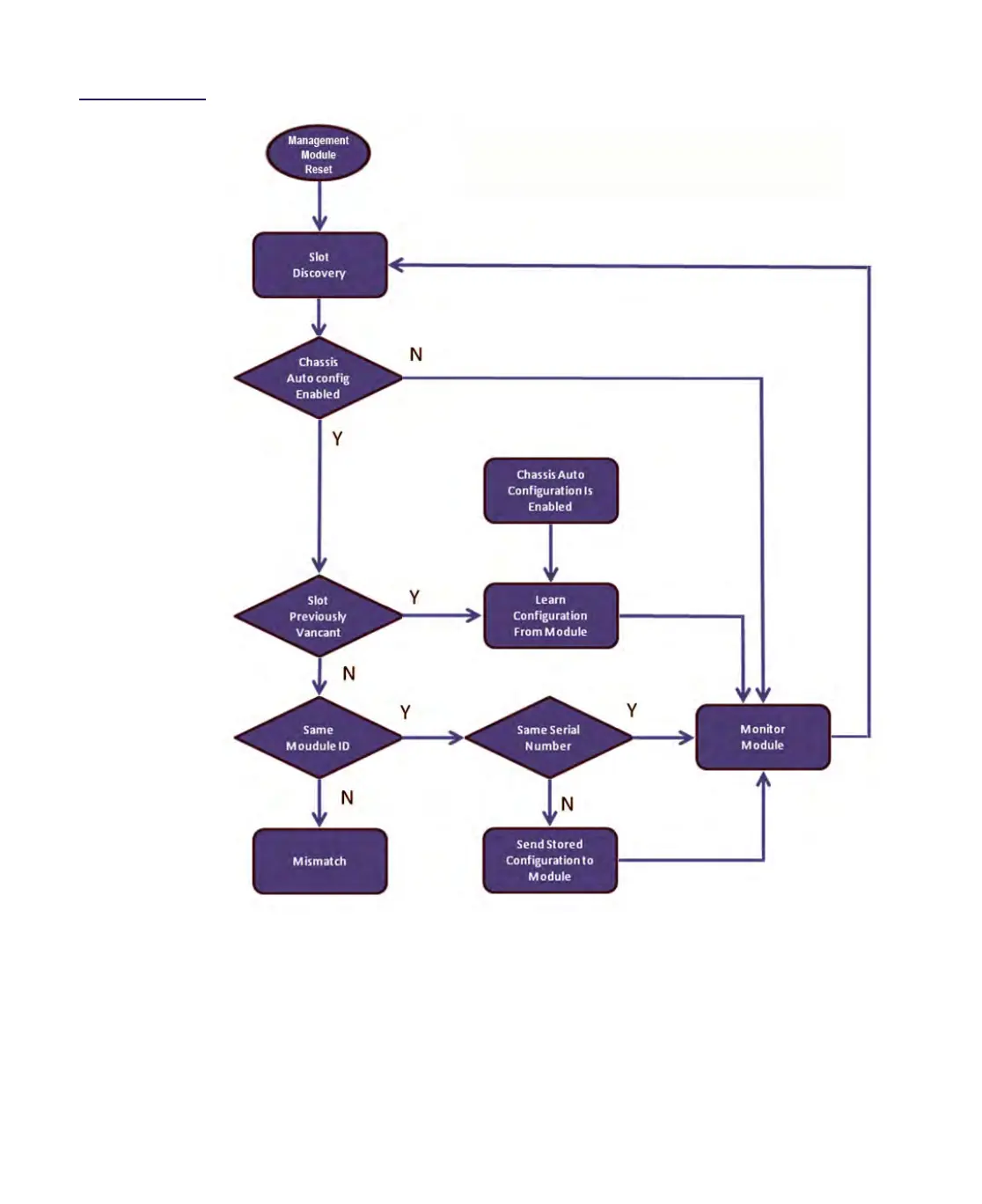

Figure 7.1
Auto-configuration
States
Remote Monitoring
The CHP Max SMM-2 (SNMP agent) enables monitoring and management of CHP Max
equipment by communicating with an SNMP element manager with an appropriate
configuration of IP addresses and management information bases (MIBs).
Management signals enter the SMM-2 module through the Ethernet port on the chassis rear
panel (refer to Figure 1.2 on page 1-5). The SMM-2 directs the management signals to the
appropriate application module.
