Connecting Your DCX Set-top

Connecting an SDTV and VCR/DVD Recorder

1. Connect an RF (coax) cable to the RF OUT connector on the DCX set-top and the

Cable/Antenna IN input connectors on the VCR/DVD recorder.

2. Connect a stereo audio cable to the audio L/R output connectors on the VCR/DVD recorder

and the audio L/R input connectors on the Standard-Definition TV (SDTV).

3. Connect a composite video cable to the composite video output connector on the VCR/DVD

recorder and the composite video input connector on the Standard-Definition TV (SDTV).

Note: You can also connect the TV to the VCR/DVD using the S-Video connectors (not shown) or RF

(coax) cable if supported by your VCR/DVD recorder and SDTV.

These video connection methods do not support HD video. If you have an HDTV, see Connecting an

HDTV — Single Connection for Video/Audio.

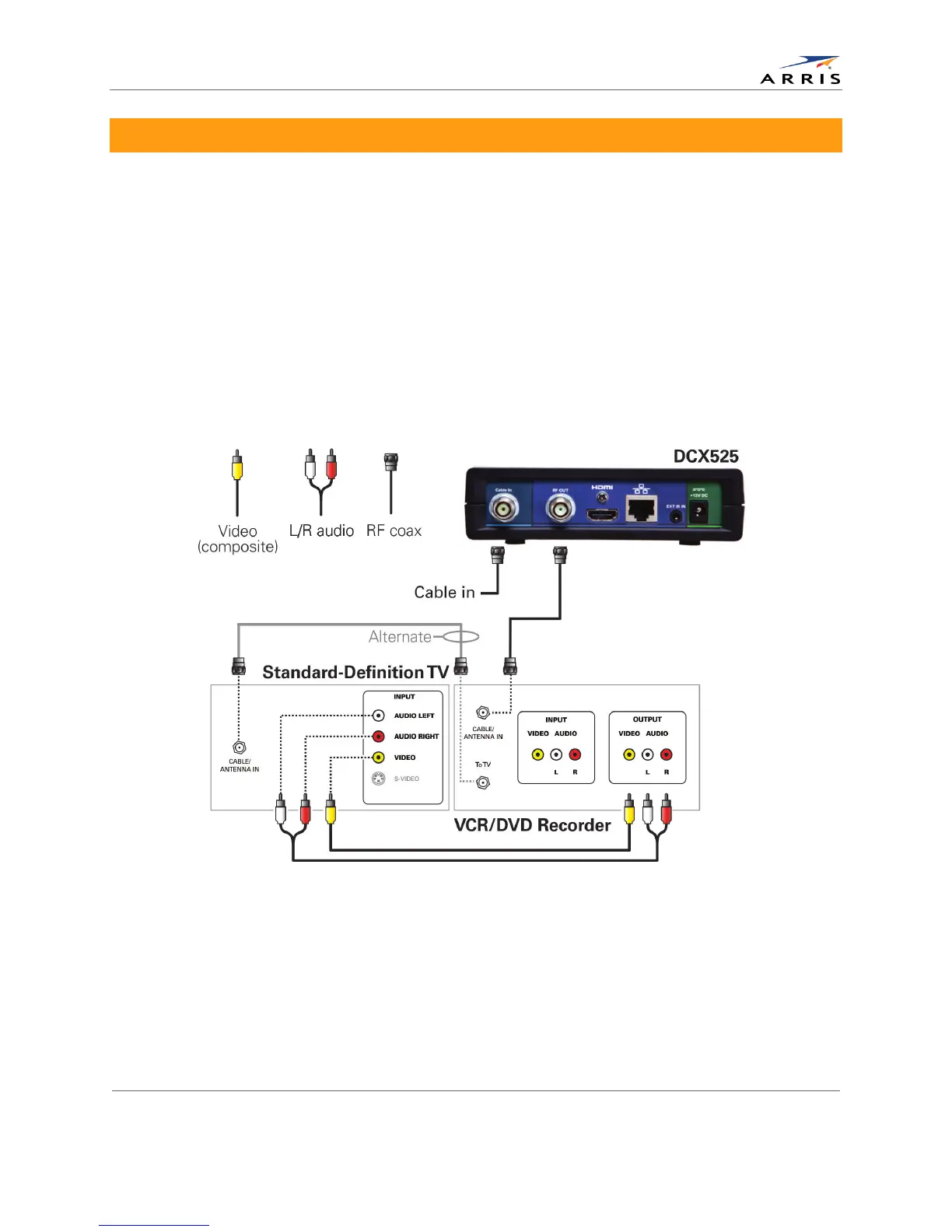

Figure 5: Connecting an SDTV and VCR/DVD Recorder

All-Digital, High-Definition Set-top DCX525 • User Guide 9
