Chapter 6: Using the Data Gateway
Indicator Lights for the DG1680

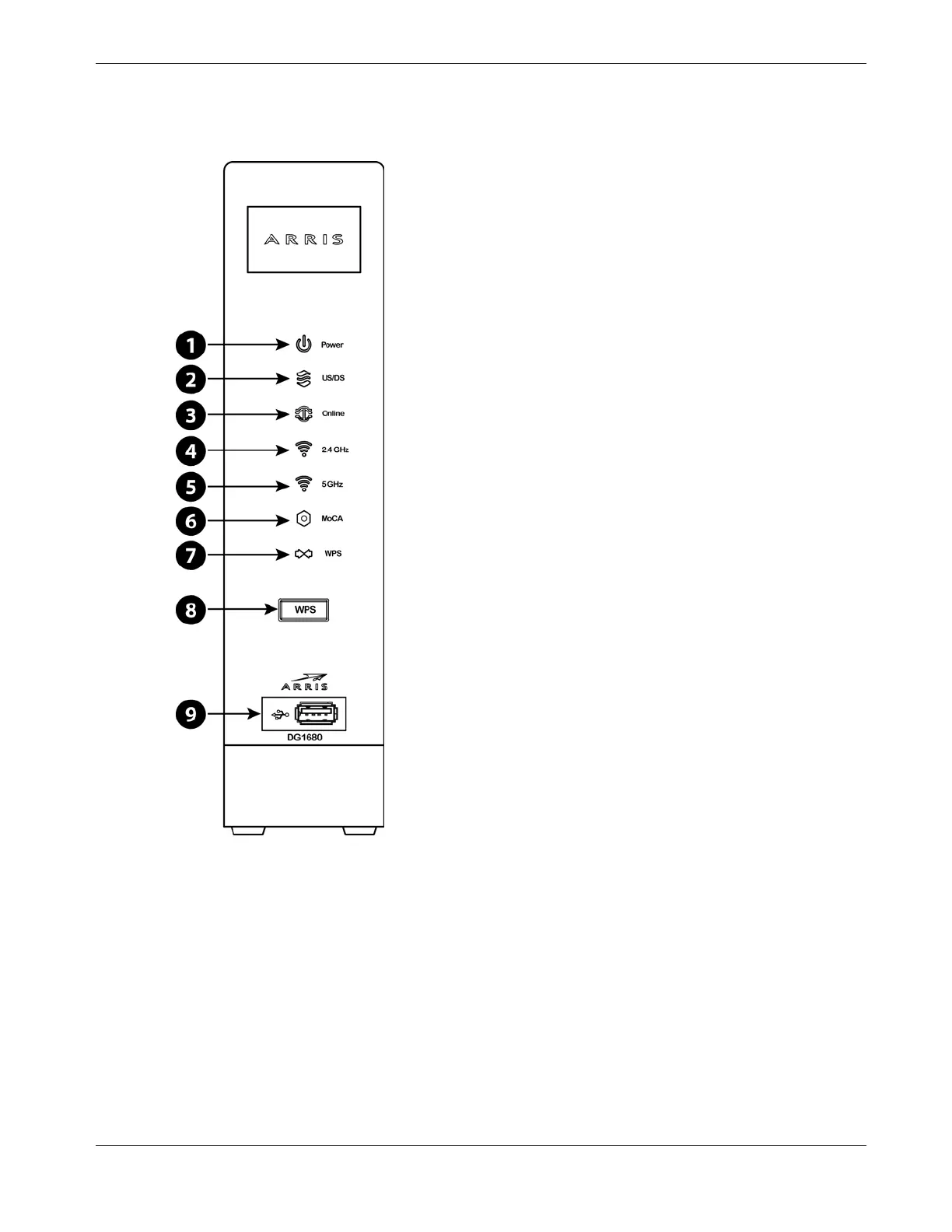

The Data Gateway has LED indicator lights to assist in troubleshooting.
1. Power
2. US/DS
3. Online
4. 2.4 GHz WiFi
5. 5 GHz Wi-Fi
6. MoCA
7. WPS
8. WPS Button
9. USB port
Patterns: Normal Operation (LAN)
The following table shows light patterns for the Ethernet, MoCA and wireless LANs during
normal operation.
Release 16 STANDARD 1.3 March 2015 Touchstone DG1680 Data Gateway User Guide 30
