Chapter 4: Installing and Connecting your Data Gateway

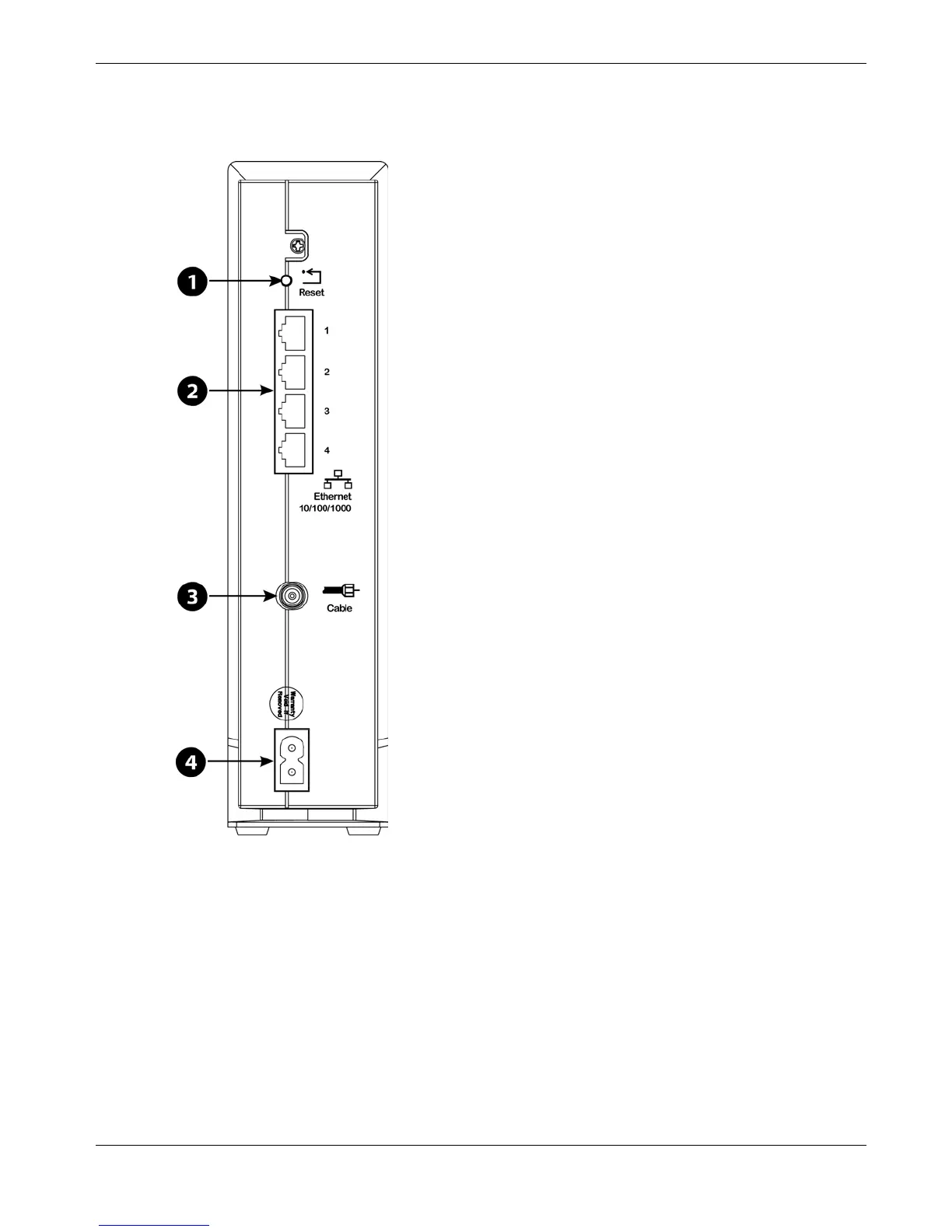

Rear Panel
The rear of the Data Gateway has the following connectors and controls.
1. Reset button: resets the Data Gateway as if you power cycled the unit. Use a pointed
non-metallic object to press this button.
2. Ethernet (1 - 4): connectors for use with a computer LAN port.
3. Cable: connector for the coaxial cable.
4. Power: connector for the power cord.
Selecting an Installation Location
There are a number of factors to consider when choosing a location to install your Data
Gateway:
Release 24 STANDARD 1.1 February 2015 Touchstone DG2460 Data Gateway User Guide 18
