Cable and Connector Pinouts
Telephone
Connector Pinouts
The Telephone connector provides 8 or 12 lines of POTS (2-wire) tele-

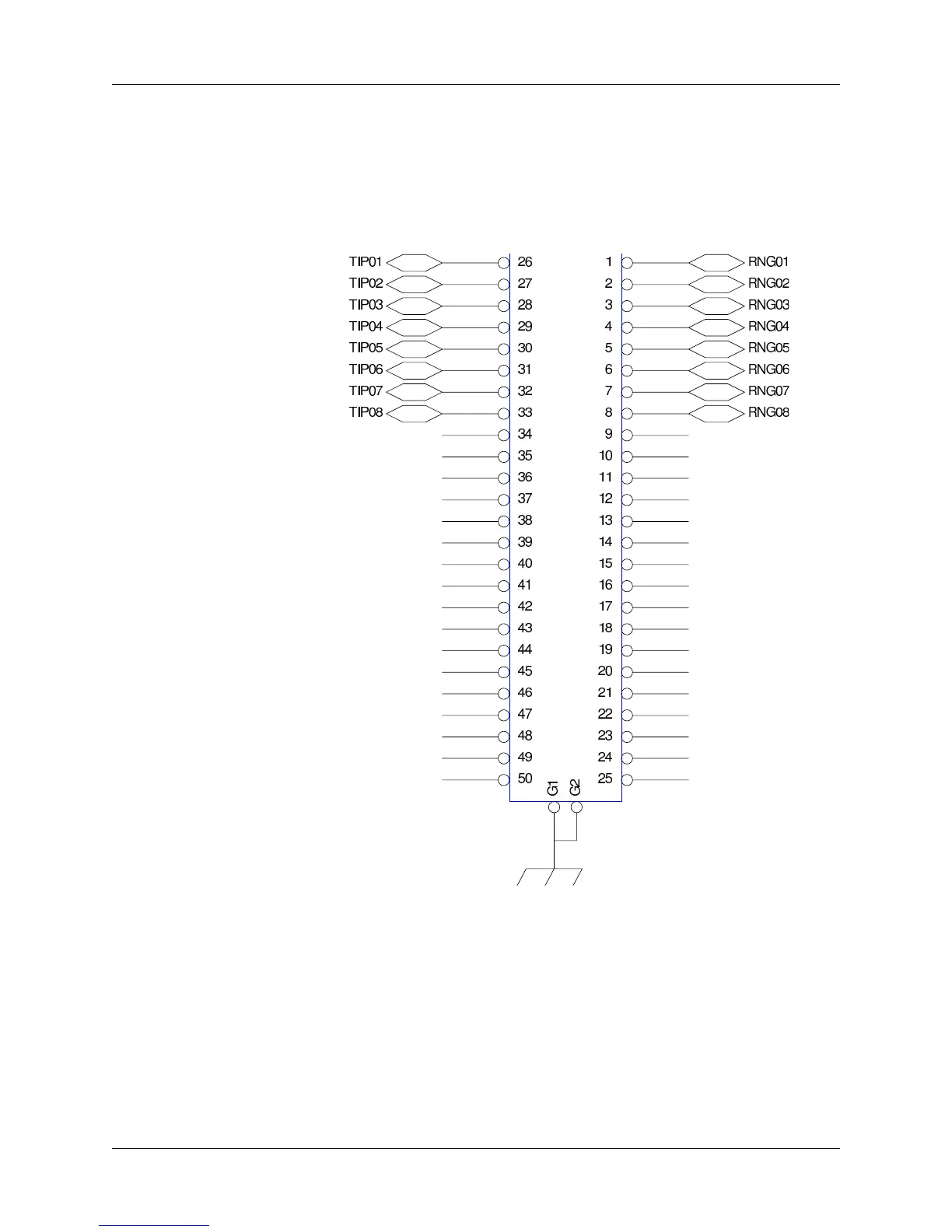

phone service. The following diagram shows the pinout of the RJ21X
telephone connector.
Telemetry Block
Pinouts
The Telemetry block provides an interface between the signals from an
AC power supply with battery backup and the Telephony Modem net-
