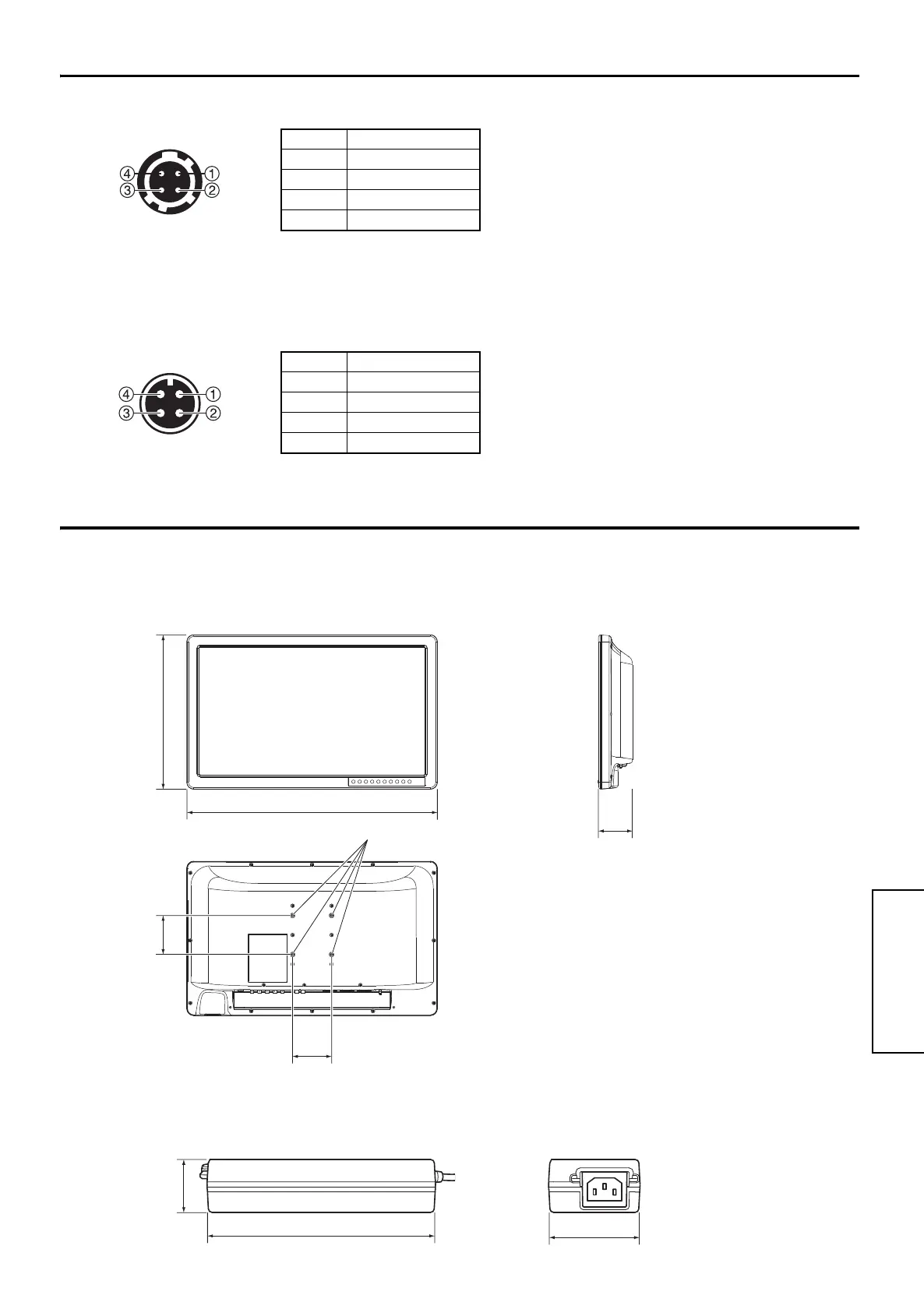

■ Pin assignment and signal name of Monitor DC OUT terminal
■ Pin assignment and signal name of AC adaptor DC OUT terminal
Dimensional Figure
■ LCD monitor
■ AC adaptor
Pin No. Signal name
a
GND
b
NC (no connection)
c
NC (no connection)
d
DC 5 V
HIROSE P/N : HR10A-7R-4S(74)
Recommended Plug is as below.
HIROSE P/N : HR10A-7P-4P(74)
Pin No. Signal name
a
GND
b
GND
c
DC 24 V
d
DC 24 V
643 (25.3)
396 (15.6)
87
(3.4)
100
(3.9)
100
(3.9)
Front
Side
Rear
Screw holes
Unit: mm (inch)
160 (6.3) 64 (2.5)
37
(1.5)
