12
Location of Controls — Continued
a DC IN terminal
Connects the DC cord.
b VIDEO input terminal (BNC type)
Connects devices having VIDEO output terminals.
c Y/G input terminal (BNC type)
Connects devices having Y for output component
(luminance), or devices having G for RGB component.
d PB/B input terminal (BNC type)
Connects devices having PB/CB (blue differential) for
component output, or devices having B for RGB output.
e PR/R input terminal (BNC type)
Connects devices having PR/CR (red differential) for
component output, or devices having R for RGB output.
f SYNC input terminal (BNC type)
When the monitor is operated externally synchronized,
connects devices having C.SYNC standard signal output.
g GPI input terminal (D-sub 9pin)
By assigning functions to each terminal, the monitor can
be controlled by external devices. Connects to GPI
supported external devices.
h RS-232C terminal (D-sub 9pin)
Controls the monitor connecting to PCs.
Input switching and various adjustments are possible from
connected external devices.
i HD15 input terminal (mini D-sub15 pin)
Connects devices having a synchronous signal with RGB
output like PCs.
j S VIDEO input terminal (4pin mini DIN)
Connects devices having S VIDEO output terminals.
k Potential equalization terminal
This is a terminal for ensuring equal potential between the
monitor and other devices.
Connects equipotential plugs.
l DC OUT terminal
Please use this terminal when tying to connect a peripheral
equipment.

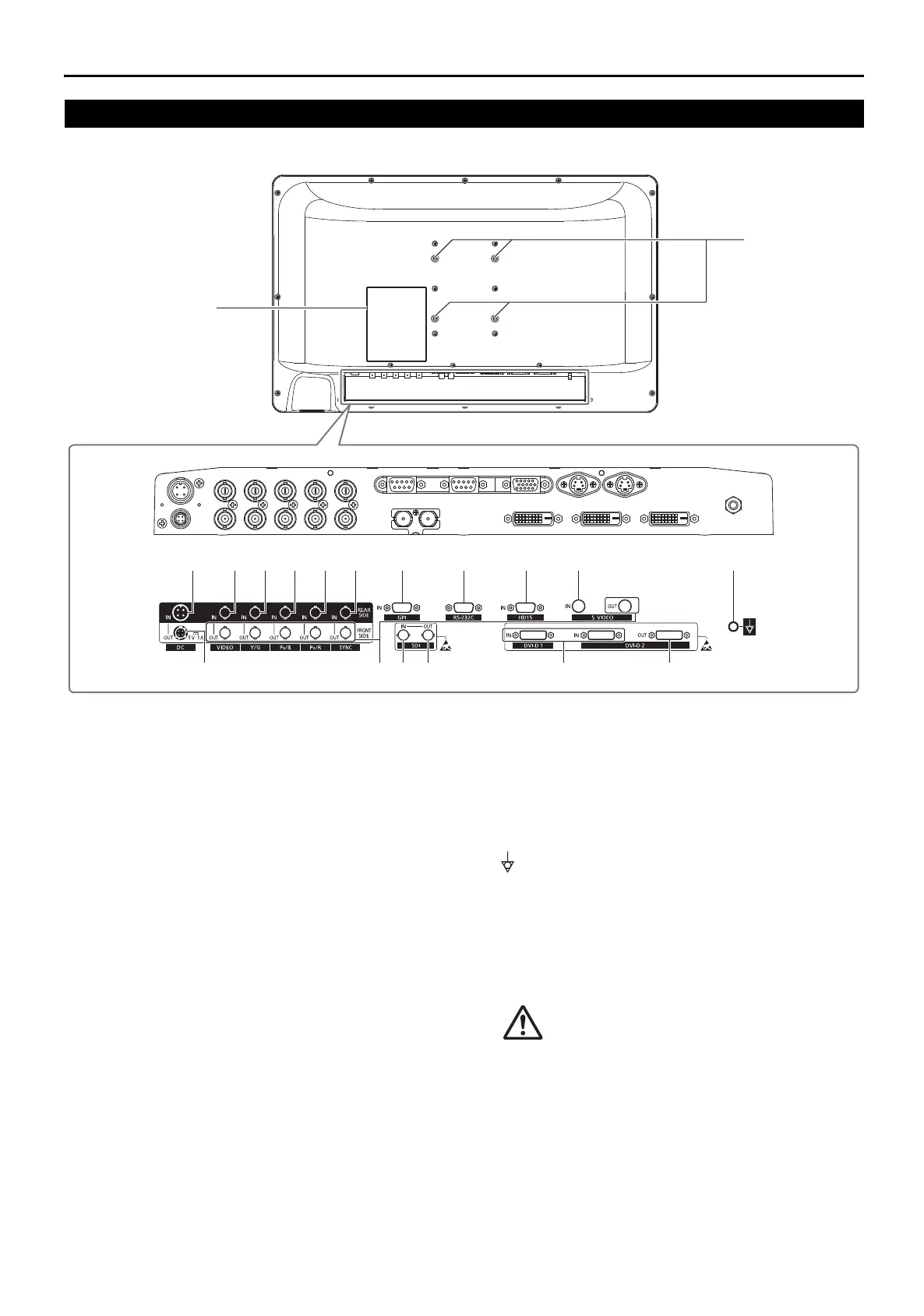

Rear View
abcdef g h i j k
n o q
r
ml p
A measuring device or a medical device which is
contacted with patients must not be plugged
into the terminal.
EJ-MLA26_EN_Arthrex.book Page 12 Wednesday, August 8, 2012 11:58 AM
To Next Page
