4) Reaming
(1) Ream the inner surface of the pipe cut with the Cutter.

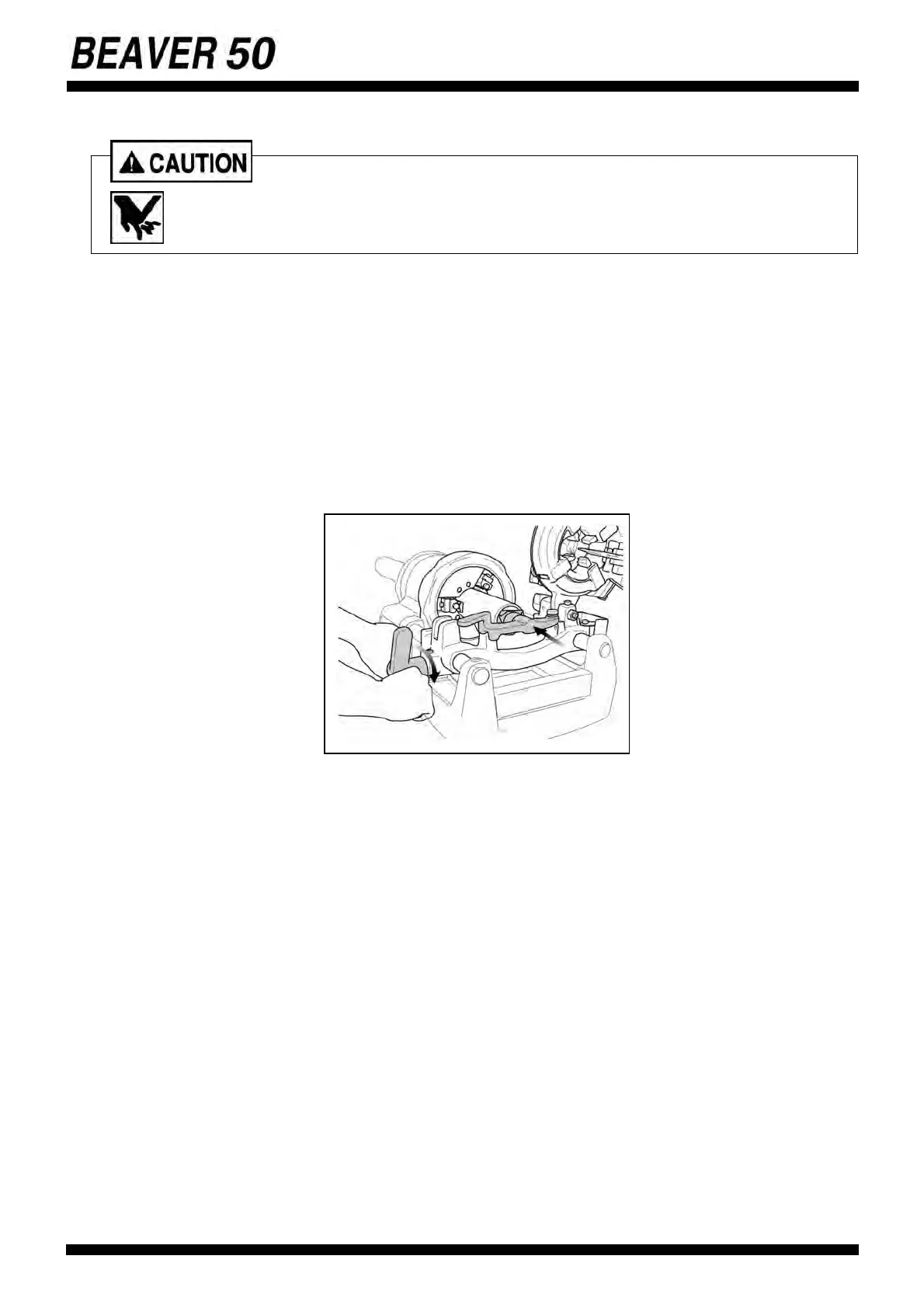

(2) Pull the Reamer toward you and set the pipe. (fig13)
(3) Turn the Rack Handle clockwise to move the Reamer Blade close to the end face of the turning pipe.
(fig13)
(4) Turn the Rack Handle further, lightly press the Reamer Blade against the inside the pipe for reaming.
(fig13)
5) Changed thread Size
5-1) Changing Dies to Changed thread Size
• For thread size [1/2"] and [3/4"], use Dies [1/2"－3/4"].
For pipe size [1"], [1-1/4"] [1-1/2"]and [2"], use Dies [1"－2"].
• For thread size changed from [1/2"], [3/4"] to [1"], [1-1/4"], [1-1/2"], [2"]or vice versa. Dies
replacement is also necessary as follows.
[Replace Dies (4 locations) of Die-Head set in the Carriage.]
17
• Blade tip of the Reamer is very sharp. Do not touch it with bare hand.
〈13〉
