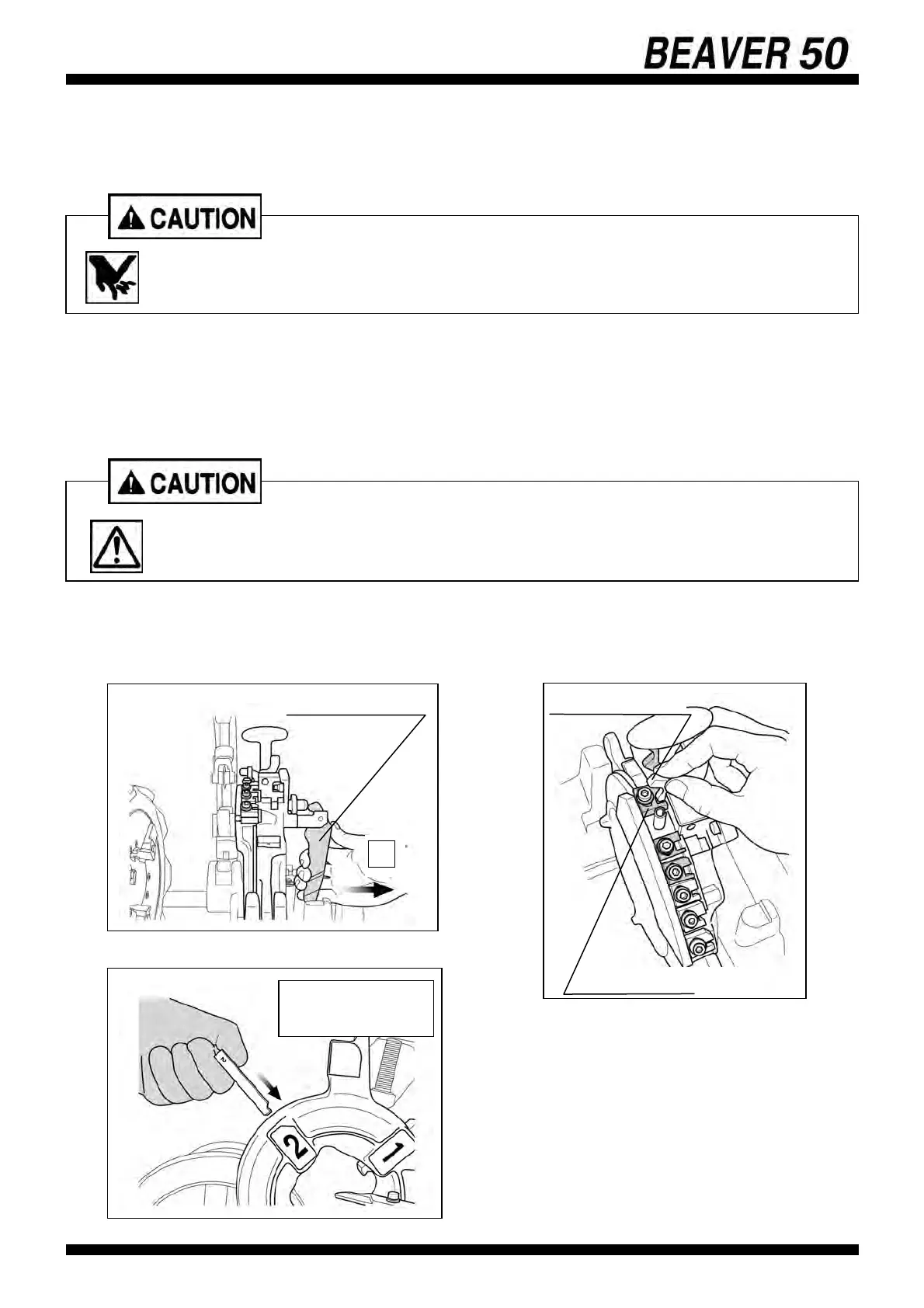

5-2) Removing and installing Dies of Die-Head set in Carriage
■ For Beaver Die-Head 1/2"-2"AT
[Removal]
(1) Pull Locking Lever toward A to open Dies.
(2) Set Selector(silver) Pin into the Dies Selector Block.
(3) When the Die-Head is lowered, pull out Dies Nos. 1 and 4 from above.
(4) Lift and remove the Die-Head and pull Dies Nos. 2 and 3 downward.
[Installation]
(1) Pull Locking Lever toward A to open Dies.
(2) Set Selector Pin(silver) into the Dies Selector Block.
(3) Insert the Dies with the same number as that of each Die-Head until click sound is heard.
(4) Make sure the numbers of Die-Head and Dies show on the same side.
･Wear gloves to avoid cutting hands by the Dies.
･Proper threading cannot be achieved unless the number on the Die-Head slot
matches that of the Dies.
〈14〉
〈15〉
〈16〉
18
A
Locking Lever
Selector Pin(silver)
Selector Block
Number shown on
the same side．
