Asada BEAVER 50 - １． Overview; ２． Components of the Machine; １） Main Parts; １－１）Threading Machine

1. OVERVIEW
• The pipe threading machine, model Beaver80, is intended to rotate a material such
as a pipe and rod for cutting or threading.The machine consists of a motor which rotates
a pipe and rod, etc. a Scroll and a Hummer Chuck to hold the work, a Cutter to cut the
work, a Die-Head to thread the work, and a pump to lubricate the threading oil.
2. COMPONENTS OF THE MACHINE
1) Main Parts
1-1) Threading Machine

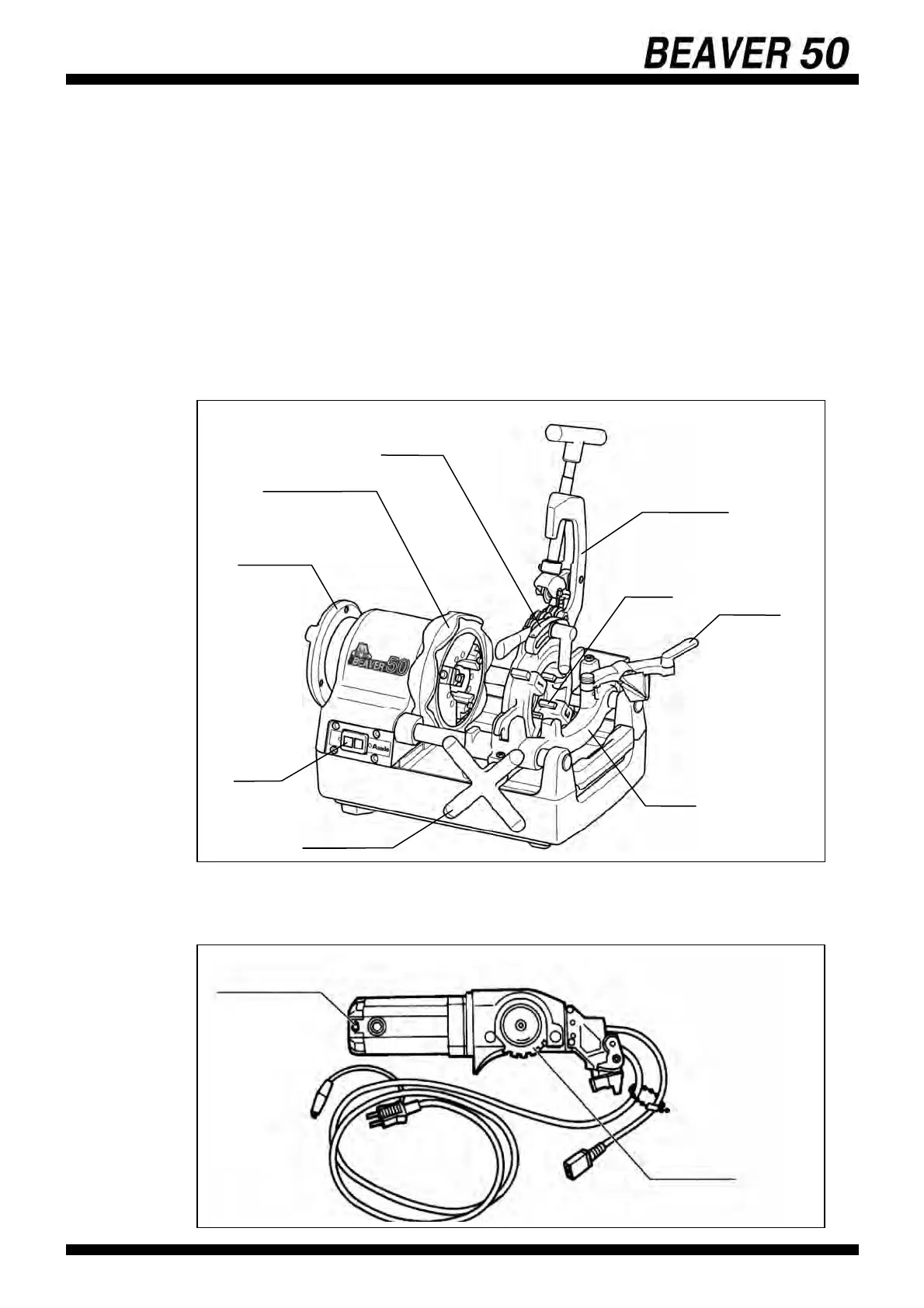

• The diagram illustrates main parts and Die Head of this machine. Pipe is chucked by
Hammer Chuck, cut by Cutter and threaded by Die Head.
1-2) Circular Saw
• The diagram shows the parts name necessary for description of this manual. For
details, refer to the instruction manual of the Circular Saw.
8
Pipe Cutter
Dies
Reamer
Carriage
Rack Handle
Switch
Scroll
Hammer Chuck
Die Head
Switch
Saw Blade
