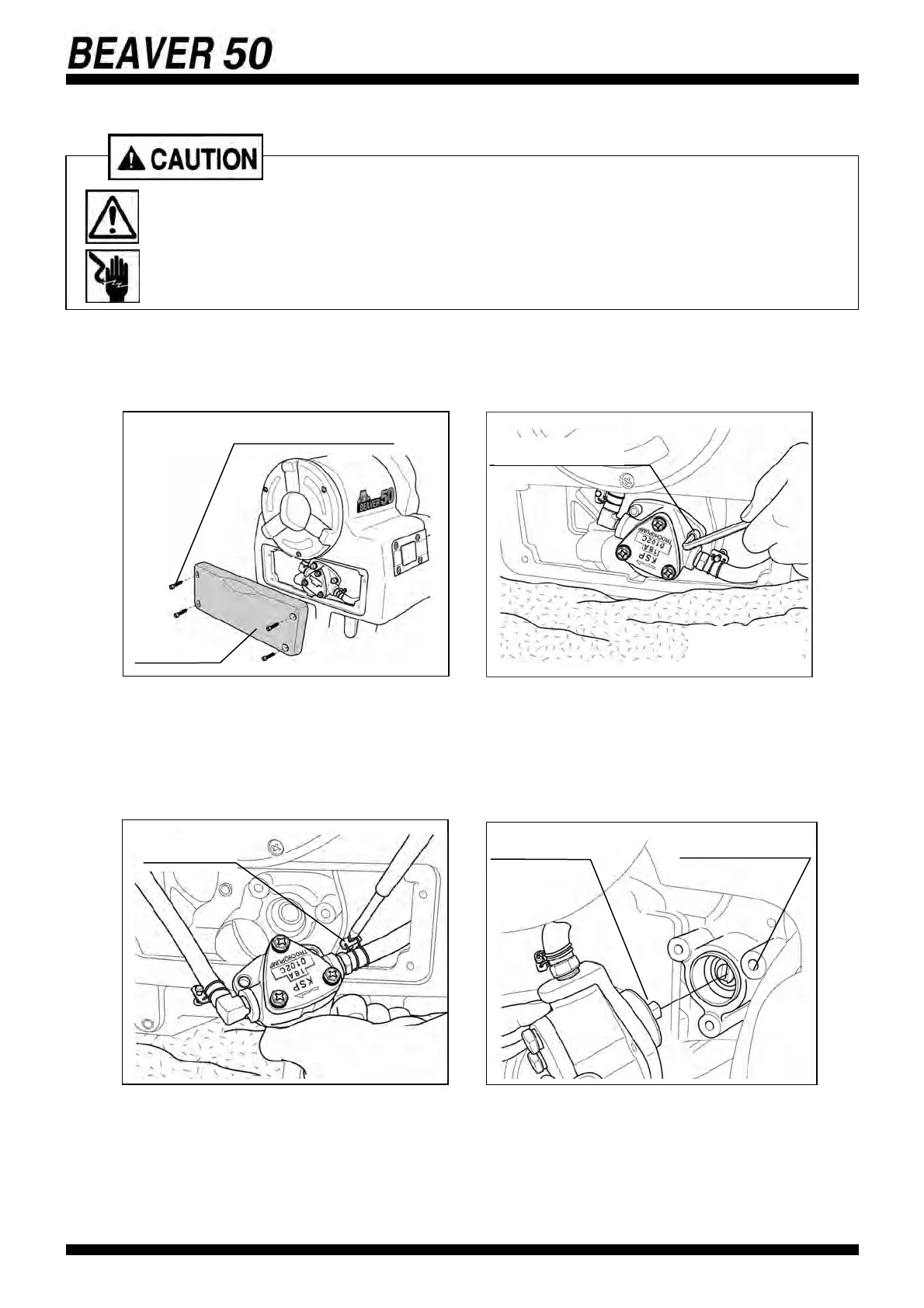

1-4) Replacement of Pump
(1) Set an oil pan (2.2 liters), remove the drain plug to drain the oil.
(2) Turn the Pomp Cover mounting bolts and remove the Pomp Cover from this machine.（fig37）
(3) Turn the Pump mounting bolts and remove the Pump from this machine.（fig38）
(4) Loosen the hose band and remove the hose from the Pump. Pay attention to the overflowing oil.（fig39）
(5) Install a new Pump to two hoses and firmly tighten the Hose Band.
(6) Turn the Pump Shaft, set it to the groove on the machine side and install the Pump with the
removed bolts.（fig.40）
(7) Install the Pomp Cover with the removed bolts. In that case, be careful not to place the code of the
Ｍotor by the Pomp Cover.
(8) Fill threading oil (2.2 liters) and lower the Die Head.
(9) Turn ON the switch and ensure the oil flows out from the Die Head.
27
･ Oil in the pump and tube overflows, staining the floor. Spread waste cloth
around the Pump.
･ Be careful not to place the code by the motor cover when you assemble the
motor cover. Damaged cord and current leakage will occur.
〈40〉
〈39〉
Hose Band
〈38〉
〈37〉
Waste Cloth
Pump mounting bolt
Pomp Cover
Pomp Cover mounting bolts
Pump Shaft
Gear Shaft Groove
