Charging Rack Installation
INSTALLATION AND OPERATION MANUAL
CR3 CR5, and CR7 Charging Racks

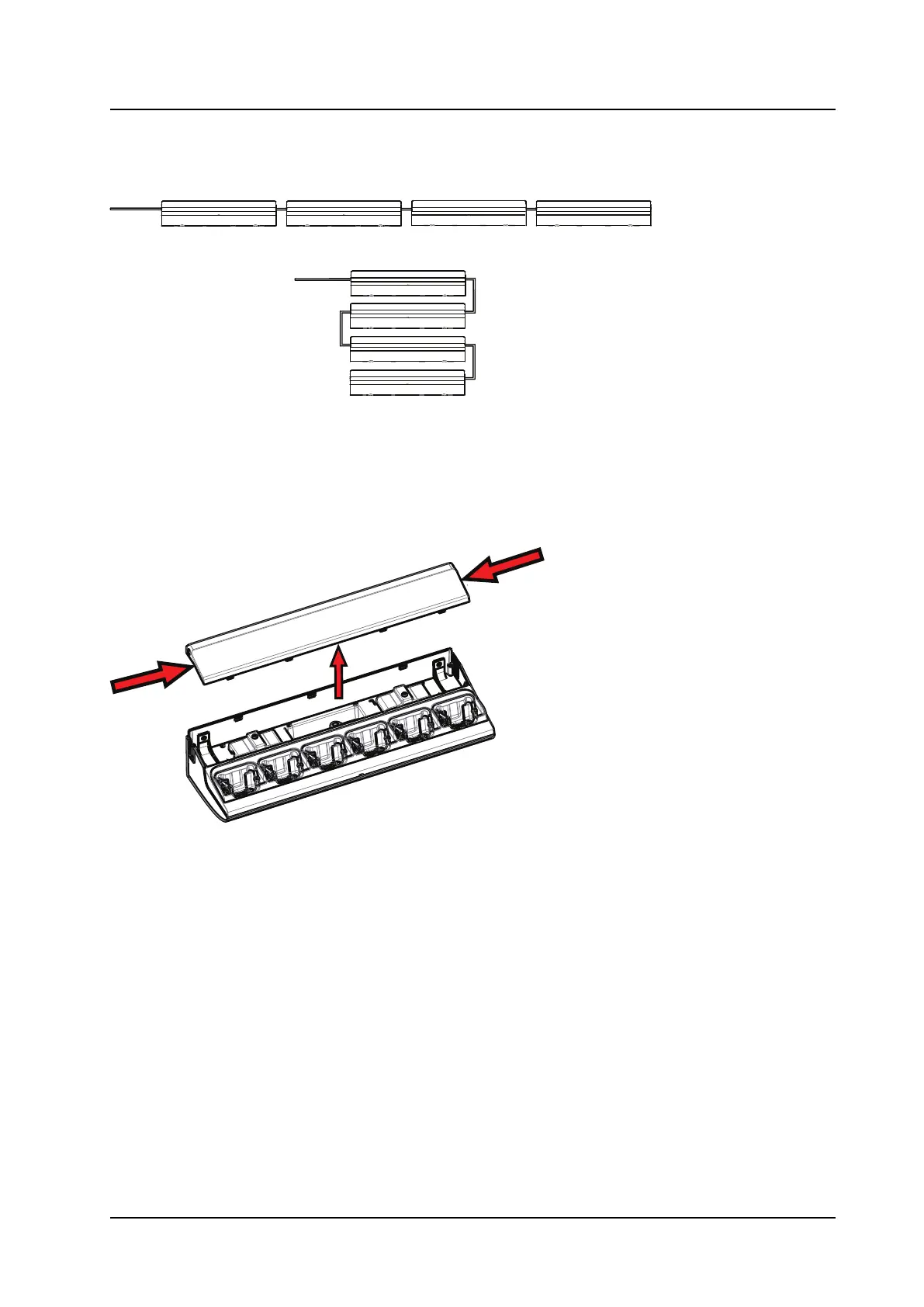

Figure 6. Examples of ways to mount Charging Racks
To disconnect device
To disconnect device
Opening the Top Cover
Open the top cover by first pressing on the sides of the top cover, then lifting it upwards.
Figure 7. Opening the top cover of the Charging Rack
Fixed Installation in Detail
Fixed installation of the first charger or single unit with fixed electrical installation.
1. Remove the C14 connector from the power cord. Measure, cut and strip the power cord to be
connected to the disconnect device.
2. Connect the mains power supply cord to the disconnect device.
The IEC color code is used in the power cord supplied.
9 TD 92480EN / 30 October 2020 / Ver. L
