ASCOM NIRC4-xMN - Mounting NU-series Connectors

INSTALLATION GUIDE
Room Controller 4 (NIRC4-xMN)
Terminating and Mounting Room Bus Connectors for NU-
series Modules
9.1 To mount the active room bus connectors:
1. Ensure the active room bus cables are properly terminated with an 8-pin block connector.
2. Orient the block connector NICT-8AA such that the wires face down.
-or-
Orient the block connector NICT-8CA such that locking clips face down.
3. Seat the block connector on an active room bus terminal.
4. Repeat steps 2 and 3 for each remaining active room bus terminal, as shown in the following figures.

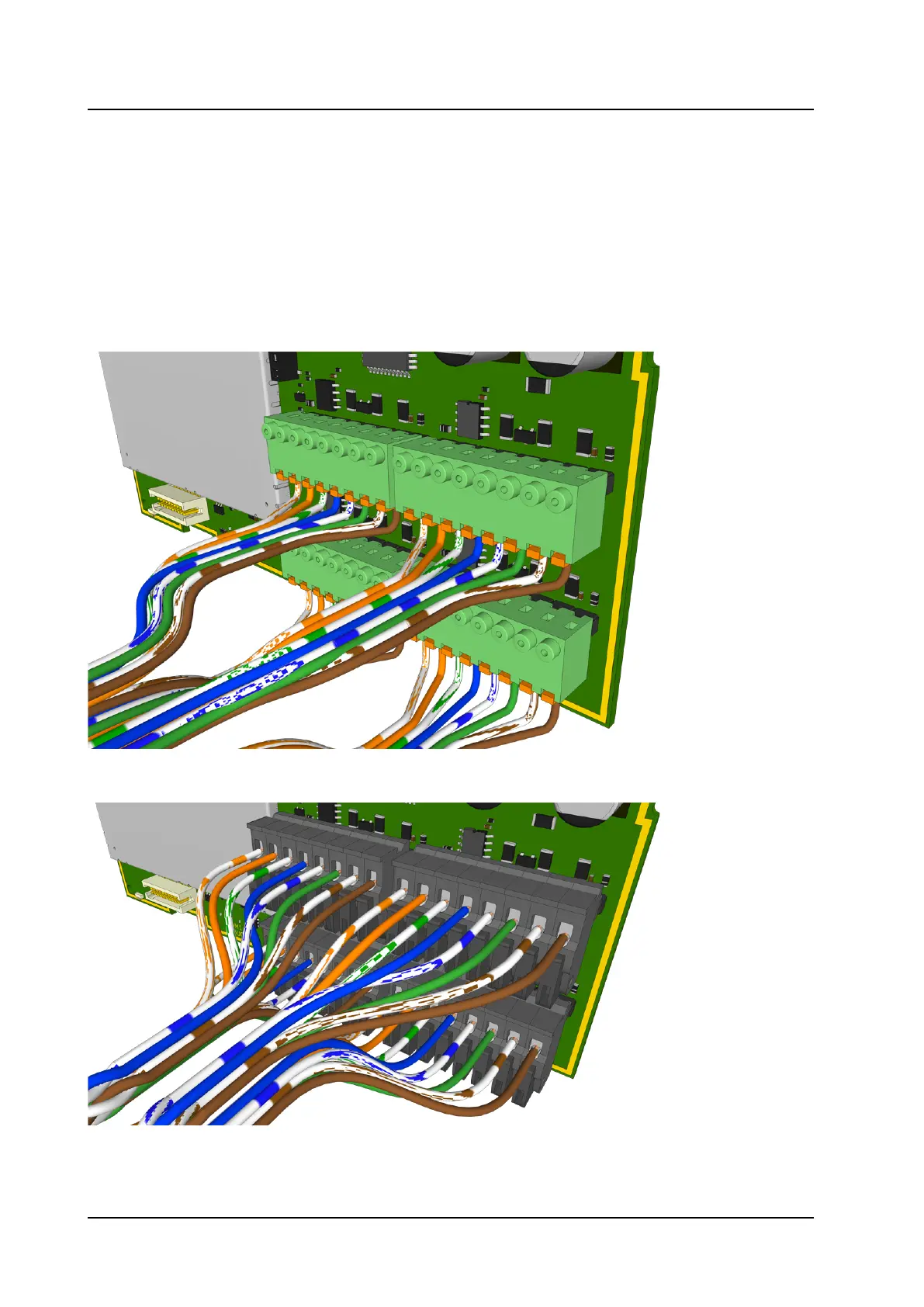

Figure 9. Room bus connections NICT-8AA (NU-series modules)
Figure 10. Room bus connections NICT-8CA (NU-series modules)
