Ask Proxima C3000 Series - Terminals

8
Part names and functions

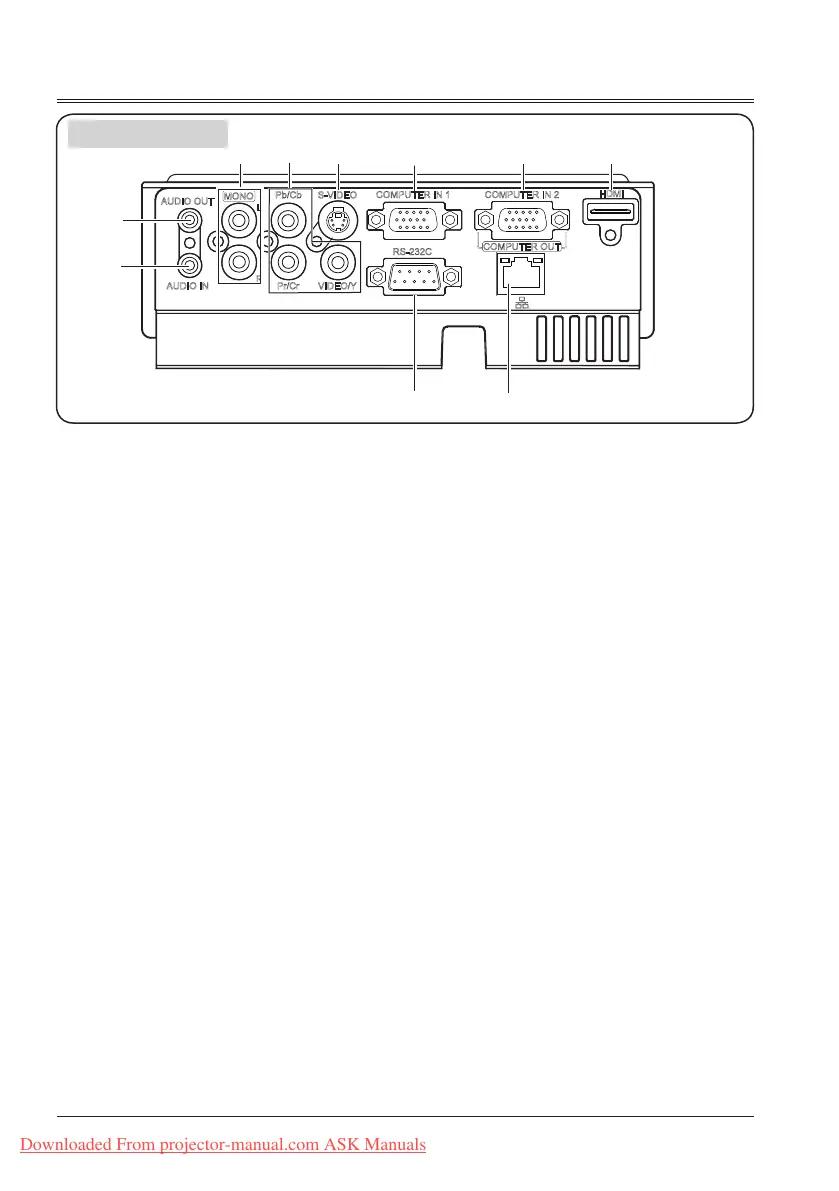

Terminals
①
② ③
④
⑤ ⑥ ⑦
⑧
⑨ ⑩
①
AUDIO OUT
*
-
Connect external audio amplier to this
jack.
-
Output audio signal from
②，⑦
or
⑧
.
②
Audio out/MONO(R/L)
*
-
Connect the video equipment connected
to
③
or
④
to this jack.
-
For a mono audio signal (a single audio
jack), connect it to L(MONO) jack.
③
Pb/Cb,Pr/Cr,Y/VIDEO
-
Connect video signal to VIDEO port.
-
Connect composite video or component
video signal to this jack.
④
S-VIDEO
Connect S-Video signal to this jack.
⑤
COMPUTER IN1
Connect a computer output to this terminal.
⑥
COMPUTER IN2/COMPUTER OUT
*
-
Connect a computer output to this
terminal.
-
Output the analog signal form
⑤
to
other monitor.
⑦
HDMI*
Connect a HDMI output to this terminal.
⑧
AUDIO IN*
Connect the audio signal output from
computer equipment connected to
⑤
or
⑥
to this jack.
⑨
RS-232C
When using RS232 to control the projector,
please connect the serial control line to this
terminal.
⑩
LAN
*
Connect the wired LAN cable to this port.
*:
Some model has no this terminal.
