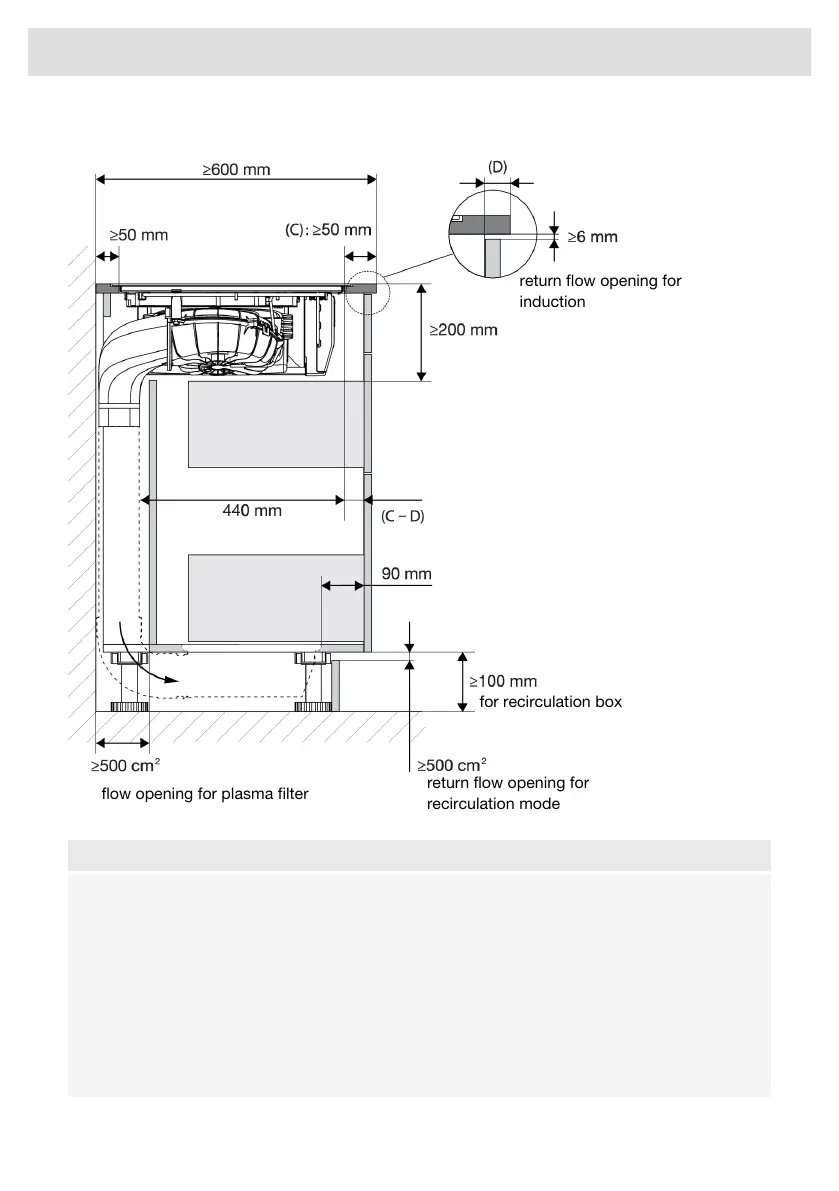

Kitchen cabinet dimensions
return flow opening for
induction
return flow opening for
recirculation mode
for recirculation box
flow opening for plasma filter
NOTE!
• Minimum cabinet width: 800 mm.
• For installation and service, the back panel must be dismountable.
• With recirculation, the humidity can rise. Therefore, a return opening of at least 500 cm
2
must
be provided and the cut surfaces must be made moisture resistant.
• With recirculation, please note that condensation may occur if the kitchen unit is installed
against an uninsulated wall or floor. If necessary, choose an alternative recirculation set that
is mounted in the plinth.
• The power cord connection is located at the front of the appliance. At least 900 mm length
of the power cord is required to lead it to the socket designated location behind the appliance.
