Asko TDC44 - Removing the Inner and Outer Rear Panels; Installing the Inner and Outer Rear Panels

35
SERVICE
2
3

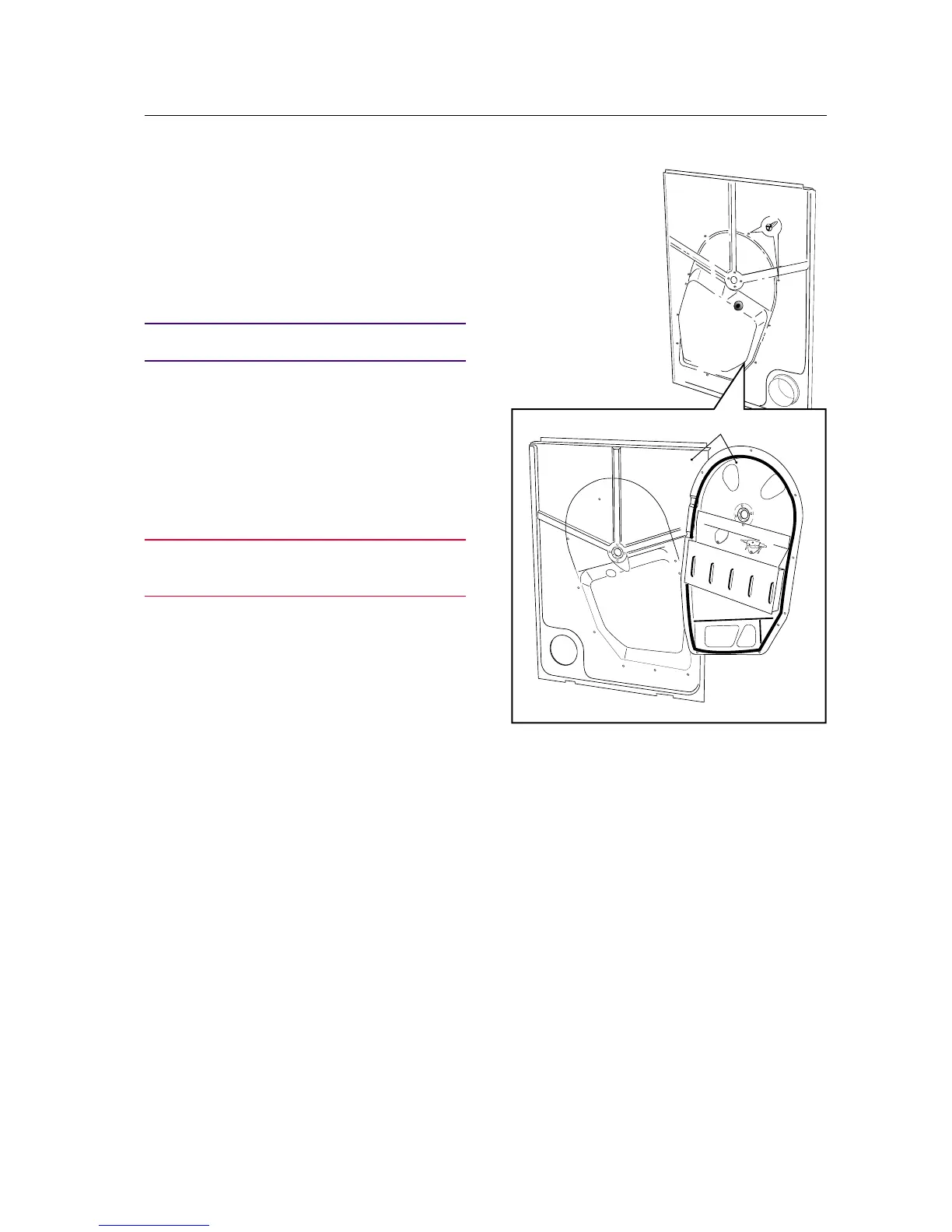

Removing the inner and outer rear panels
1. Remove the rear panel in accordance with the
section "Rear panel - removing...".
2. Remove the screws that secure the inner rear
panel to the outer, and the cable clamp.
3. Lift them apart.
IMPORTANT
The bearing is now free and can be removed.
Installing the inner and outer rear panels
4. Put the inner rear panel on to the drum shaft
and feed it on to the bearing.
5. Offer up the outer rear panel and secure it with
the screws to the inner rear panel, along with
the cable clamp.
WARNING
It is important that the wiring bundle runs along
its groove.
6. Secure the rear panel to the side panels and
bottom. Install the remaining wiring in ac-
cordance with the electrical schematic diagram
and fit the top cover.
7. Tighten the centring nut.
