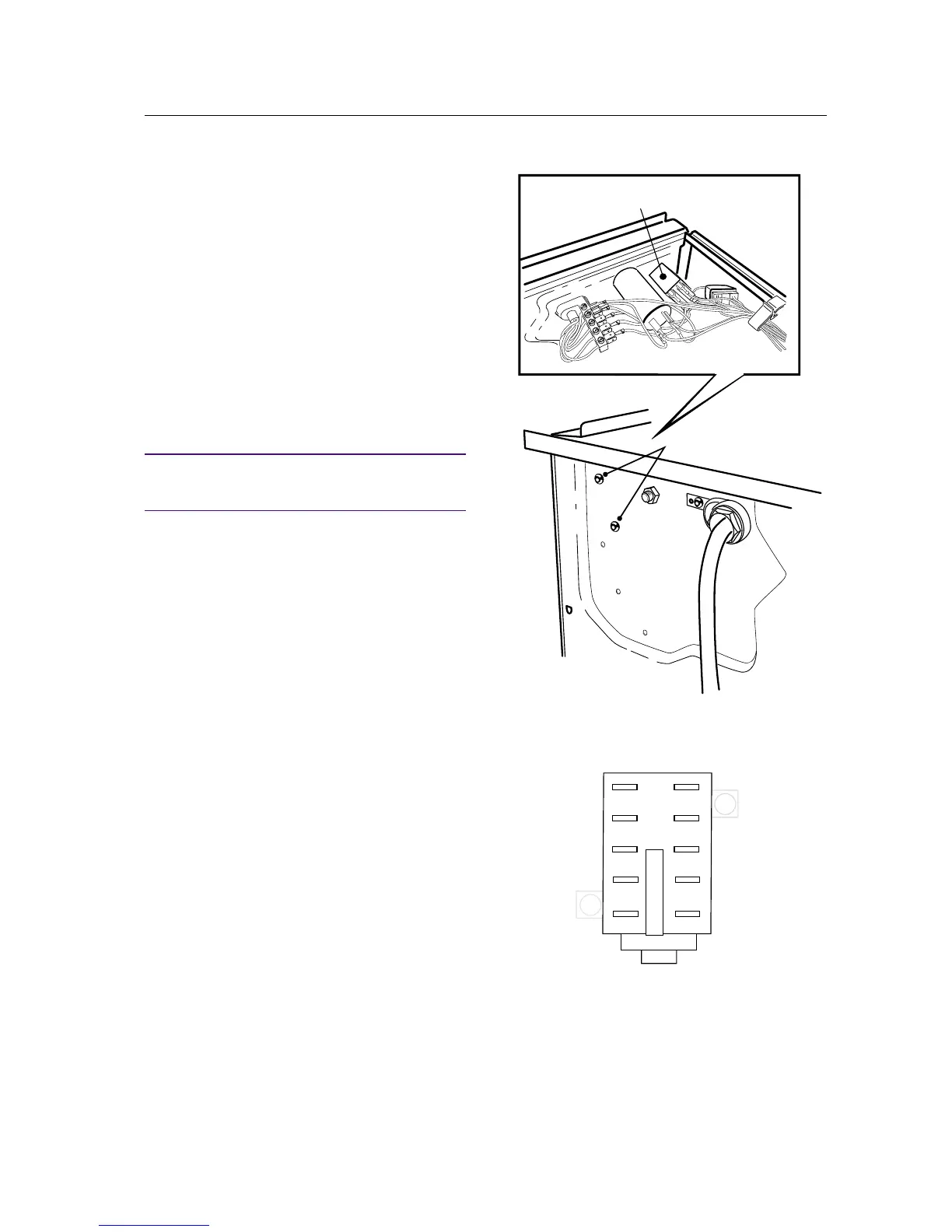

CONTACTOR
Removing the contactor
1. Remove the three screws at the rear edge and
lift off the top cover.
2. Remove the wiring to the contactor.
3. Unscrew the 2 screws that secure the contac-
tor.
Installing the contactor
4. Fit the contactor.
5. Install the wiring in accordance with the la-
bels on the wires and contactor.
IMPORTANT
Connect the wires to the correct flat pin connec-
tors.
6. Fit the top cover.
