Asko TL751 - Page 12

11

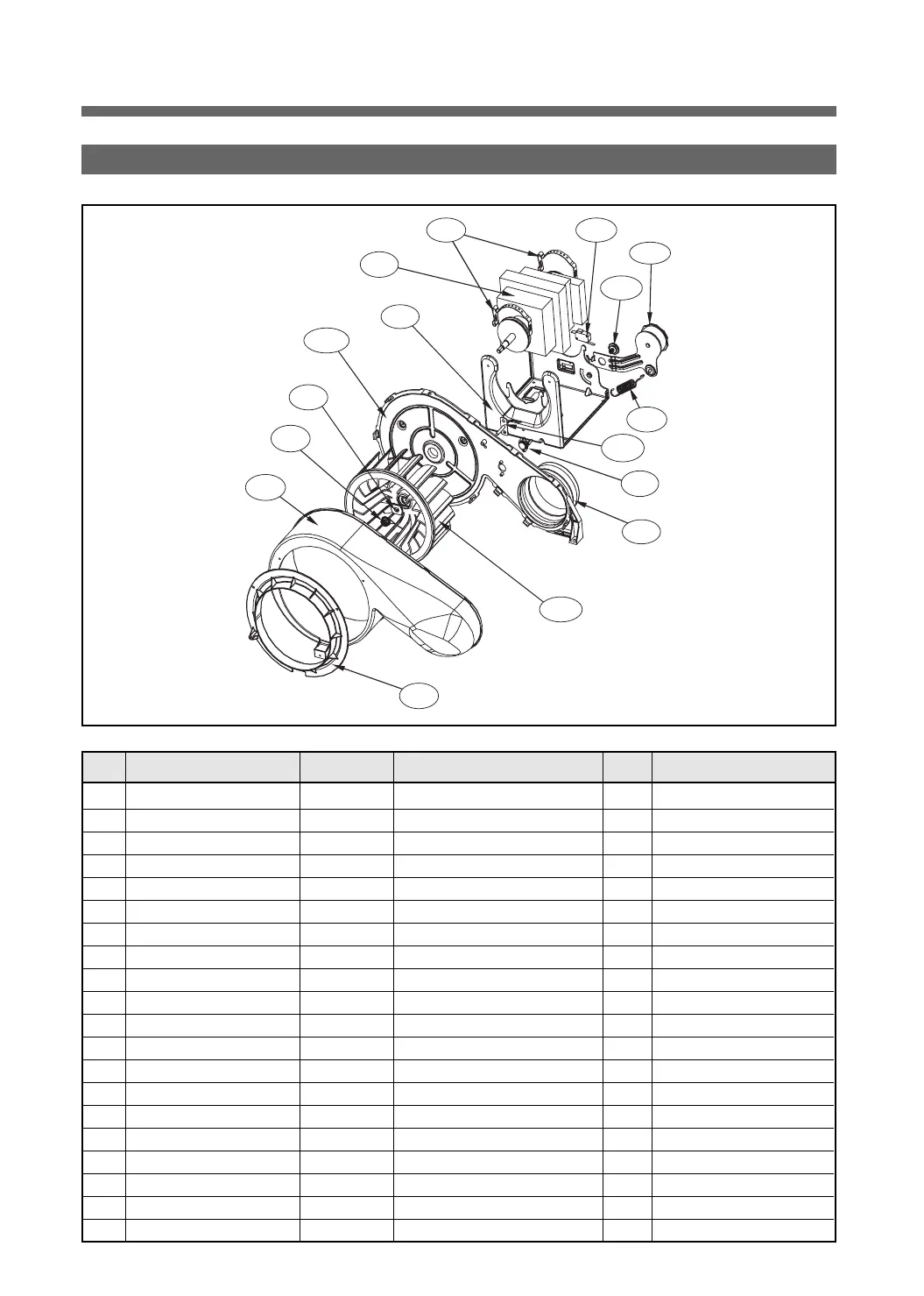

2. DRYER MOTOR ASS'Y
M03
M02
M01
M09
M14
M15
M08
M16
M13
M10
M11
M12
M05
M07
M04
M06
M01 BRACKET MOTOR 3610608500 SGCC 2.0T 1
M02 MOTOR DRYER 36189L5D00 AC 120V 60Hz 1
M03 CLAMP MOTOR 3611206000 SK5 0.7T 2
M04 BRACKET IDLER AS 3610609100 DWR-WE31 1
M05 SPRING IDLER 3615115500 HSW3 1
M06 SPECIAL BOLT 3616039000 S18A M6x10(FLANGE) 1
M07 SWITCH MICRO 3619047500 UL. 16A 250AC HINGE LEVER. N-C 200G 1
- SCREW TAPPING 7121301611 T2S PAN 3x16 2 For fixing micro s/w
M08 CASE FAN F 3611144900 PP(Heat resisting) 1
M09 CASE FAN R 3611145000 PP(Heat resisting) 1
M10 GASKET PIPE 3612323200 EPDM(320*15*2.0t) 1
- SCREW TAPPING 7112401411 T1 TRS 4x14 3 For fixing case fan to bracket motor
M11 THERMOSTAT FAN 3619047900 UL.70ON.85OFF.125V/15A,250V/7.5A 1
- SCREW TAPPING 7121300811 T2S PAN 3x8 2 For fixing thermostat fan
M12 THERMISTOR FAN 361AAAAC20 UL-DRYER.R40=26.065K.R90=4.4278K 1
- SCREW TAPPING 7122401411 T2 TRS 4x14 1 For fixing thermistor fan
M13 FAN IMPELLER AS 3611886200 PP(Heat resisting)+BUSHING 1
M14 SPECIAL WASHER 3616039100 SPC 1
M15 SPECIAL NUT 3616039200 NUT HEX 3/8-24 UNF LH 1
M16 COVER FAN 3611428200 PP(Heat resisting) 1
No. Part Name Part Code Description Qtt'y Remark
