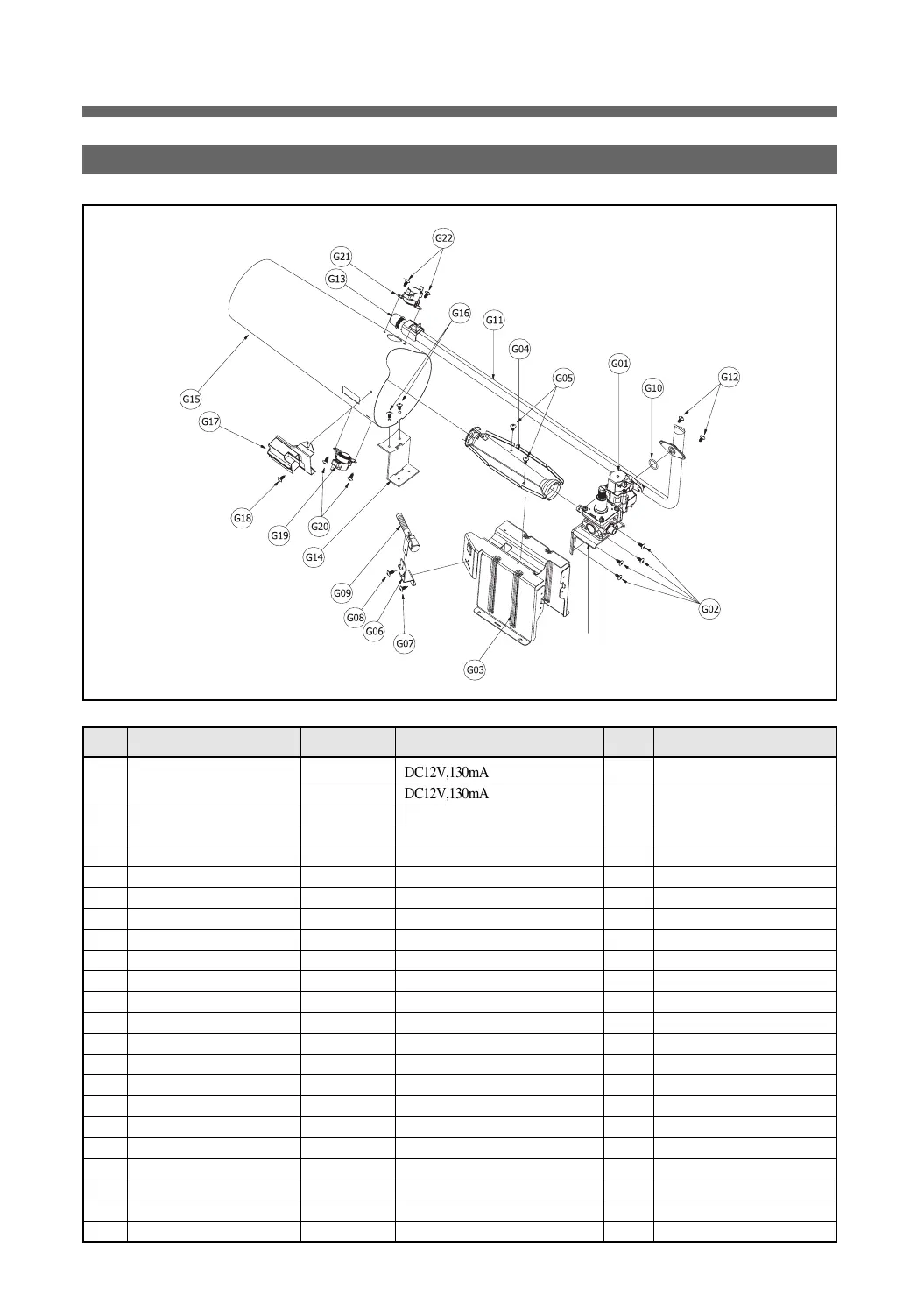

3. GAS BURNER ASS'Y
G01 VALVE GAS AS 3615417200 DC12V,130mA 1 LPG type
3615417300 DC12V,130mA 1 LNG type
G02 SCREW TAPPING - T1 M4*8 4 For fixing G01 & G03
G03 GUIDE BUNNER 3612511100 SGCC 1.0T 1
G04 MIXING VENTURI AS 3612209200 VENTURI AS+ FLAME DAMPER 1 WELDING(SPOT)
G05 SCREW TAPPING - T1 M4*8 2
G06 BRACKET IGNITER 3610609400 SGCC 1.6T 1
G07 SCREW TAPPING - T1 M4*8 1 For fixing G03 & G06
G08 SCREW TAPPING - T1 M4*8 1 For fixing G09 & G06
G09 IGNITER AS 36189L5800 Ceramic type 120V 60Hz 4A 1
G10 O-RING 3614604100 HNBR 1
G11 PIPE AS 3614413800 Pipe+Fixture+connector 1 WELDING
G12 SCREW TAPPING - PS/W 4°ø12 2 For fixing G01 & G11
G13 CAP PIPE 3610918200 PP 1
G14 FIXTURE FUNNEL 3612009200 SGCC 2.0T 1
G15 FUNNEL 3612511300 ALCOSTA 0.7T 1
G16 SCREW TAPPING - T1 M4*8 2 For fixing G14 & G15
G17 SENSOR FLAME 3614825700 CSA, 5.75A 120V 60Hz 10RS 1
G18 SCREW TAPPING - T1 M4*8 1
G19 THERMOSTAT CUT-OUT 3619047810 110°C OFF / - 35°C ON 1
G20 SCREW TAPPING - T1 M4*8 2
G21 THERMOSTAT HI-LIMIT 3619047610 95°C OFF / 70°C ON 125V 25A 1
G22 SCREW TAPPING - T1 M4*8 2
