GENOAD12M3-2Q
GENOAD12M3-2Q/H
GENOAD12M3/T
26 27
English

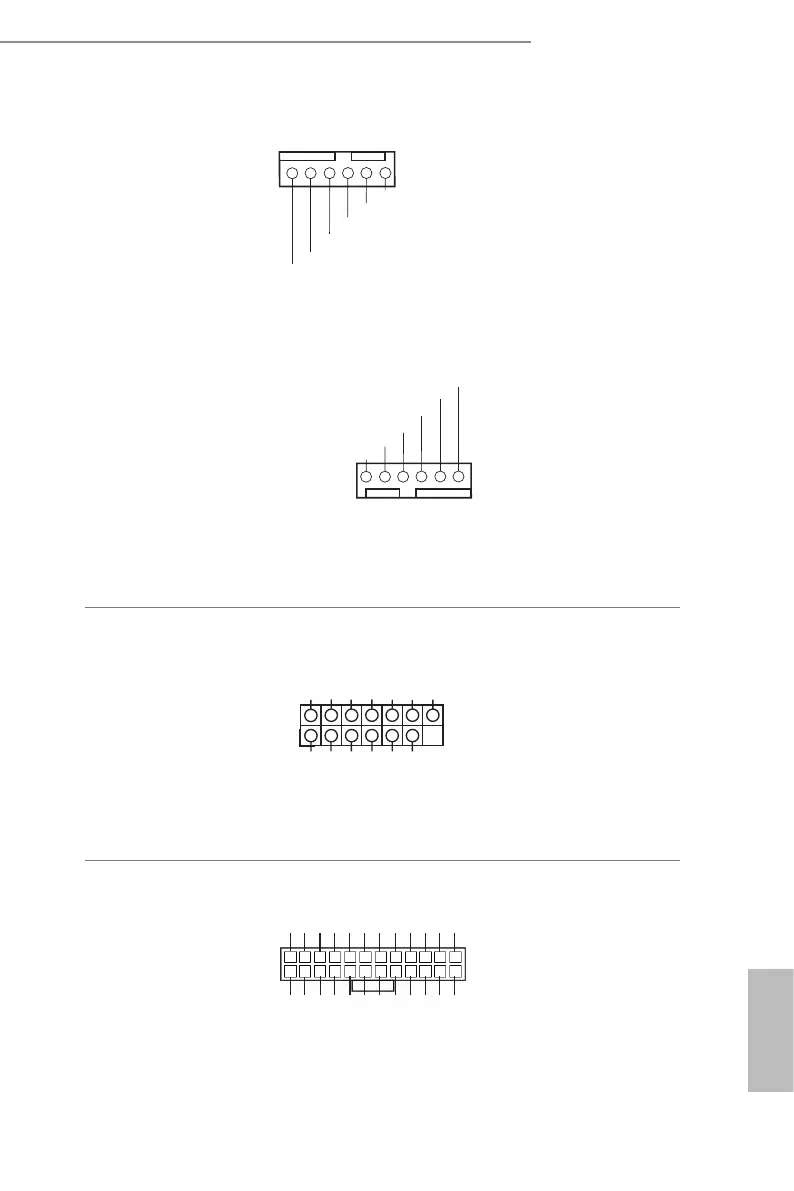

System Fan Connectors
(6-pin FAN1)
(see p.6, No. 11)
(6-pin FAN2)
(see p.6, No. 12)
(6-pin FAN3)
(see p.6, No. 13)
(6-pin FAN4)
(see p.6, No. 14)
(6-pin FAN5)
(see p.6, No. 31)
(6-pin FAN6)
(see p.6, No. 29)
(6-pin FAN7)
(see p.6, No. 30)
(6-pin FAN8)
(see p.6, No. 28)
FAN_SPEED_SENSOR1
FAN_SPEED_CONTROL
FAN_VOLTAGE
GND
FAN_SPEED_SENSOR2
NC
FAN_SPEED_SENSOR1
FAN_SPEED_CONTROL
FAN_VOLTAGE
GND
12 3456
FAN_SPEED_SENSOR2
Please connect fan cables to
the fan connectors and match
the black wire to the ground
pin. All fans support Fan
Control.
SPI TPM Header
(13-pin TPM_BIOS_PH1)
(see p.6, No. 51)
SPI_WP
SPI_CS
MISO
RSMRST#
TPM_CS#
SPI PIRQ
SPI_RST
MOSI
SPI_CLK
+3.3V
GND
SPI_HOLD
X
1
is connector supports SPI
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords, and
data. A TPM system also helps
enhance network security,
protects digital identities, and
ensures platform integrity.
ATX Power Connector
(24-pin ATX PWR1)
(see p.6, No. 4)
3V
3V
GND
GND
5V
5V
GND
PWROK_PS
5VSB
12V
12V
3V
121
24
3V
-12V
GND
PSON#
GND
GND
GND
5V
5V
5V
GND
N/A
is motherboard provides a
24-pin ATX power connector.
To use a 20-pin ATX power
supply, please plug it along
Pin 1 and Pin 13.
To Next Page
