ASROCK GENOAD12M3-2Q - Page 34

28 29
English

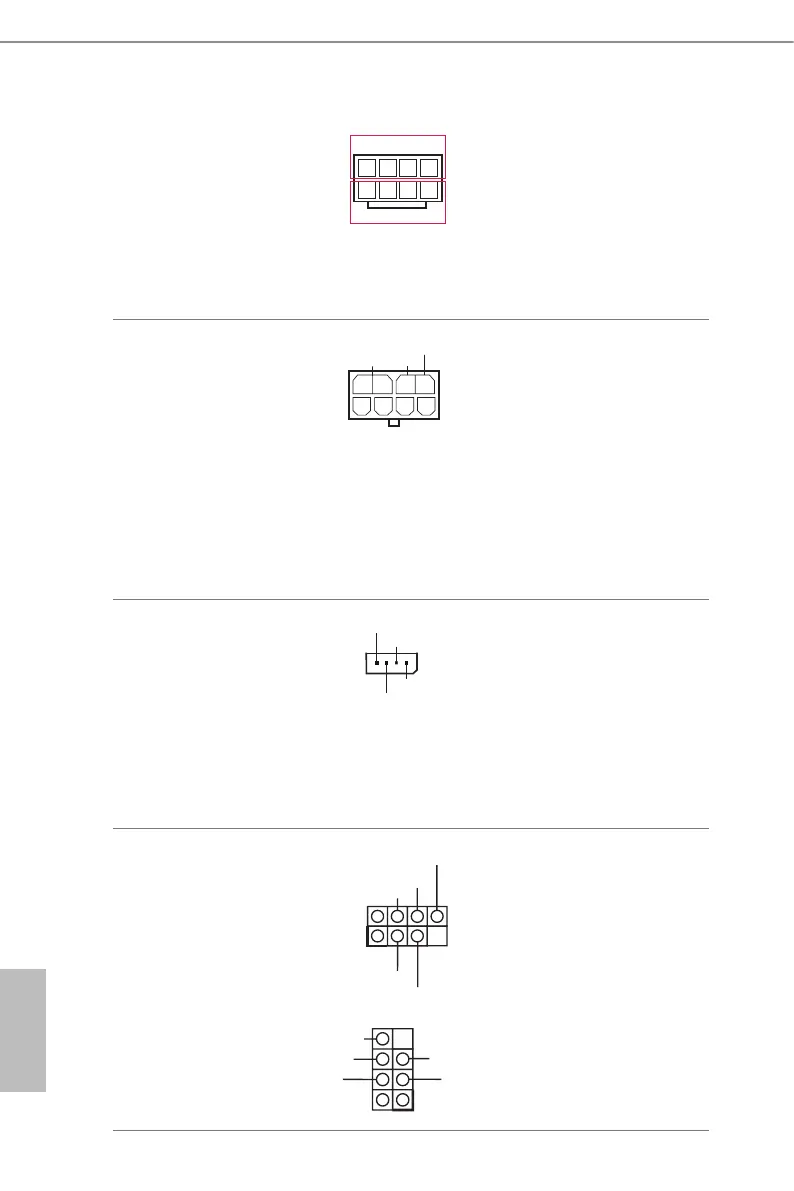

ATX Power Connectors
(8-pin ATX12V1)
(see p.6, No. 6)
(8-pin ATX12V2)
(see p.6, No. 7)
(8-pin ATX12V3)
(see p.6, No. 8)
4
8
1
5
12V
GND
is motherboard provides
three ATX power connectors.
Micro-Hi Power
Connector
(8-pin PWR1)
(see p.6, No. 5)
is motherboard provides a
8-pin Micro-Hi 12V Output
Power connectors. Using a
power cable to connect this
power connector to the device
or BP from the motherboard
power supply.
* Misconnecting cables or devices
with dierent voltage pin denitions
may cause motherboard damage
permanently.
Intelligent Platform
Management Bus Header
(4-pin IPMB1)
(see p.6, No. 38)
IPMB_SDA
IPMB_SCL
GND
No connect
is 4-pin connector is used
to provide a cabled baseboard
or front panel connection
for value added features and
3rd-party add-in cards, such
as Emergency Management
cards, that provide manage-
ment features using the IPMB.
Serial General Purpose
Input/Output Headers
(7-pin SATA_SGPIO1)
(see p.6, No. 33)
(7-pin SATA_SGPIO2)
(see p.6, No. 34)
(7-pin SATA_SGPIO3)
(see p.6, No. 9)
(7-pin SATA_SGPIO4)
(see p.6, No. 10)
1
SLOAD
SCLOCK
GND
GND
SDATAOUT
1
SLOAD
SCLOCK
GND
GND SDATAOUT
ese headers support Serial
Link interface for onboard
SATA connections.
4
8
1
5
12V
GND
+3.3V
+3.3VSB
