GENOAD12M3-2Q
GENOAD12M3-2Q/H
GENOAD12M3/T
28 29
English

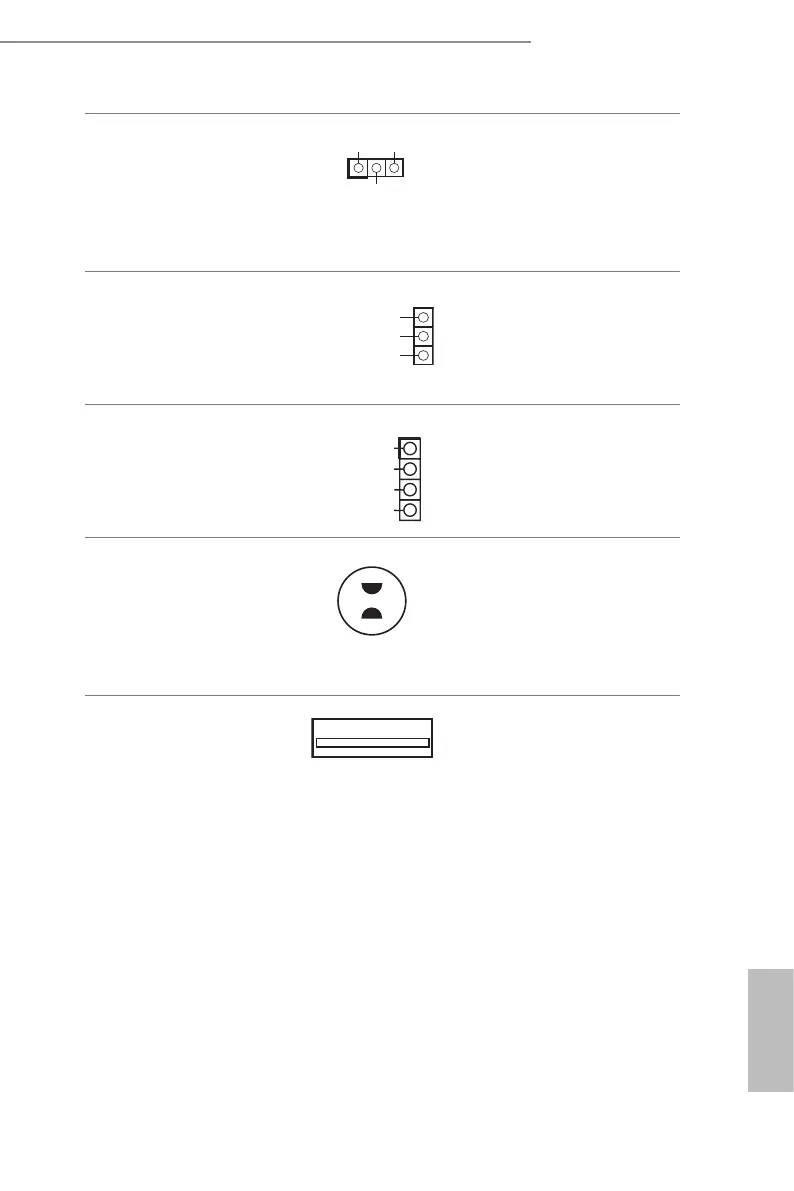

ermal Sensor Header
(3-pin TR1)
(see p.6, No. 48)
1
TR1 TR1
GND
Please connect the thermal
sensor cable to either pin 1-2
or pin 2-3 and the other end
to the device that wants to
monitor the temperature.
PWM Conguration
Header
(3-pin PWM _CFG1)
(see p.6, No. 20)
1
GND
SMB_DATA_VSB
SMB_CLK_VSB
is header is used for PWM
congurations.
Speaker Header
(4-pin SPEAKER1)
(see p.6, No. 44)
SPEAKER
1
+5V
DUMMY
DUMMY
Please connect the chassis
speaker to this header.
Clear CMOS Pad
(CLR MOS1)
(see p.6, No. 1)
is allows user to clear
the data in CMOS. To clear
CMOS, take out the CMOS
battery and short the Clear
CMOS Pad.
MCIO Connectors
(MCIO1)
(see p.6, No. 15)
(MCIO2)
(see p.6, No. 16)
(MCIO3)
(see p.6, No. 17)
(MCIO4)
(see p.6, No. 18)
(MCIO5)
(see p.6, No. 21)
(MCIO6)
(see p.6, No. 22)
(MCIO7)
(see p.6, No. 23)
(MCIO8)
(see p.6, No. 24)
ese connectors are used for
the PCIE devices.
