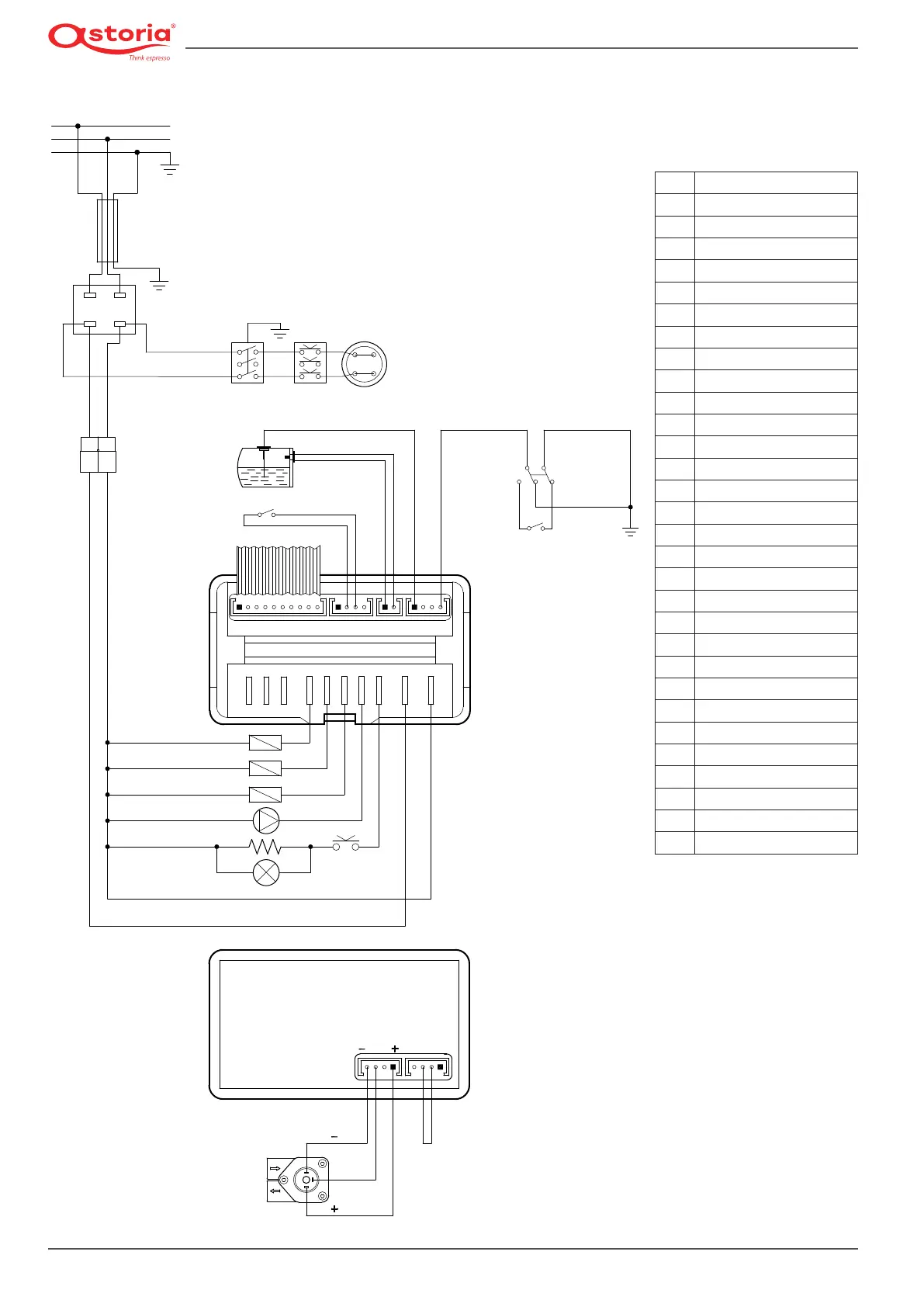

13.5.17 Wiring diagram code 18090067-18090068 *CKXE**
O
FA1 FA2 FA4 FA5 FA3 FA6 FA7
RS232
PO
OUT
CT
MA
MA
NE
RO
GR VE GV
BI
BL
SL
STCCAL DV
SDPUL
PT
EVG
EVT
EVC
MP
RIS
TS
SR
CV
NE
BI
RO
IN
R
N
MA
BL GV
CAB
S/L2 R/L1
U/T1V/T2
PR
SA
RE
Back
Front
BI White
BL Blue
CAB Power cable
CAL Heating unit
CT Power supply connector
DV Diverter
EVC Heating unit lling solenoid valve
EVG Group solenoid valve
EVT Tea solenoid valve
GR Grey
GS Grey-red
GV Yellow-green
IN Switch
LA Indicator light
MA Brown
MP Motor pump
NE Black
PG Group button
PO Jumper
PR Pressure switch
PT Tea button
RE Heating element
RIS Heating
RO Red
SA Safety heating element
SD Reed sensor
SH Indicator light for lack of water
SL Heating unit level probe
SR Heating light
TS Safety thermostat
VE Green
