Astoria Plus4YouTS SAEP - Machine Diagram; Machine Component Diagram

Plus4YouTS
User Manual
41 of 216
English

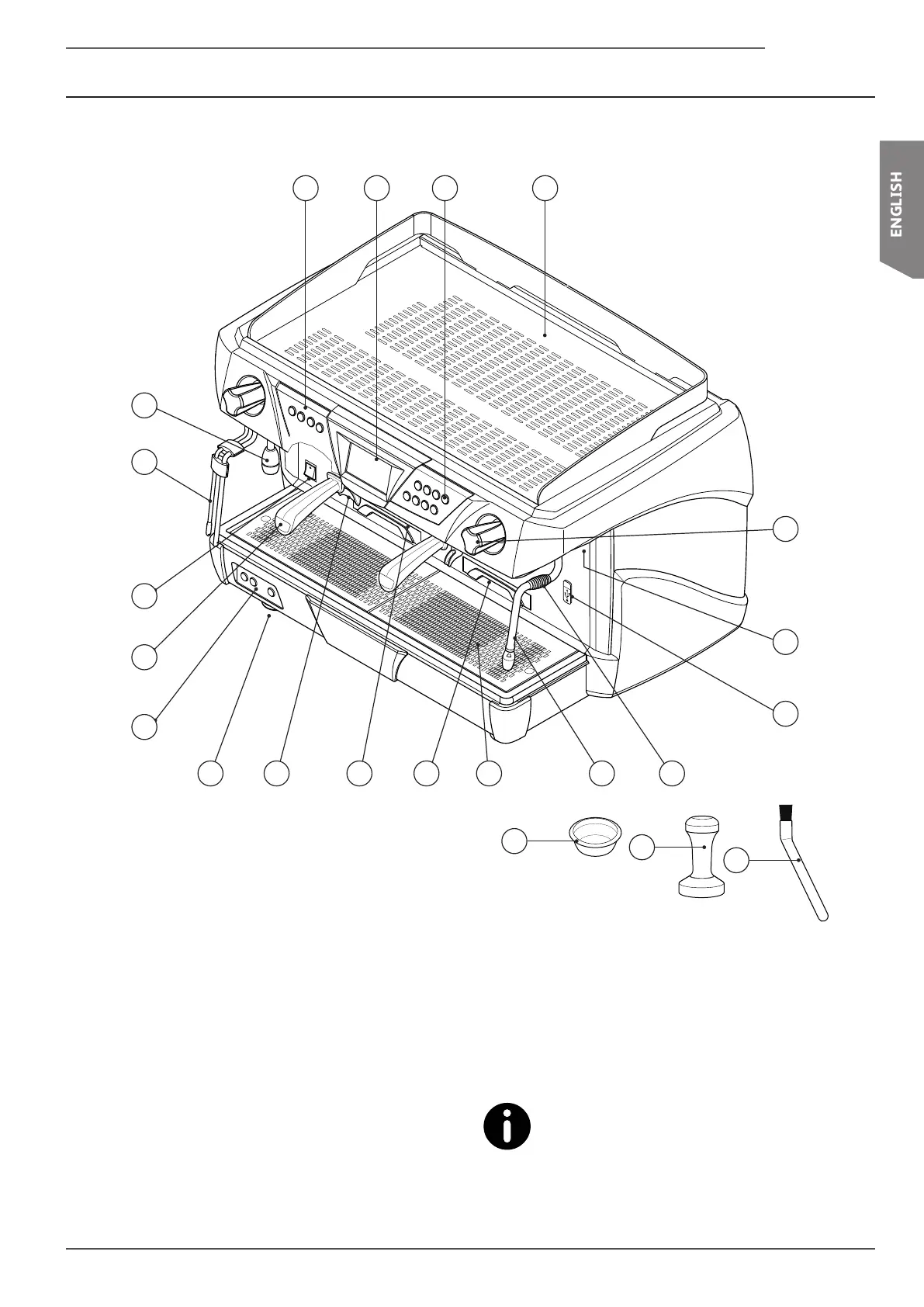

2.5 Machine diagram
1. Cup warmer shelf
2. Pushbutton panel for coffee and tea selections
3. Touchscreen display
4. MachineONswitch
5. Steam knob
6. Anti-burn rubber seal
7. USB port
8. Steam dispensing nozzle
9. Tray and cup support grille
10. Pull-out cup support grille
11. Automatic steam wand air regulator
12. Filter holder
13. Hot water dispensing spout
14. Automatic steam wand nozzle (optional)
15. Adjustable foot
16. Automatic steam wand pushbutton panel (optional)
17. Dispensing spouts
18. Dispensing compartment light
19. Blindlter
20. Presser
21. Cleaning brush
The only stick that can be used in the USB port (7)
is the USB stick provided exclusively to the Techni-
cian. Do not connect external devices (iPhones,
iPads, PCs, etc.) to the USB port because it could create seri-
ous machine software problems.
12 2
13
14
4
5
6891015
16
12
17
18
11
7
3
19
20
21
