Asus TS100-E10-PI4 User Manual

Chapter 3: Motherboard Information
3-12
• DO NOT forget to connect the fan cables to the fan connectors. Insufcient air ow
inside the system may damage the motherboard components.
• These are not jumpers! DO NOT place jumper caps on the fan connectors!
• All fans feature the ASUS Smart Fan technology.

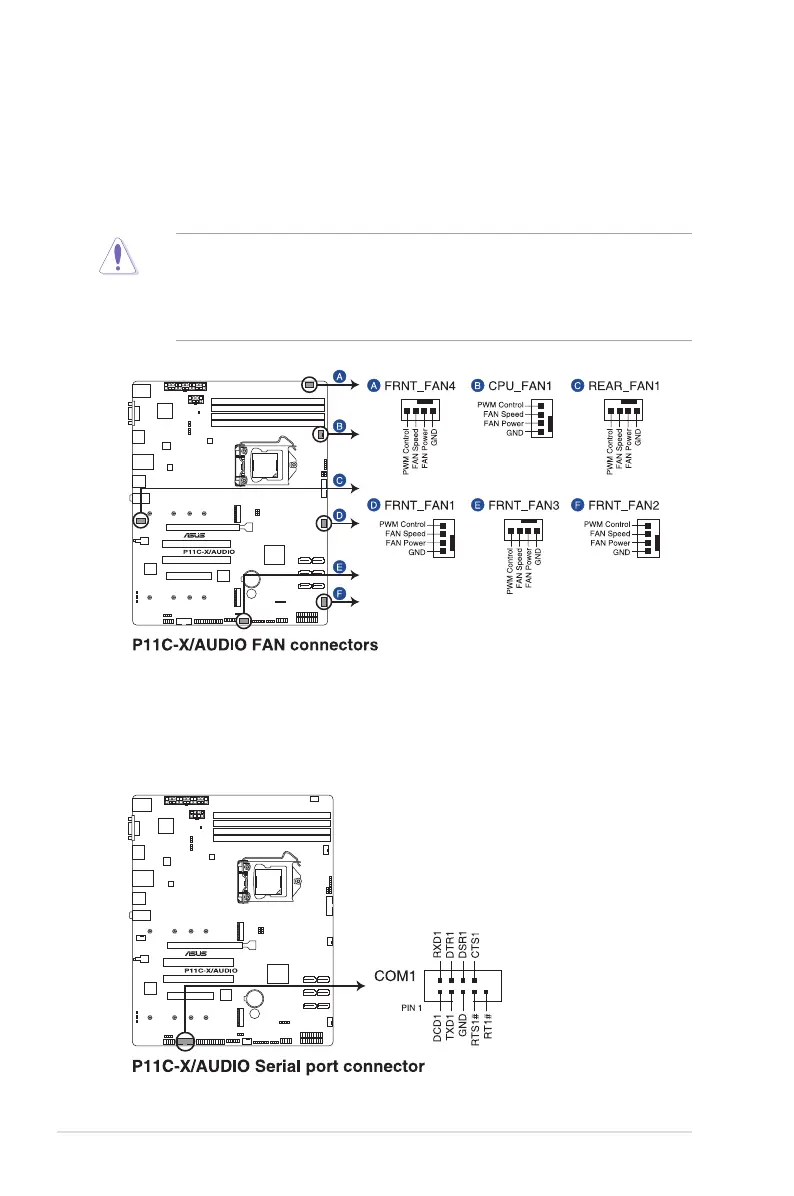

7. CPU,front,andrearfanconnectors
 (4-pinFRNT_FAN1-4;REAR_FAN1;CPU_FAN1)
The fan connectors support cooling fans. Connect the fan cables to the fan connectors
on the motherboard, ensuring that the black wire of each cable matches the ground pin
of the connector.
8. Serialportconnector(10-1pinCOM1)
This connector is for the serial COM port. Connect the serial port module cable to one
of these connectors, then install the module to a slot opening at the back of the system
chassis.

Asus TS100-E10-PI4 Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
LAN controller	Intel I210-AT, Intel I219LM
Audio chip	Realtek ALC887-VD2
Processor socket	LGA 1151 (Socket H4)
Motherboard chipset	Intel C242
Compatible processor series	Intel Celeron, Intel Core i3, Intel Pentium, Intel Xeon
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Maximum internal memory	128 GB
Supported memory clock speeds	2400, 2666 MHz
PCI slots	2
PCI Express x8 slots	1
PCI Express slots version	3.0
Chassis type	Full-Tower
Cooling type	-
Product type	Workstation barebone
Product color	Black, Metallic
LED indicators	HDD, Power, Reset
HDMI ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of SATA III connectors	6
RAID levels	0, 1, 5, 10
Storage drive interface	M.2, PCI Express, Serial ATA
Storage drive sizes supported	2.5, 3.5 \
Supported storage drive types	HDD
On-board graphics card model	Aspeed AST2510
Power supply	500 W
AC input voltage	220 - 240 V
Power supply type	Internal power supply unit
AC input frequency	50 - 60 Hz
AC adapter output current	7 A
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	423 mm
Width	190 mm
Height	435 mm
