Asus TS100-E10-PI4 User Manual

ASUS TS100-E10-PI4
3-13
• DO NOT forget to connect the 24-pin and the 8-pin power plugs; otherwise, the system
will not boot up.
• Use of a power supply unit (PSU) with a higher power output is recommended when
conguring a system with more power-consuming devices. The system may become
unstable or may not boot up if the power is inadequate.
• This motherboard supports ATX2.0 PSU or later version.
• Ensure that your PSU can provide at least the minimum power required by your
system.

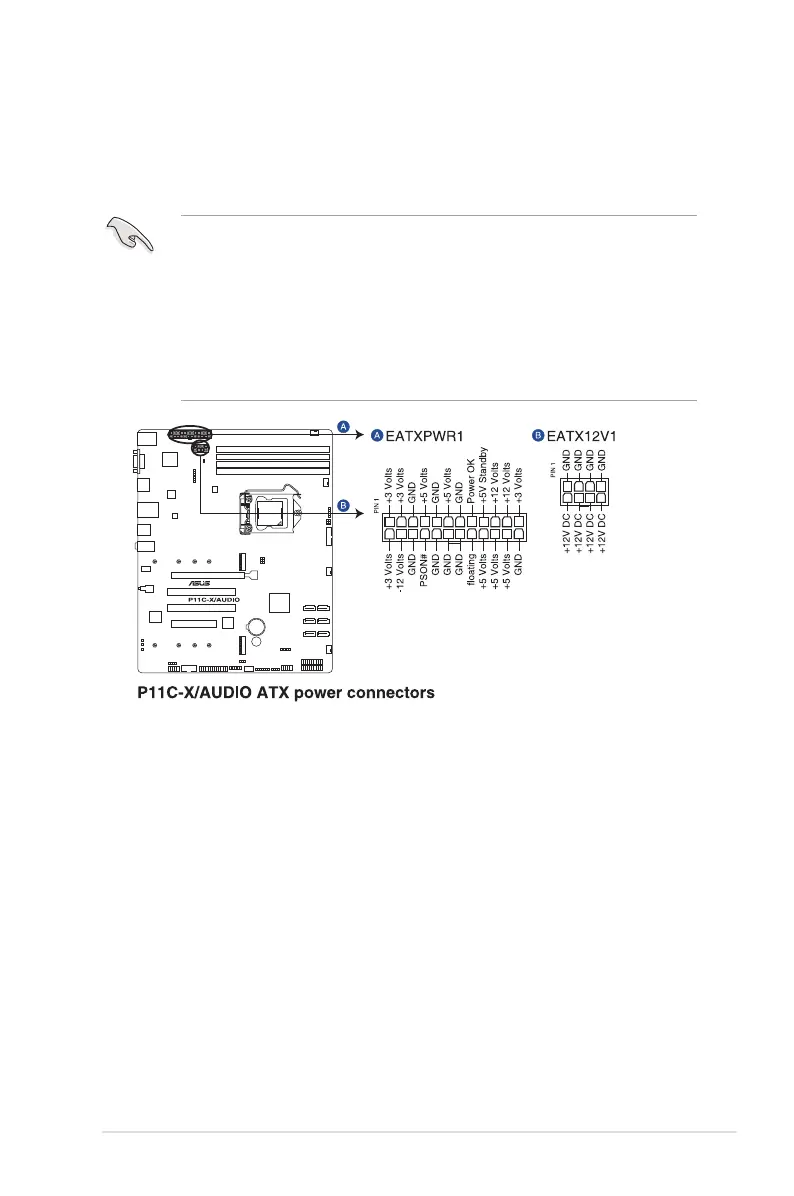

9. ATXpowerconnectors(24-pinEATXPWR1;8-pinEATX12V1)
These connectors are for the ATX power supply plugs. The power supply plugs are
designed to t these connectors in only one orientation. Find the proper orientation and
push down rmly until the connectors completely t.

Asus TS100-E10-PI4 Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
LAN controller	Intel I210-AT, Intel I219LM
Audio chip	Realtek ALC887-VD2
Processor socket	LGA 1151 (Socket H4)
Motherboard chipset	Intel C242
Compatible processor series	Intel Celeron, Intel Core i3, Intel Pentium, Intel Xeon
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Maximum internal memory	128 GB
Supported memory clock speeds	2400, 2666 MHz
PCI slots	2
PCI Express x8 slots	1
PCI Express slots version	3.0
Chassis type	Full-Tower
Cooling type	-
Product type	Workstation barebone
Product color	Black, Metallic
LED indicators	HDD, Power, Reset
HDMI ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of SATA III connectors	6
RAID levels	0, 1, 5, 10
Storage drive interface	M.2, PCI Express, Serial ATA
Storage drive sizes supported	2.5, 3.5 \
Supported storage drive types	HDD
On-board graphics card model	Aspeed AST2510
Power supply	500 W
AC input voltage	220 - 240 V
Power supply type	Internal power supply unit
AC input frequency	50 - 60 Hz
AC adapter output current	7 A
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	423 mm
Width	190 mm
Height	435 mm
