Asus TS100-E10-PI4 User Manual

Chapter 3: Motherboard Information
3-14

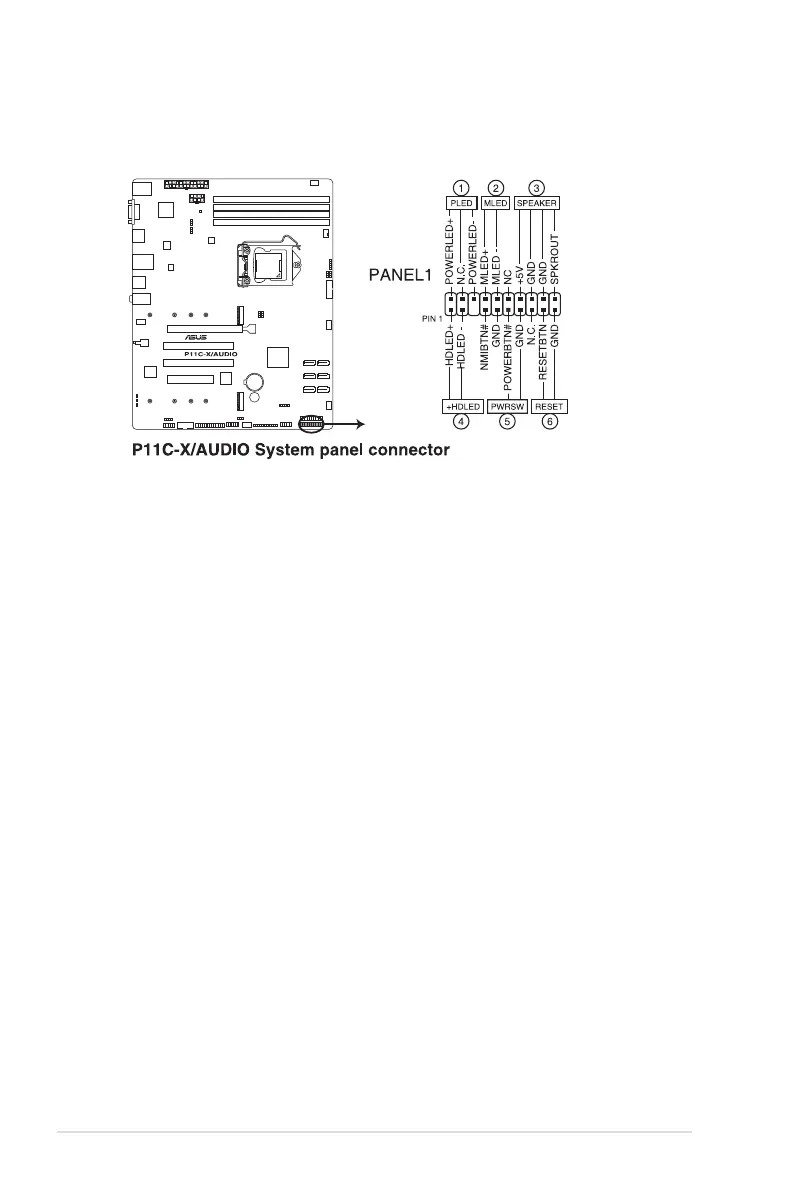

10. Systempanelconnector(20-1pinPANEL1)
This connector supports several chassis-mounted functions.
1. SystempowerLED(3-pinPLED)
This 3-pin connector is for the system power LED. Connect the chassis power
LED cable to this connector. The system power LED lights up when you turn on
the system power, and blinks when the system is in sleep mode.
2. Message LED (2-pin MLED)
This 2-pin connector is for the message LED cable that connects to the front
message LED. The LED lights up when the SIO detects that the CPU temperature
has reached 95°C.
3. Systemwarningspeaker(4-pinSPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The
speaker allows you to hear system beeps and warnings.
4. HarddiskdriveactivityLED(2-pin+HDLED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED
cable to this connector. The IDE LED lights up or ashes when data is read from
or written to the HDD.
5. Powerbutton/soft-offbutton(2-pinPWRSW)
This connector is for the system power button. Pressing the power button turns
the system on or puts the system in sleep or soft-off mode depending on the
BIOS settings. Pressing the power switch for more than four seconds while the
system is ON turns the system OFF.
6. Resetbutton(2-pinRESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot
without turning off the system power.

Asus TS100-E10-PI4 Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
LAN controller	Intel I210-AT, Intel I219LM
Audio chip	Realtek ALC887-VD2
Processor socket	LGA 1151 (Socket H4)
Motherboard chipset	Intel C242
Compatible processor series	Intel Celeron, Intel Core i3, Intel Pentium, Intel Xeon
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Maximum internal memory	128 GB
Supported memory clock speeds	2400, 2666 MHz
PCI slots	2
PCI Express x8 slots	1
PCI Express slots version	3.0
Chassis type	Full-Tower
Cooling type	-
Product type	Workstation barebone
Product color	Black, Metallic
LED indicators	HDD, Power, Reset
HDMI ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of SATA III connectors	6
RAID levels	0, 1, 5, 10
Storage drive interface	M.2, PCI Express, Serial ATA
Storage drive sizes supported	2.5, 3.5 \
Supported storage drive types	HDD
On-board graphics card model	Aspeed AST2510
Power supply	500 W
AC input voltage	220 - 240 V
Power supply type	Internal power supply unit
AC input frequency	50 - 60 Hz
AC adapter output current	7 A
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	423 mm
Width	190 mm
Height	435 mm
