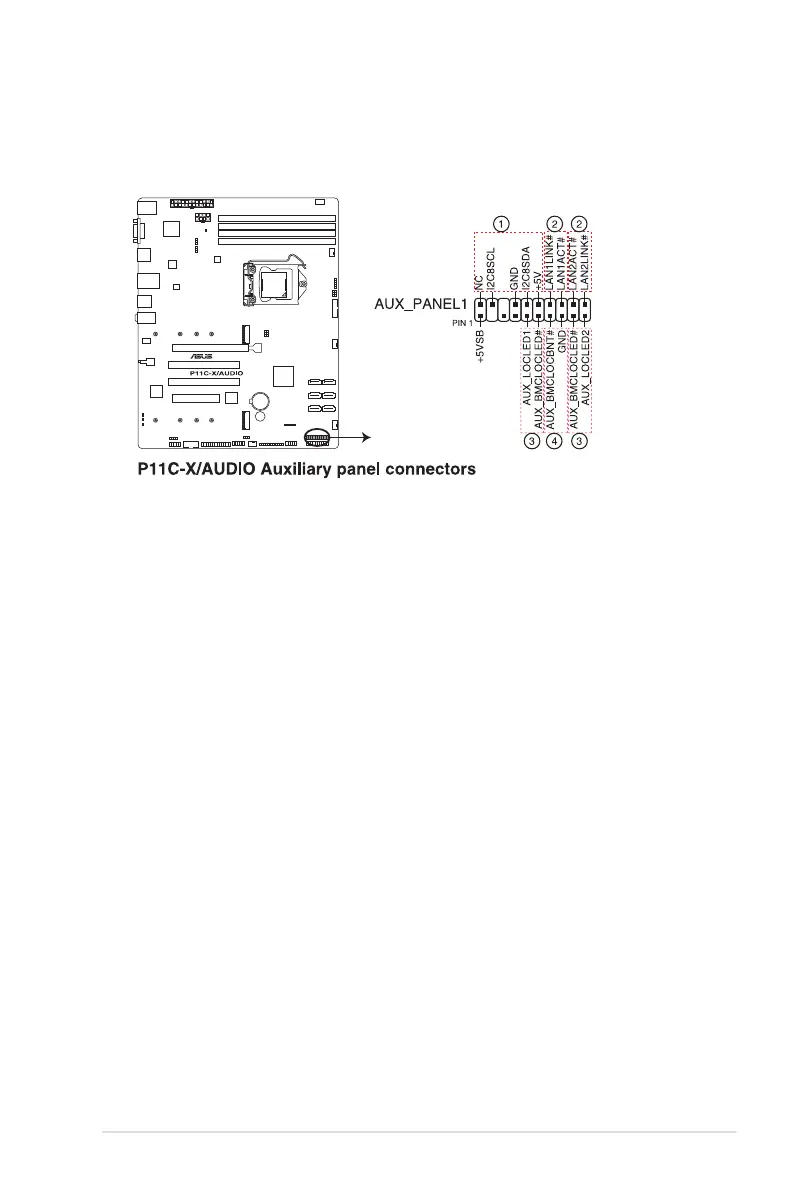

11. Auxiliarypanelconnector(20-2pinAUX_PANEL1)
This connector is for additional front panel features including front panel SMB, locator
LED and switch, chassis intrusion, and LAN LEDs.
1. FrontpanelSMB(6-1pinFPSMB)
These leads connect the front panel SMBus cable.
2. LANactivityLED(2-pinLAN1_LED,LAN2_LED)
These leads are for the Gigabit LAN activity LEDs on the front panel.
3. LocatorLED(2-pinLOCATORLED1,LOCATORLED2)
These leads are for the locator LED1 and LED2 on the front panel. Connect the
Locator LED cables to these 2-pin connector. The LEDs will light up when the
Locator button is pressed.
4. LocatorButton/Switch(2-pinLOCATORBTN)
These leads are for the locator button on the front panel. This button queries the
state of the system locator.
