Chapter 3: Motherboard Information
3-16

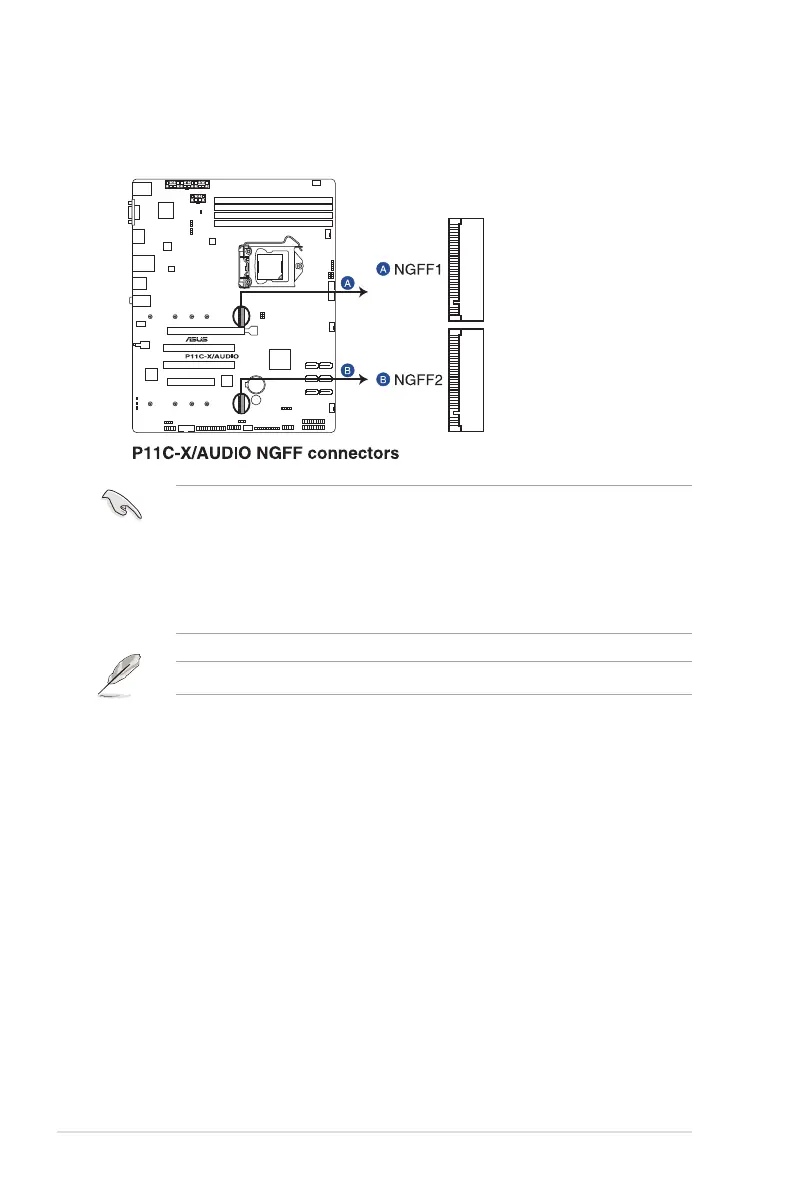

12. M.2(NGFF)connector(NGFF1-2)
These connectors allow you to install M.2 devices.
The M.2 (NGFF) device is purchased separately.
• NGFF1 supports PCIe 3.0 x2 and SATA mode M Key design and type 2242 / 2260 /
2280 / 22110 PCIe and SATA storage devices.
• NGFF2 supports SATA mode M Key design and type 2242 / 2260 / 2280 / 22110
SATA storage devices.
• When the M.2 (NGFF1) is operating in SATA mode, SATA5 will be disabled.
• When the M.2 (NGFF2) is operating in SATA mode, SATA6 will be disabled.
