ASUS TS100-E10-PI4
3-17

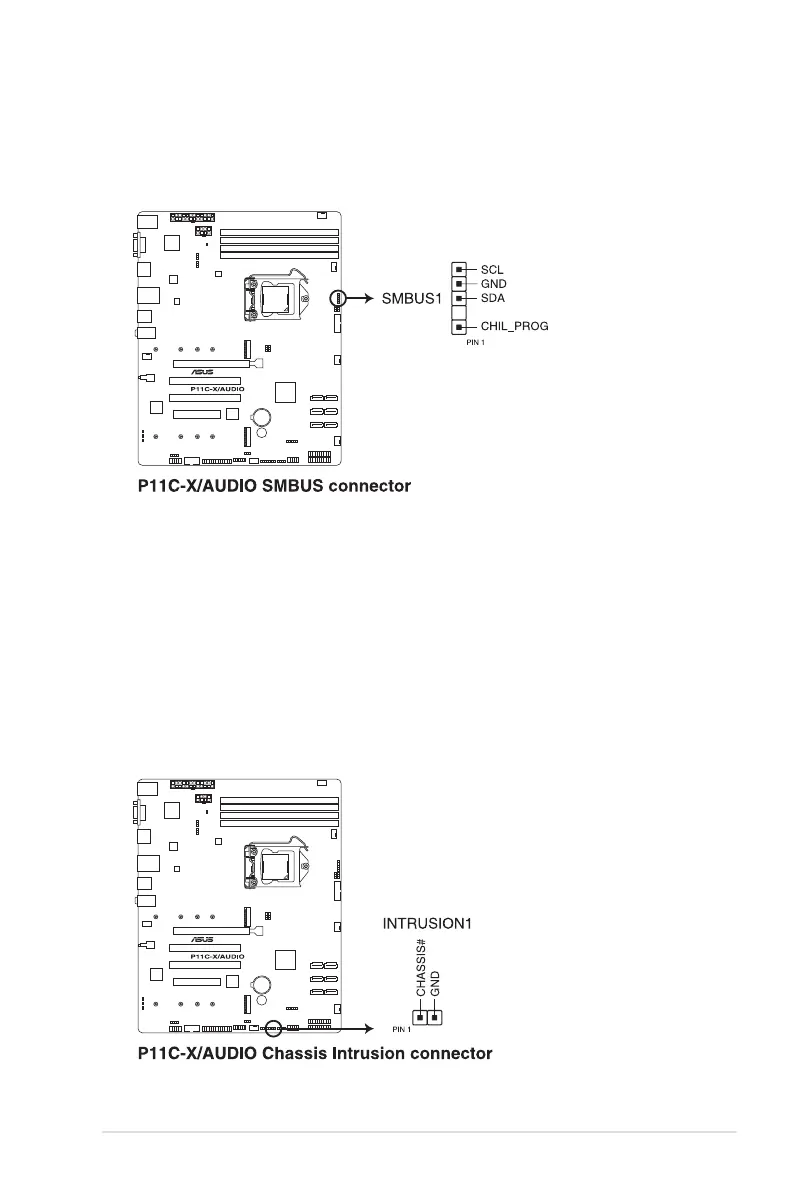

13. SystemManagementBus(SMBUS)connector(5-1pinSMBUS1)
This connector controls the system and power management-related tasks. This
connector processes the messages to and from devices rather than tripping the
individual control lines.
14. Chassis intrusion connector (2-pin INTRUSION1)
This connector is for a chassis-mounted intrusion detection sensor or switch. Connect
one end of the chassis intrusion sensor or switch cable to this connector. The chassis
intrusion sensor or switch sends a high-level signal to this connector when a chassis
component is removed or replaced. The signal is then generated as a chassis intrusion
event.
By default, the pin labeled “Chassis Signal” and “Ground” are shorted with a jumper
cap. Remove the jumper caps only when you intend to use the chassis intrusion
detection feature.

Asus TS100-E10-PI4 Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
LAN controller	Intel I210-AT, Intel I219LM
Audio chip	Realtek ALC887-VD2
Processor socket	LGA 1151 (Socket H4)
Motherboard chipset	Intel C242
Compatible processor series	Intel Celeron, Intel Core i3, Intel Pentium, Intel Xeon
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Maximum internal memory	128 GB
Supported memory clock speeds	2400, 2666 MHz
PCI slots	2
PCI Express x8 slots	1
PCI Express slots version	3.0
Chassis type	Full-Tower
Cooling type	-
Product type	Workstation barebone
Product color	Black, Metallic
LED indicators	HDD, Power, Reset
HDMI ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of SATA III connectors	6
RAID levels	0, 1, 5, 10
Storage drive interface	M.2, PCI Express, Serial ATA
Storage drive sizes supported	2.5, 3.5 \
Supported storage drive types	HDD
On-board graphics card model	Aspeed AST2510
Power supply	500 W
AC input voltage	220 - 240 V
Power supply type	Internal power supply unit
AC input frequency	50 - 60 Hz
AC adapter output current	7 A
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	423 mm
Width	190 mm
Height	435 mm
