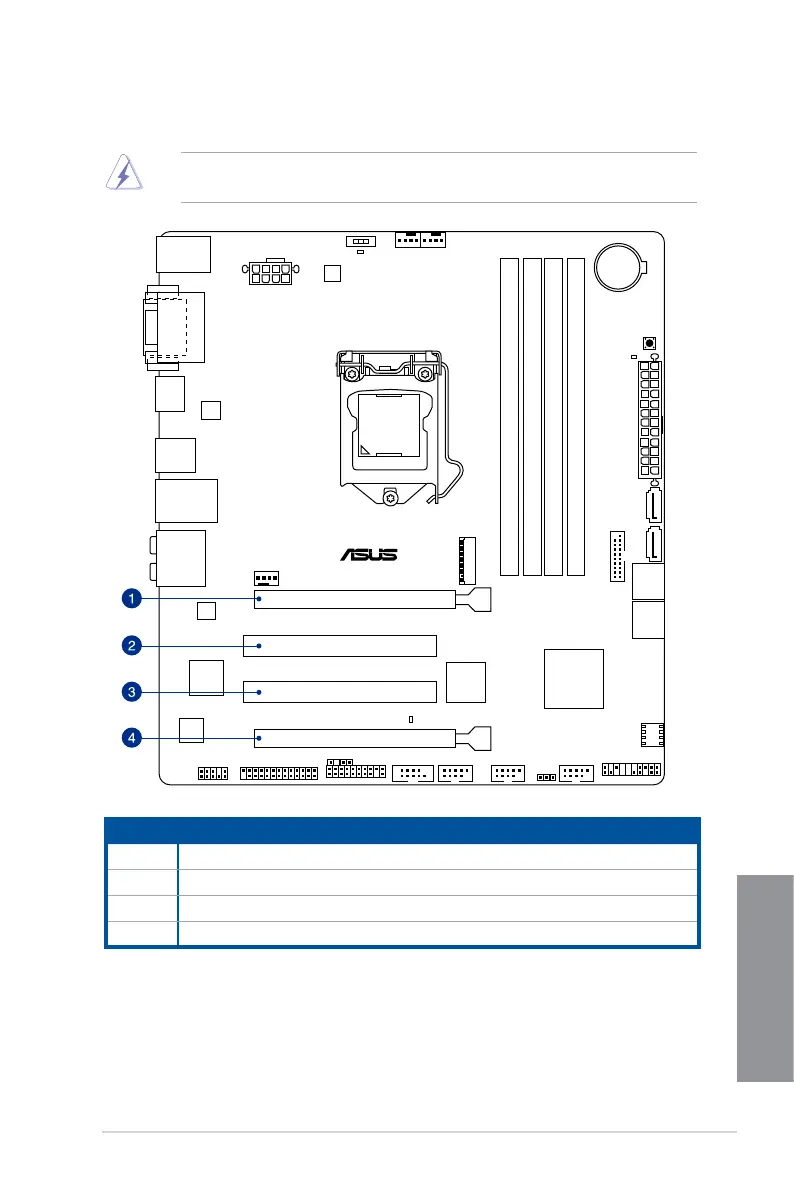

1.2.5 Expansion slots
Unplug the power cord before adding or removing expansion cards. Failure to do so may
cause you physical injury and damage motherboard components.
Slot No. Slot Description
1 PCIe 3.0/2.0 x16_1 slot (at x16 mode)
2
PCI slot 1
3
PCI slot 2
4
PCIe 2.0 x16_2 slot (max. at x4 mode, compatible with PCIe x1 and x4 devices)
Z97M-PLUS
PCIEX16_1
PCI1
PCI2
PCIEX16_2
