ASUS Z97M-PLUS

3-11

Chapter 3

3.3 My Favorites

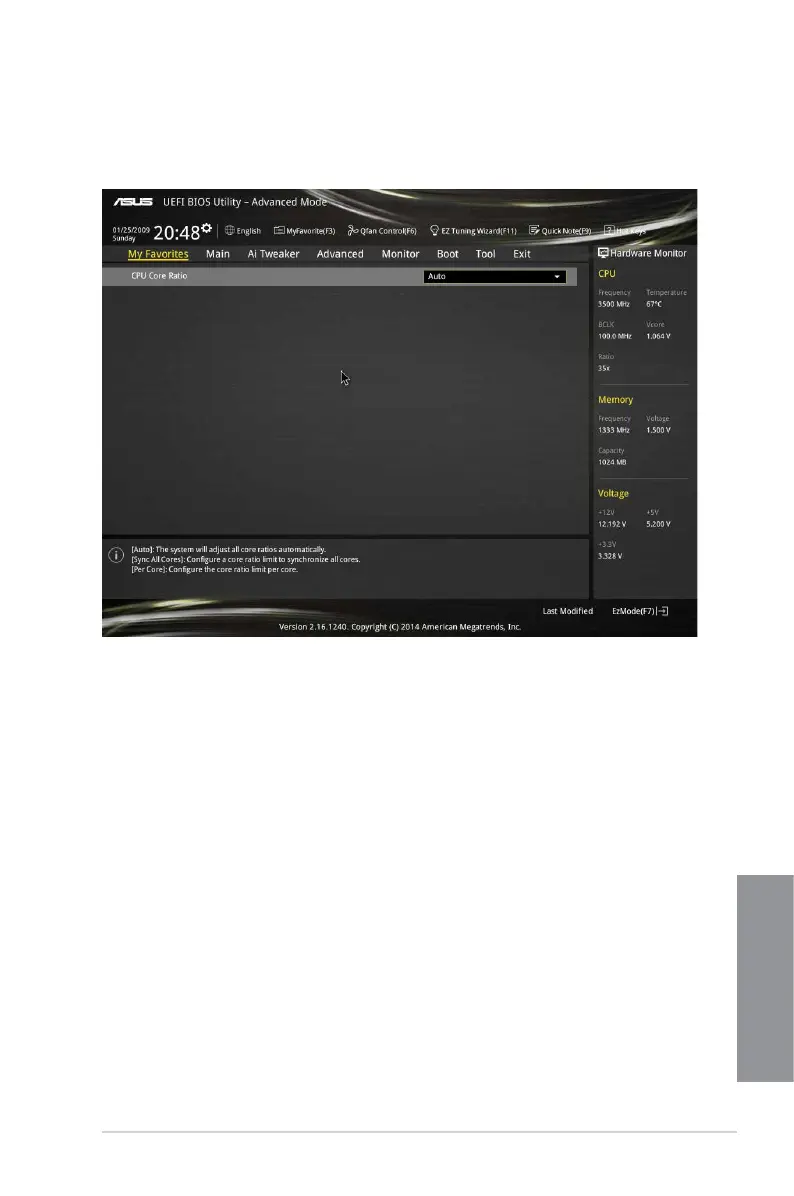

MyFavorites is your personal space where you can easily save and access your favorite

BIOS items.
