2.2 Motherboard rear and audio connections
2.2.1 Rear I/O connection
* and **: Refer to the tables on the next page for LAN port LEDs, and audio port definitions.

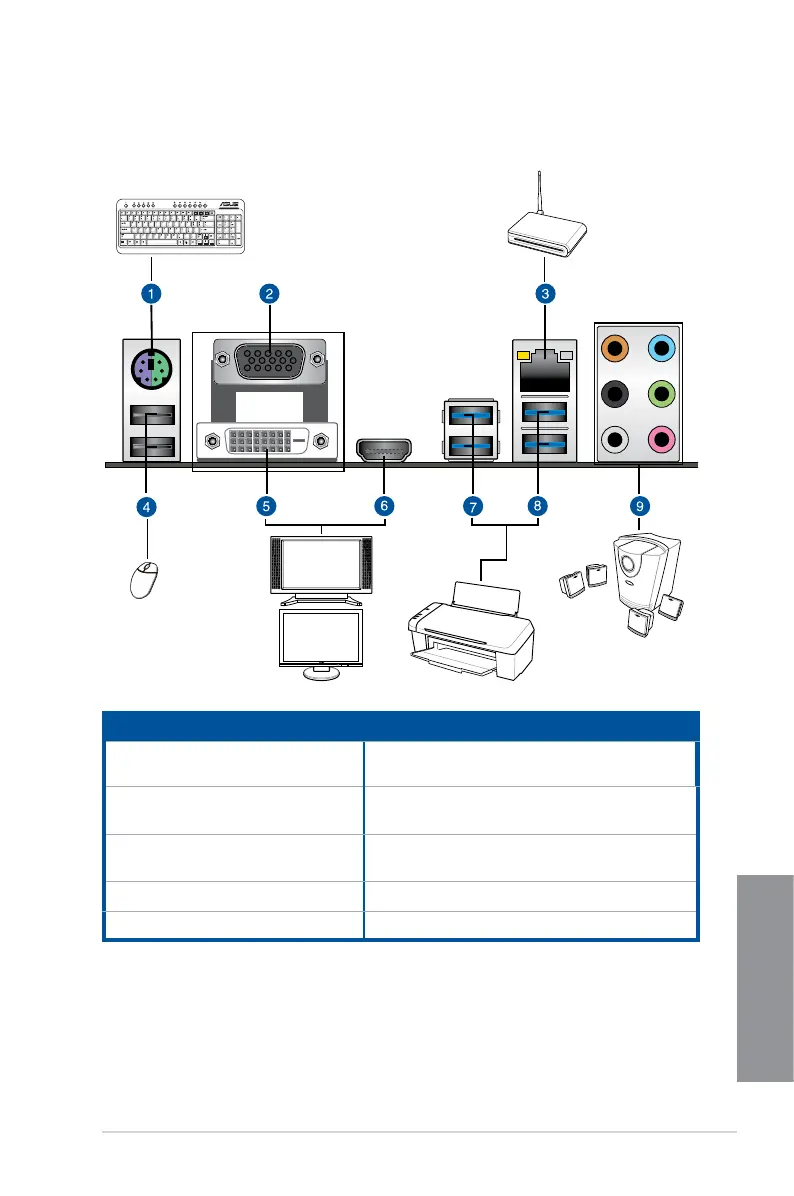

Rear panel connectors
1. PS/2 keyboard / mouse combo
port
6. HDMI port
2. Video Graphics Adapter (VGA)
port
7. Intel USB 3.0 ports 5-6, support ASUS
USB 3.0 Boost
3. Intel
®
LAN port*
8. Intel USB 3.0 ports 3-4, support ASUS
USB 3.0 Boost
4. USB 2.0 ports 7 and 8 9. Audio I/O ports**
5. DVI-D port 10.
