ASUS Z97M-PLUS

2-13

Chapter 2

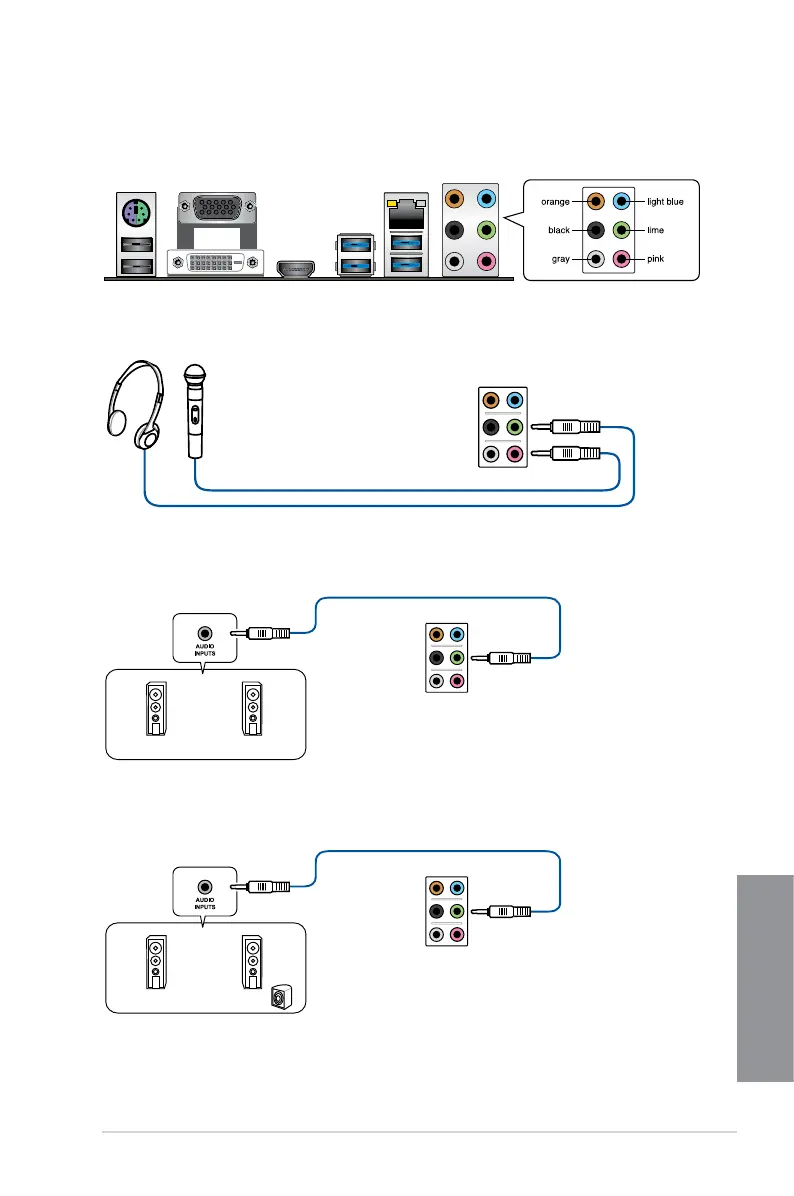

Connect to Headphone and Mic

Connect to Stereo Speakers

Connect to 2.1 channel Speakers

2.2.2 Audio I/O connections

Audio I/O ports
