ASUS Z97M-PLUS
1-17
Chapter 1
5. Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect
the S/PDIF Out module cable to this connector, then install the module to a slot
opening at the back of the system chassis.
The S/PDIF module is purchased separately.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.

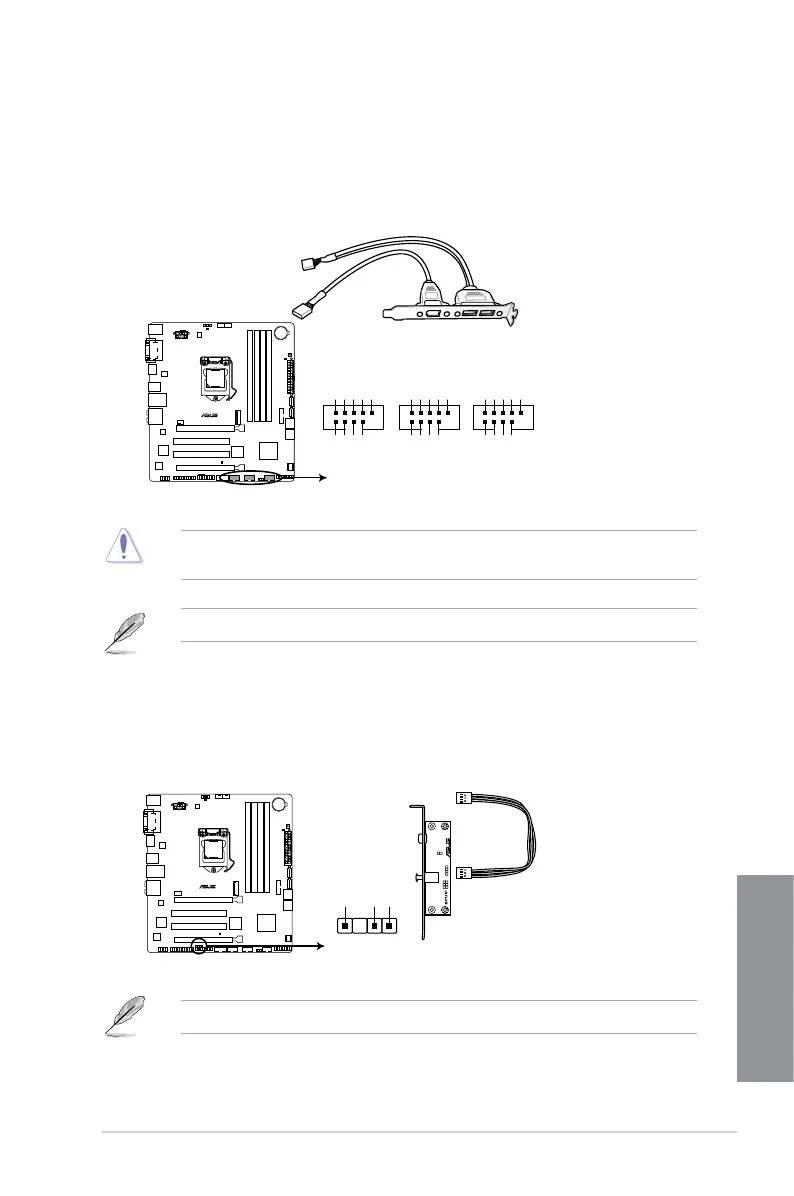

4. USB 2.0 connectors (10-1 pin USB910; USB1112; USB1314)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specication that supports up to
480 Mbps connection speed.
Z97M-PLUS
Z97M-PLUS USB2.0 connectors
USB+5V USB_P11- USB_P11+ GND NC
USB+5V
USB_P12-
USB_P12+
GND
USB1112
PIN 1
USB+5V USB_P9- USB_P9+ GND NC
USB+5V
USB_P10-
USB_P10+
GND
USB910
PIN 1
USB+5V USB_P13- USB_P13+ GND NC
USB+5V
USB_P14-
USB_P14+
GND
USB1314
PIN 1
Z97M-PLUS
Z97M-PLUS Digital audio connector
SPDIF_OUT
+5V SPDIFOUT GND
