12 HIRO Installation Manual GDO-12V1
WARNING! The opener must not be used with
a door incorporating a wicket door.
AVERTISSEMENT! Ce moteur ne doit pas être
utilisé avec une porte de garage avec portillon

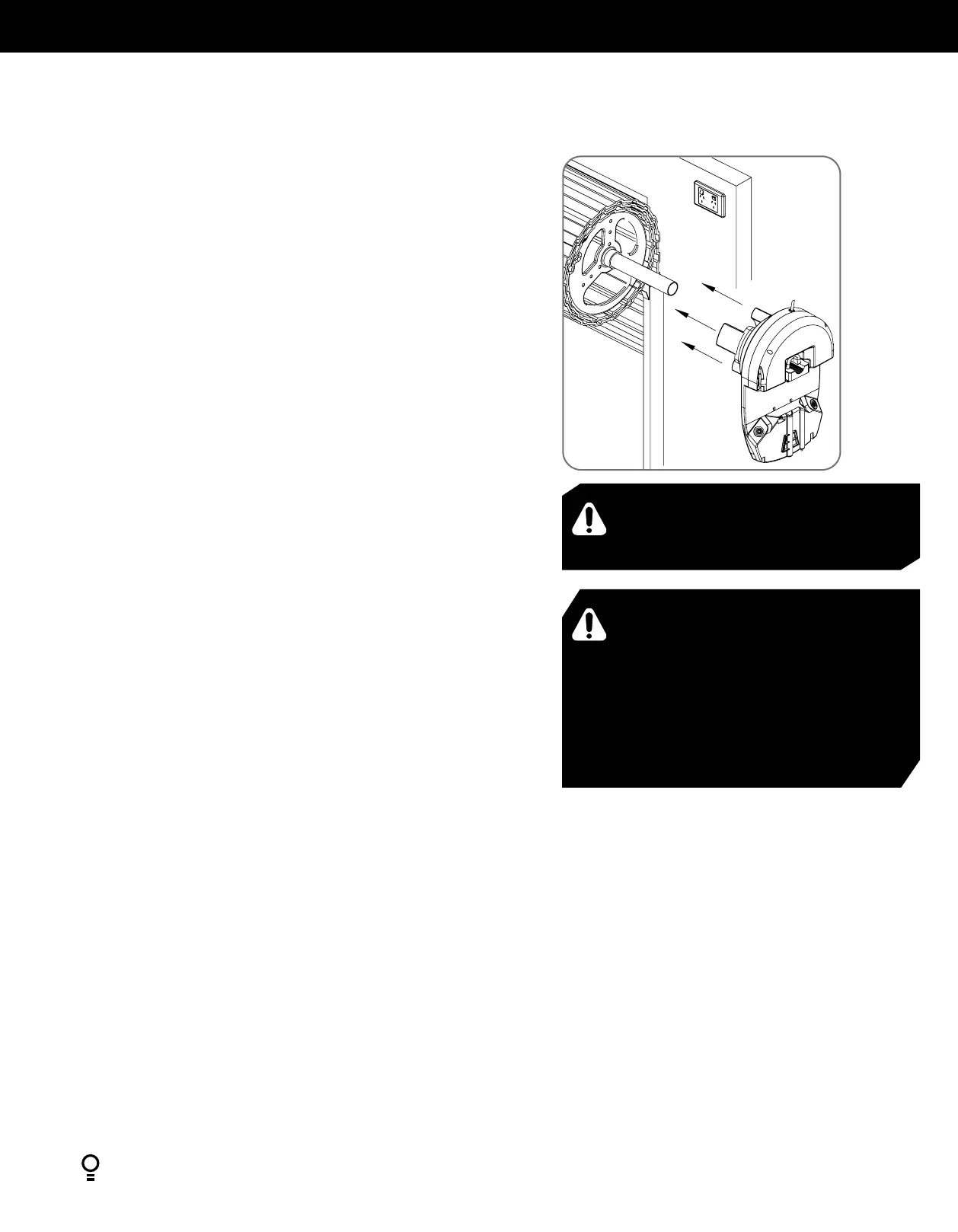

Fig 6.3
6.3.1 Mounting The Opener
a. Check the drive gear rotates freely, by pulling the string handle down (there will
be a click) to disengage opener. Then move the forks from side to side by hand
b. Slide the opener over the door axle and into the drum of the door (Fig. 6.3).
c. Ensure the internal gear is pushed in as far as possible (without interfering
with the door curtain) and that the door drum’s wheel spokes are completely
between the opener’s drive forks.
d. Evenly tighten the supplied nuts on the clamp assembly of the opener to a
torque setting of 40Nm.
e. Remove the safety rope and door stand or prop.
f. Connect the power cord to a suitable powerpoint, but DO NOT switch on.
g. Secure the power cord away from any moving object (e.g the door) with the
cable clip supplied.
h. With the opener still disengaged, pull the door up and down to make sure it
runs freely.
NOTE - If the manual release handle is more than 6 feet from floor level when the
opener is installed, extend the handle to a height less than 6 feet.
6.3 Fitting the Opener
WARNING! Garage doors, door springs,
brackets and their hardware are under extreme
tension and can cause serious personal injury.
Do not attempt any garage door adjustment.
AVERTISSEMENT! Les portes de garage, les
ressorts de porte, les pattes de fixation et les
éléments matériels sont soumis à une tension
extrême et peuvent blesser gravement. Ne
tentez pas de régler la porte de garage par vous-
même.
