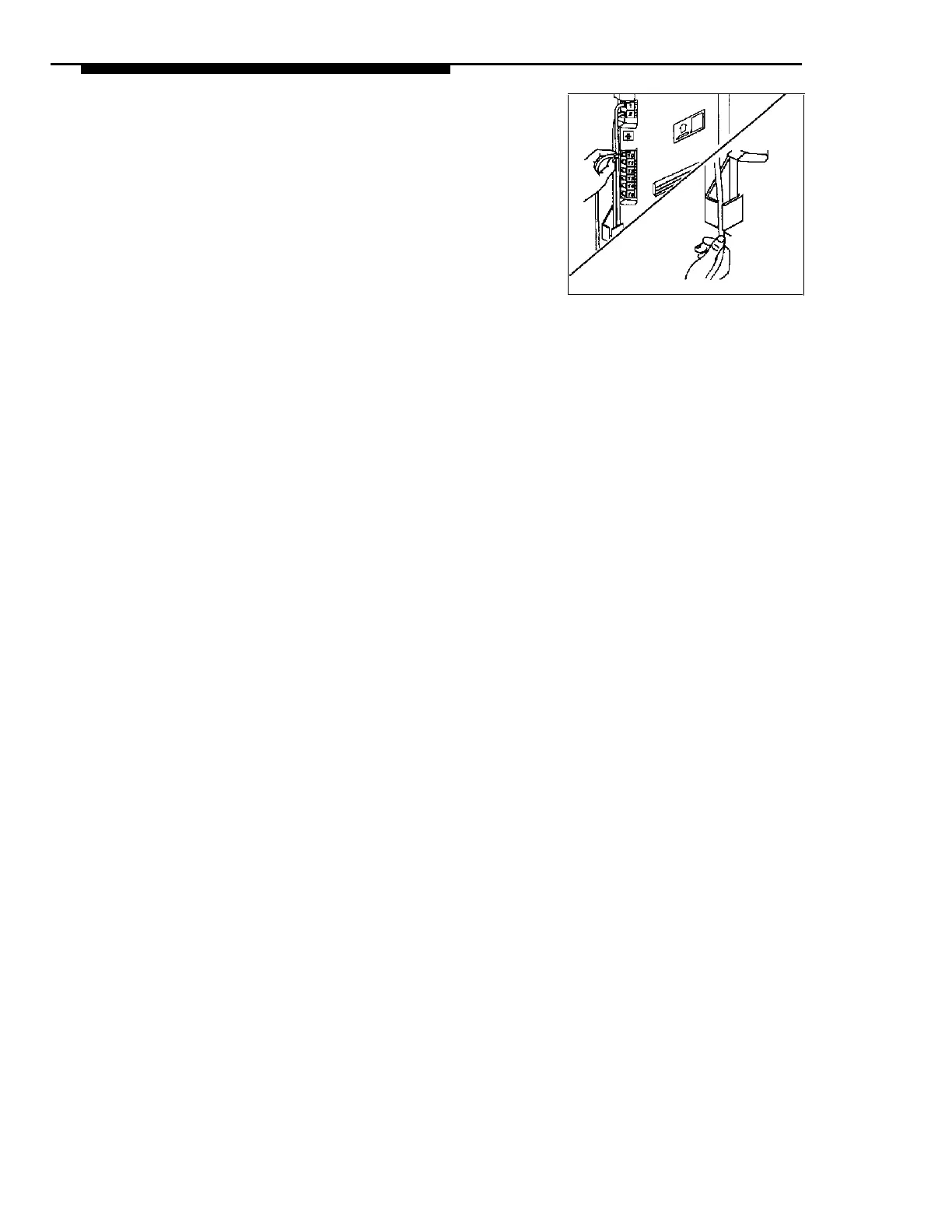

Connect modular telephone cords to 206 module
extension jacks, stating at the top extension
jack on the first module.
Route each cord through the hook on the lower
front of the module.
Leave at least 2 feet (0.6 meters) of slack in the
cords (for future maintenance so you can
easily reconnect cords after replacing system
modules).
Connect the free end of each modular telephone
cord to the modular connecting blocks for
system extensions.
