Lights
Each line button, each calling feature button, and some Auto Dial buttons have a
green light and a red light. The meaning of these lights varies, depending on
whether a button is used to access an outside line, a calling feature, or an
intercom Auto Dial number.
Table 3-1 shows the meanings of the various light patterns for each possible
button assignment.

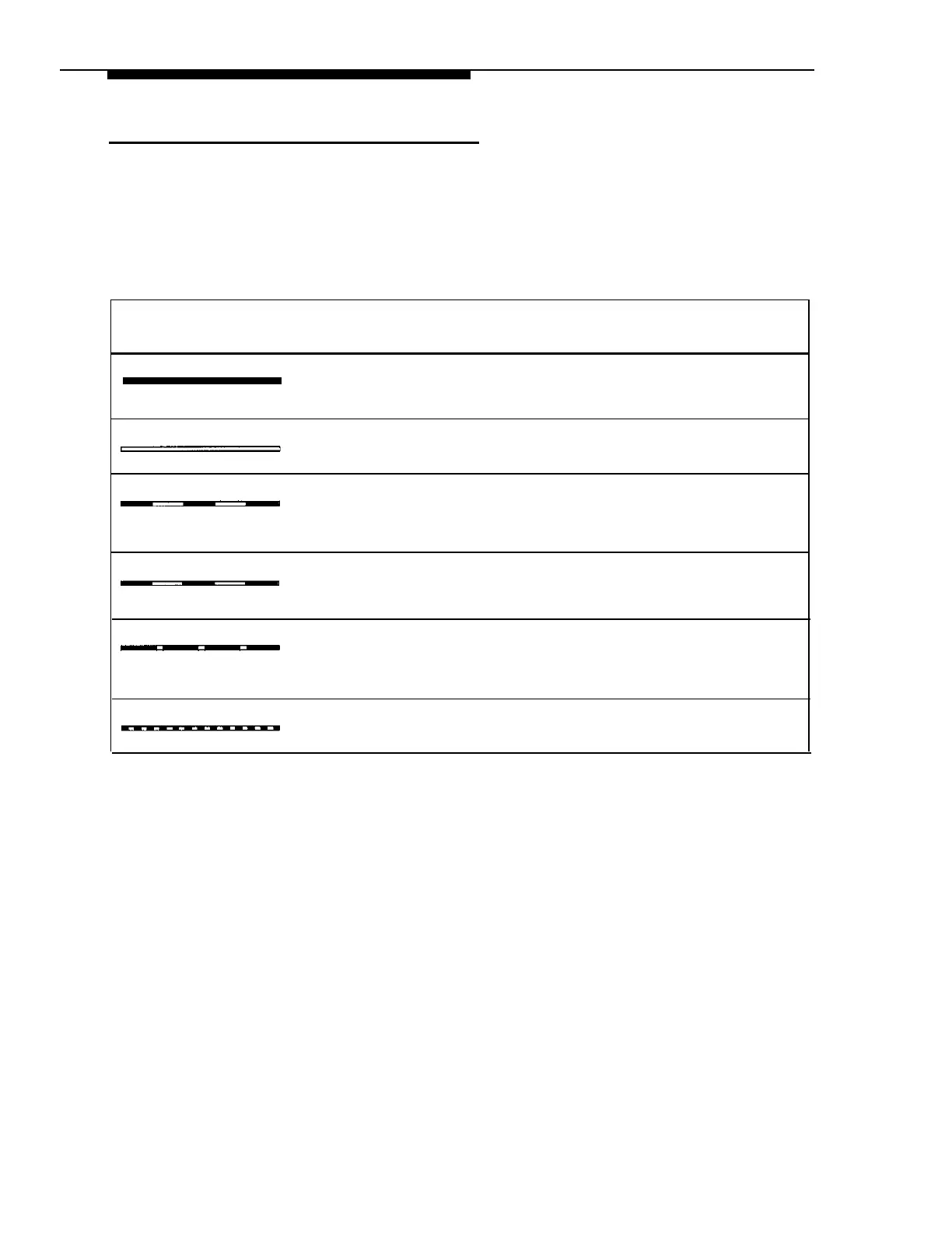

Table 3-1. Light Patterns for System Phones
Light Pattern
Calling
Intercom Auto Dial
Line Button
Feature
Button
Button
Steady On
Line is busy. Green means your
Green
Red means the extension
phone is busy; red means someone
means
is busy (making or
at another extension is busy on the
feature
answering a call).
line.
is on
Off
Line is idle (not being used).
Feature
Extension is idle (not
is off
(steady off)
being used).
Flash
A call is ringing on the line. Green
—
—
flash means a call is ringing at your
(long on, long off)
extension. Red flash means a call is
ringing on the line, but not at your
extension.
Alternating Red/Green Flash Appears at both extensions in a
—
—
(red on, green on, red on,
joined call and at each extension
connected in a conference call.
green on)
Wink A call on the line is on hold. Green
—
—
wink means the call is on hold at your
(long on, short off) extension. Red wink means the call is
on hold at another extension. (Anyone
who has the line can retrieve the call.)
Flutter
Green flutter means a conference call
—
—
on your line is on hold.
(short on, short off)
3-4
Learning About Telephones
