Wall Mounting
If you wall mount a display phone, the display may be
difficult to read, so desk mounting is recommended.
(Wall mounting instructions apply to corded MLS-model
phones only. To wall mount an MLC-6 phone, follow the
instructions in the booklet provided with the phone.)

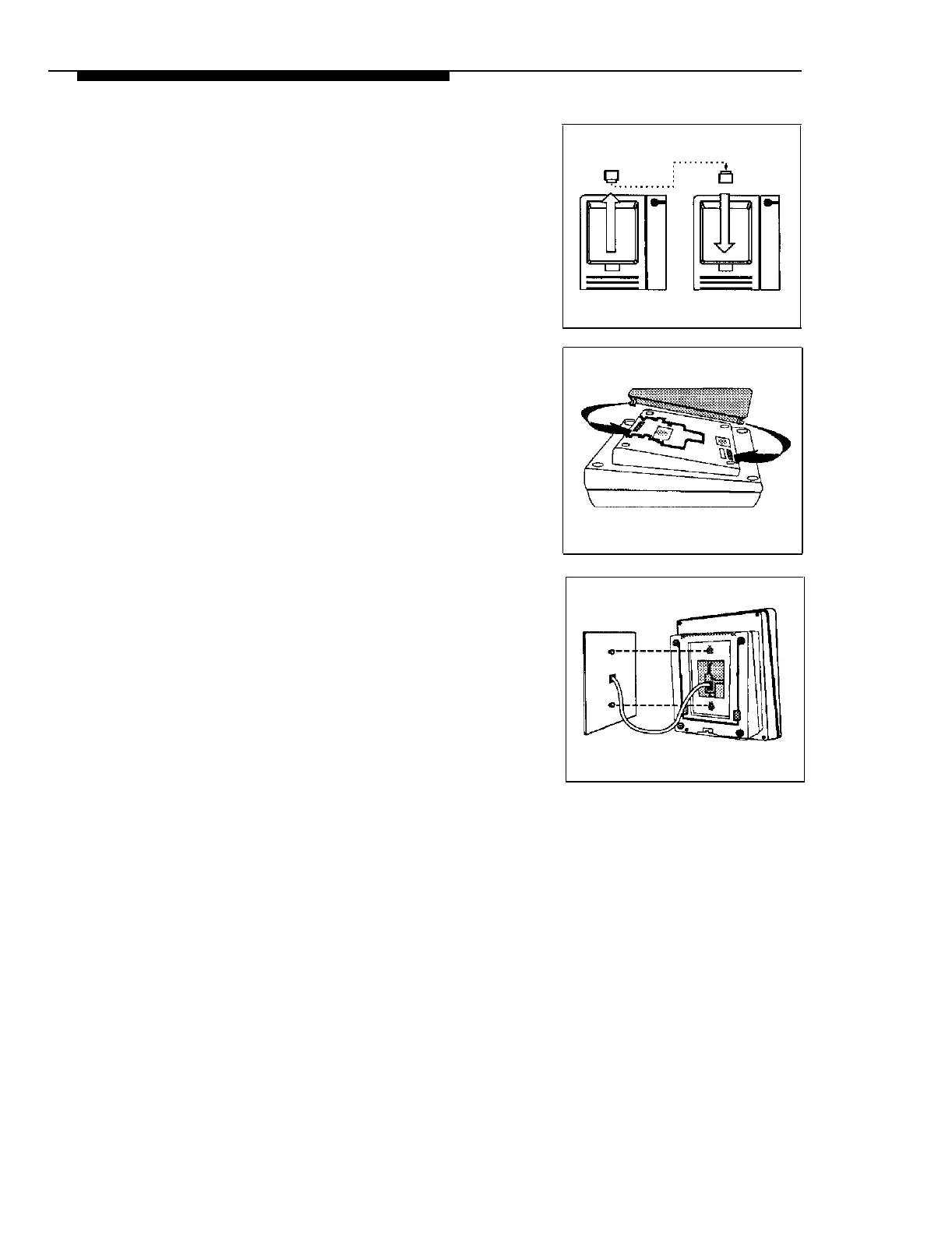

Wall Mounting Phones with Separate Stands
1
Reverse the plastic hook that sits in the earpiece part
of the handset cradle.
2
A)
B)
C)
3
A)
B)
C)
To install the telephone stand, gently place the
phone upside down with the low end of the
phone to your right.
Insert the tab on the narrow end of the stand into
the left slot on the base of the phone.
Insert the other tab into the right slot, pushing
the stand down and slightly inward until the
tab locks into place.
Insert the phone cord through the center of the
stand and plug it into the jack on the base of
the phone, then plug the other end into the
modular wall jack.
Mount the phone on the wall plate using the
screw keyholes on the base of the stand. For
proper mounting, the wall plate must be an
AT&T 630B connecting block.
Connect the handset cord as described in “Desk
Mounting,” Step 1A, and label the button
sheet as in Step 3B of that procedure.
Wall Mounting Phones with Fixed Stands
Make sure the telephone cord is unplugged from the
bottom of the phone before proceeding.
1
A)
Reverse the plastic hook that sits in the earpiece
part of the handset cradle.
B)
Gently place the phone upside down.
C-14
Installation
