Atari Centipede - Page 37

Centipede
Schematics,
Self-Test
Label &
Manuals—
see parts
list on
following page
NOTICE
TO
ALL PERSONS
RECEIVING THIS
DRAWING
CONFIDENTIAL:
Reproduction
forbidden
without the
spe-
cific written
permission
of Atari,
Inc.,
Sunnyvale,
CA. This
drawing is
only
conditionally
issued,
and neither
receipt
nor
possession
thereof
confers
or
transfers
any right in,
or li-
cense
to use, the
subject
matter of
the drawing
or any
de
sign
or technical
information
shown
thereon,
nor any
right
to reproduce
this
drawing or
any
part thereof.
Except
for
manufacture
by
vendors of
Atari, Inc.,
and for
manufacture
under the
corporation’s
written
license,
no right
to repro
duce
this drawing
is
granted
or the
subject
matter thereof
unless
by written
agreement with
or
written
permission
from the
corporation.
037399-01
(Cab't
Assy.)
178034-024
(T-Molding)
A037456-01
(Pwr. Harness)
037443-02
(Coin
Deflctr,
A037450-01
(Interl. Sw./Brkt
007882-02
(Interl.
Sw.
Cvr.
Reg./Audio II PCB
see
Figure
034536-02
(Vibra. Damper)
Power
Supply
Assy.—
see
Figure
22
037243-01
(Plate)
035745-02
(PCB
Retnr.)
034536-03
(Vibra.
Damper)
Game
PCB—
see Figure
21
75-07017
(PCB
Spacer)
78-24012
(PCB Tie
Wrap)
A037433-01
(Main
Harness)
A037453-01,
A037454-01 or
A037455-01
(Power
Cord)
A037470-01
(On/Off Sw./Mtg.
Plate)
009992-01
(On/Off Sw. Cvr.)

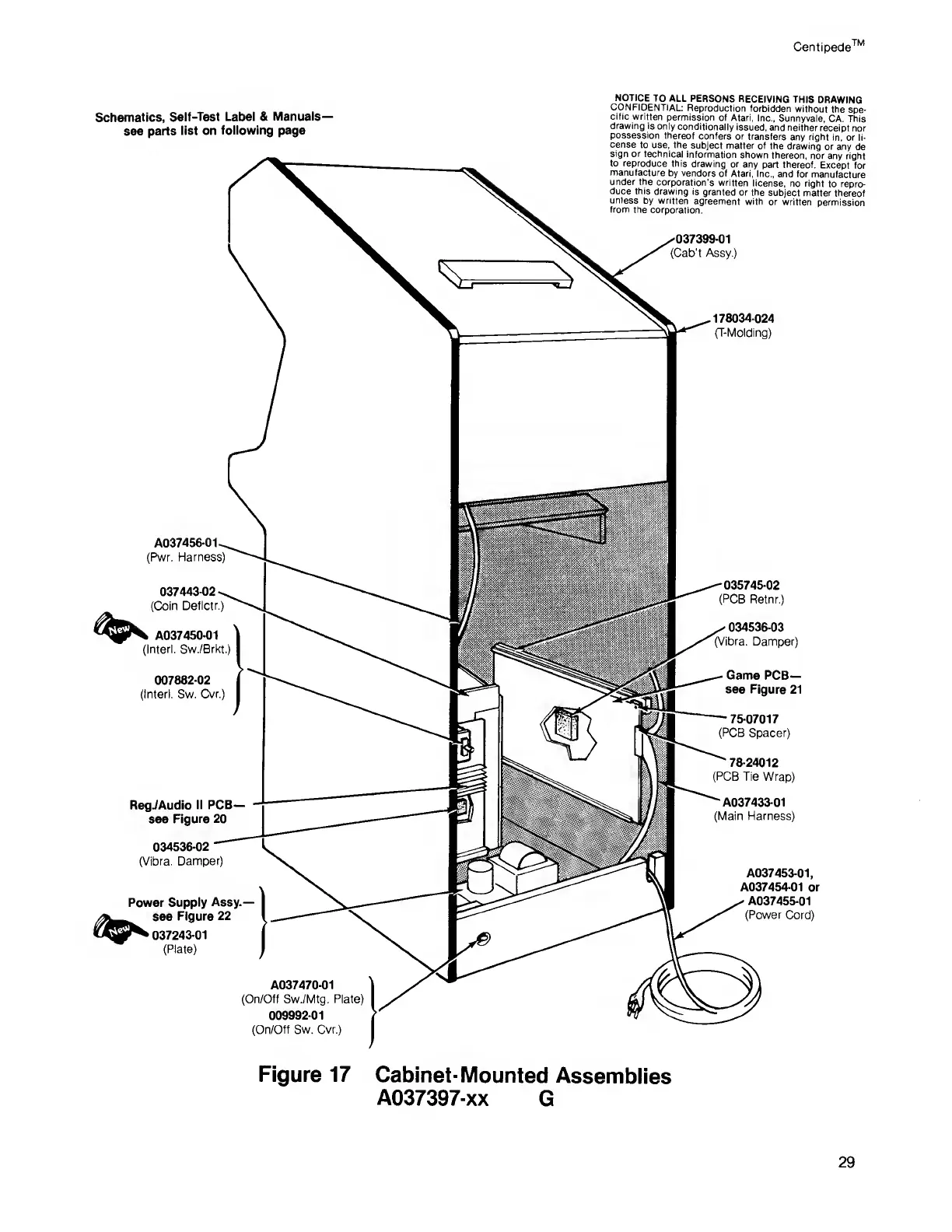

Figure 17
Cabinet-
Mounted
Assemblies
A037397-XX
G
29
