Centipede
Mini-Trak Ball Assy,
see
Figure 19
78-6900402
(Foam
Tape)
CAUTION
75-991
ONO
(Stamped
Nut)
160013-001
(Leaf Sw./
Button
Holder)
178030-001
(Pushbtn. Assy.)
Players may receive
an electric shock
if
this control
panel is not
properly
grounded!
After servicing
any parts on
the panel, check
that the ground
wire is
firmly attached
to the metal
tab on the
inside
of the control
panel. Only then
should
you lock
up the game.
A037408-01
(Ctrl. Pnl(
A037435-01
(Harness)
036895-01
(Sw.
Bezel)
NOTICE TO
ALL PERSONS RECEIVING
THIS DRAWING
CONFIDENTIAL: Reproduction forbidden without the
spe-
cific
written permission of Atari, Inc., Sunnyvale, CA. This
drawing
is only conditionally issued, and neither receipt nor
possession thereof confers or transfers any right in, or li-
cense to use, the subject matter of the drawing or any de-
sign or technical information shown thereon, nor any right
to reproduce this drawing or any part thereof. Except for
manufacture by vendors of Atari, Inc., and for manufacture
under the corporation’s written license, no right is granted
to reproduce this drawing or the subject matter thereof, un-
less by written agreement with or written permission from
the corporation.
62-039
(LED
Switch)

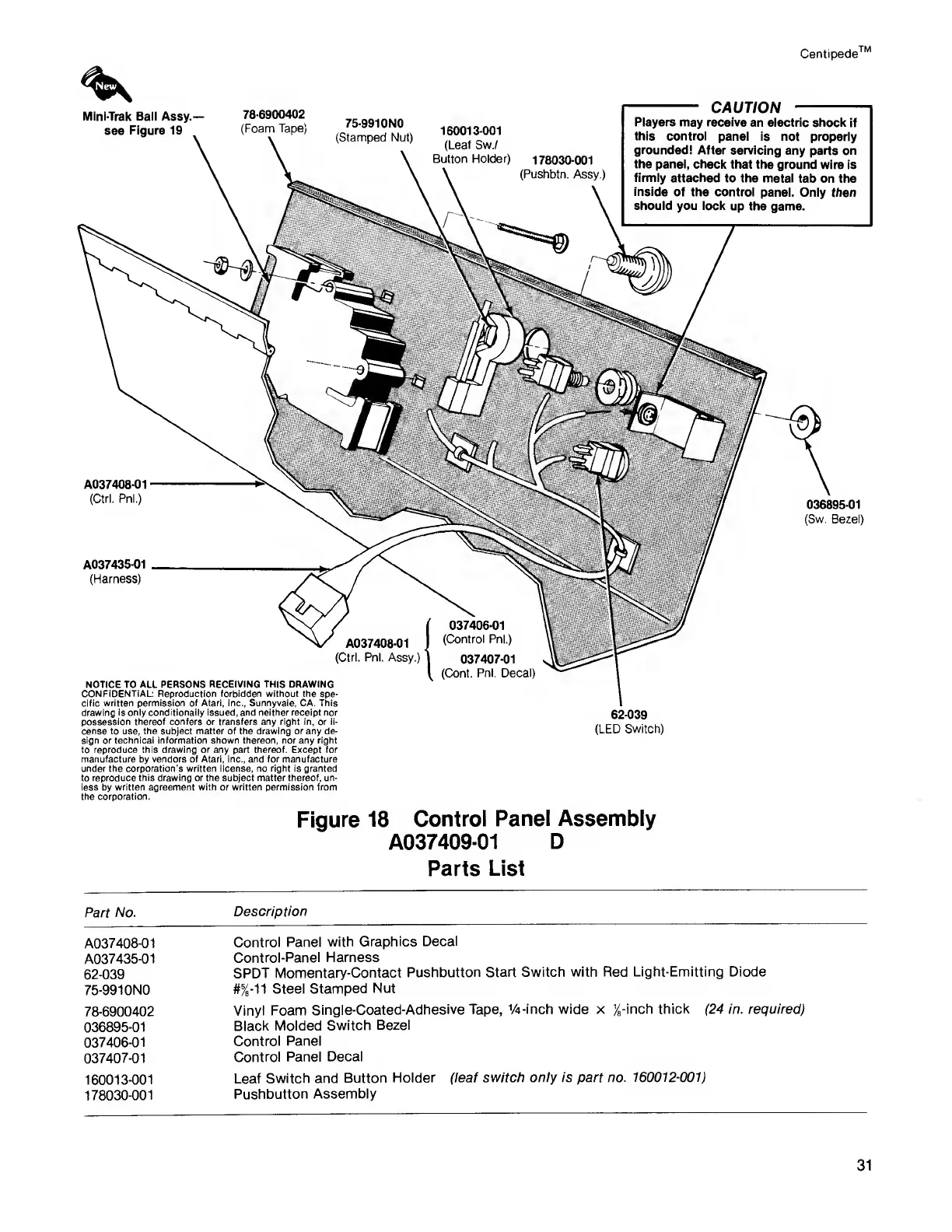

Figure
18
Control
Panel Assembly
A037409-01
D
Parts
List
Part
No.
Description
A037408-01
A037435-01
62-039
75-991
ONO
Control
Panel
with
Graphics
Decal
Control-Panel
Harness
SPDT
Momentary-Contact
Pushbutton Start Switch
with Red Light-Emitting Diode
#%-11 Steel
Stamped
Nut
78-6900402
Vinyl Foam
Single-Coated-Adhesive
Tape,
V4-inch wide x
yE
-inch thick
(24
in. required)
036895-01
Black Molded
Switch
Bezel
037406-01
Control Panel
037407-01
Control Panel
Decal
160013-001
Leaf
Switch and
Button
Holder (leaf
switch only is part no.
160012-001)
178030-001
Pushbutton
Assembly
31
