Atari Centipede - Figure; Fluorescent Light and Speaker Assembly; To All Persons; Sign or Technical Information

Centipede
NOTE
79-561
81 6P
(Wire Nut)
99-11003
(Starter)
99-11009
(Socket)
To
ensure
that
the
fluorescent tube
starts,
make sure
the ground
wire is
firmly
attached to
both the ballast
transformer
and the
steel lamp
bracket.
148001-001
(Speaker)
179035-001
(Lampholder)
70-304
(Tube)
99-11006
(Tab)
A037540-01
(Grd.
Wire)
142028-xxx
(Transformer)
037469-01
(Bracket)
NOTICE
TO ALL PERSONS
RECEIVING THIS DRAWING
CONFIDENTIAL: Reproduction
forbidden without the spe-
cific
written permission of
Atari, Inc., Sunnyvale, CA, This
drawing is only conditionally
issued, and
neither receipt nor
possession
thereof confers or transfers any
right in, or li-
cense to use, the
subject
matter of the drawing or any de-
sign
or technical
information shown thereon, nor
any right
to
reproduce this
drawing or any part
thereof.
Except
for
manufacture by
vendors of Atari, Inc., and
for manufacture
under the
corporation's written license, no
right is granted
to
reproduce
this drawing or the subject
matter thereof, un-
less by
written agreement
with or written
permission from
the
corporation.

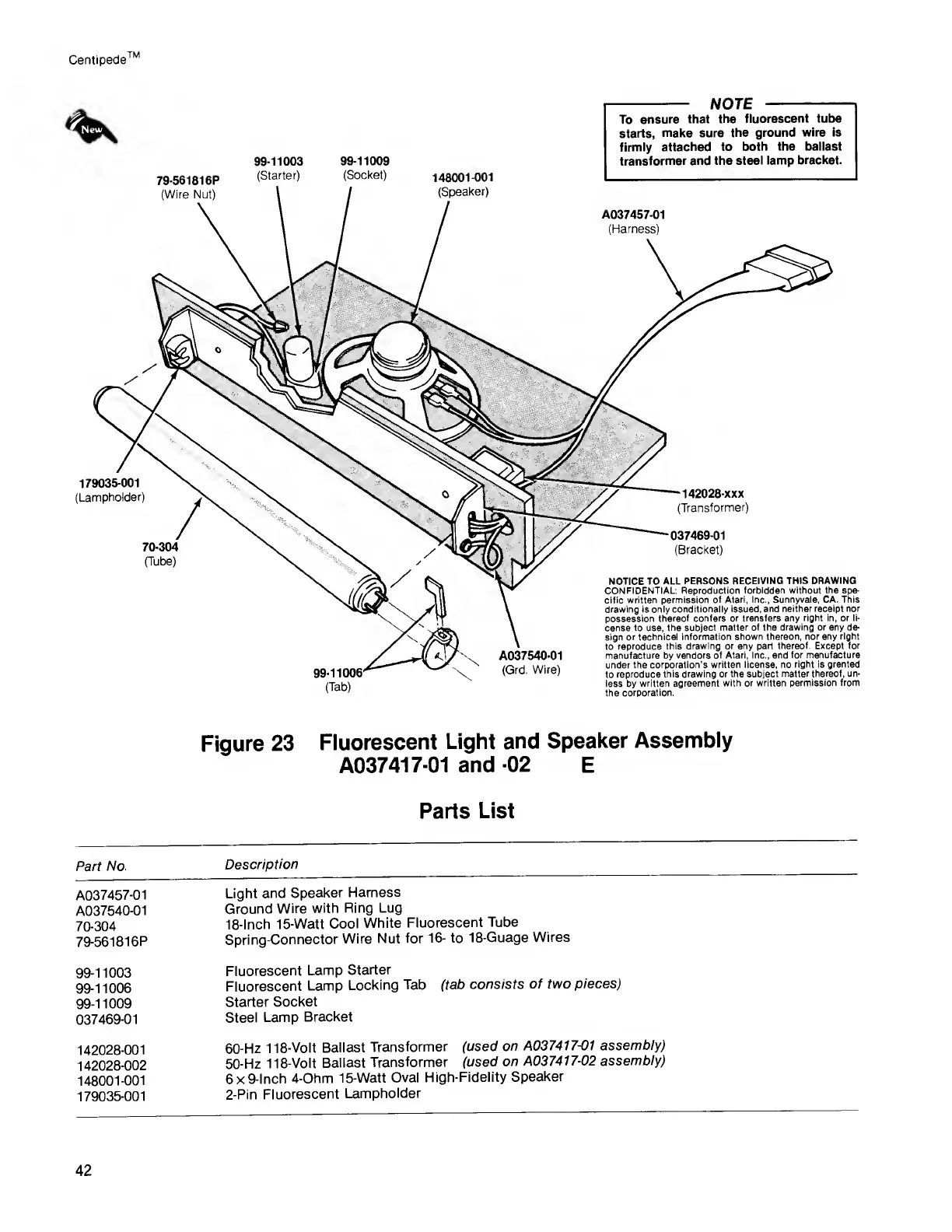

Figure
23
Fluorescent
Light and
Speaker
Assembly
A037417-01
and
-02
E
Parts
List
Part No.
Description
A037457-01
A037540-01
70-304
79-561 81
6P
Light
and
Speaker
Harness
Ground
Wire
with
Ring Lug
18-Inch
15-Watt
Cool
White
Fluorescent
Tube
Spring-Connector
Wire
Nut for
16-
to
18-Guage
Wires
99-11003
99-11006
99-11009
037469-01
Fluorescent
Lamp
Starter
Fluorescent
Lamp
Locking
Tab (tab
consists
of
two pieces)
Starter
Socket
Steel
Lamp
Bracket
142028-001
142028-002
148001-001
179035-001
60-
Hz
118-Volt
Ballast
Transformer
(used
on A037417-01
assembly)
50-Hz
118-Volt
Ballast
Transformer
(used
on A037417-02
assembly)
6 x
9-Inch
4-Ohm
15-Watt
Oval
High-Fidelity
Speaker
2-Pin
Fluorescent
Lampholder
42
